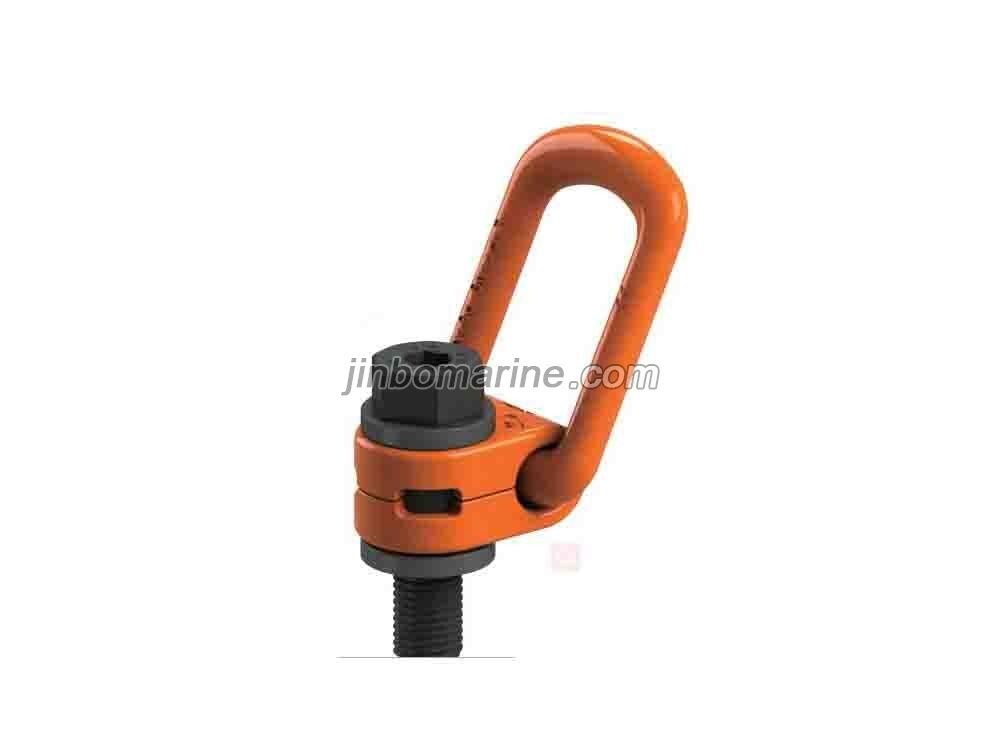

BLT081 Lifting Point With Unc Thread

1.360°rotation, 180°flip
The lifting ring can rotate with the direction of the force to adjust the angle of the force.
2.Alloy steel, electrostatic spraying
The bolts are made of alloy steel 42CrMo, the tensile strength before heat treatment is 1080Mpa, the mechanical properties are improved after the material is changed, and the surface of the ring is sprayed with electrostatic spraying after boiling to improve the surface anti-corrosion ability.
3.4 times safety factor
Different loads can be lifted in different directions, but 4 times safety factor is guaranteed
4.Easy to install
The inner space of the ring body is large and can be linked with various spreader hooks. The ring body has a built-in positioning circlip device, which is more convenient to control any angle and can be laid flat. Outer hexagonal + inner hexagonal design is convenient and quick to install
5.Complete specifications
The thread specifications are complete, the rated load range is wide (M8-M150, 0.3T-50T), and the thread size can be customized according to customer requirements.
