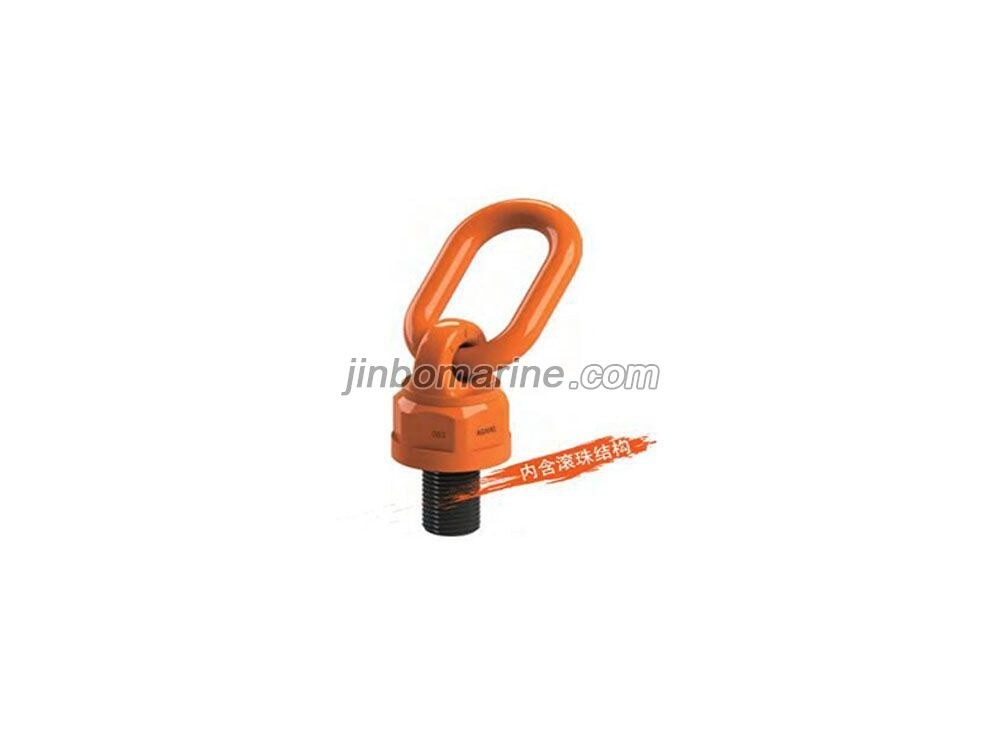

BLT083 Swivel Hoist Ring With Unc Thread
- Category:Chain Sling
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

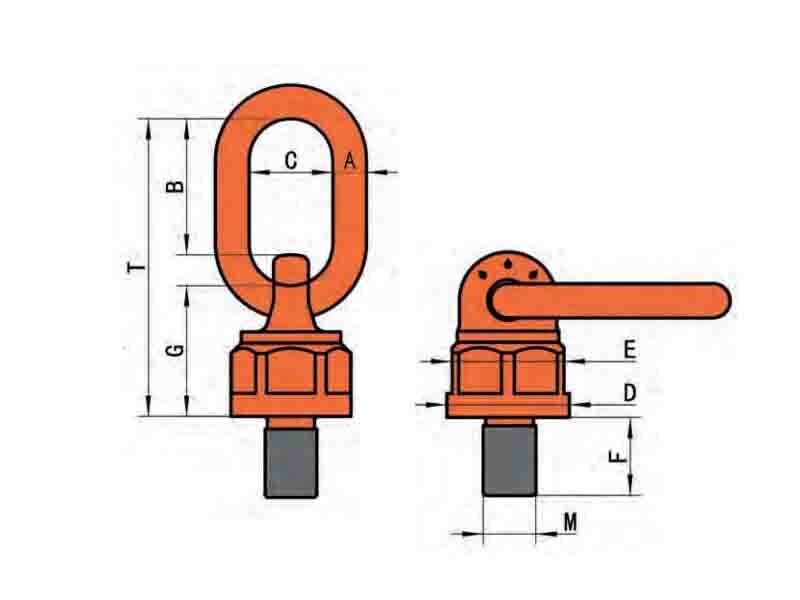

BLT083 Swivel Hoist Ring With Unc Thread Drawing
BLT083 Swivel Hoist Ring With Unc Thread Parameters
ITEM NO. | WLL/T | THREAD/TPI | WEIGHT/KG |
BLT083-5/16 | 0.3 | 5/16-18UNC | 0.5 |
BLT083-3/8 | 0.15 | 3/8-16UNC | 0.5 |
BLT083-1/2 | 0.6 | 1/2-13UNC | 0.5 |
BLT083-5/8 | 1.3 | 5/8-11UNC | 0.5 |
BLT083-3/4 | 1.8 | 3/4-10UNC | 2.5 |
BLT083-7/8 | 2 | 7/8-9UNC | 2.5 |
BLT083-1 | 3.5 | 1-8UNC | 2.5 |
BLT083-1 1/4 | 6 | 1 1/4-7UNC | 4 |
BLT083-1 1/2 | 8 | 1 1/2-6UNC | 4 |
BLT083-1 3/4 | 12 | 1 3/4-5UNC | 6 |
BLT083-2 | 14 | 2-4.5UNC | 11 |
BLT083-2 1/4 | 16 | 2 1/4-4.5UNC | 11 |
BLT083-1 1/2 | 16 | 2 1/2-4UNC | 11 |
BLT083-3 | 31.5 | 3-4UNC | 31 |
BLT083-3 1/2 | 40 | 3 1/2-4UNC | 34 |
BLT083-4 | 40 | 4-4UNC | 36.5 |
ITEM NO. | TECHNICAL PARAMETERS/MM | |||
F | A | B | C | |
BLT083-5/16 | 12 | 12 | 44 | 30 |
BLT083-3/8 | 12 | 12 | 44 | 30 |
BLT083-1/2 | 19 | 12 | 44 | 30 |
BLT083-5/8 | 31.8 | 12 | 44 | 30 |
BLT083-3/4 | 38.1 | 20 | 67 | 40 |
BLT083-7/8 | 38.1 | 20 | 67 | 40 |
BLT083-1 | 38.1 | 20 | 67 | 40 |
BLT083-1 1/4 | 50 | 22 | 95 | 51 |
BLT083-1 1/2 | 54 | 22 | 95 | 51 |
BLT083-1 3/4 | 68 | 26 | 108 | 65 |
BLT083-2 | 84 | 32 | 120 | 70 |
BLT083-2 1/4 | 84 | 32 | 120 | 70 |
BLT083-1 1/2 | 95 | 32 | 120 | 70 |
BLT083-3 | 108 | 46 | 136 | 90 |
BLT083-3 1/2 | 135 | 46 | 136 | 90 |
BLT083-4 | 135 | 46 | 136 | 90 |
ITEM NO. | TECHNICAL PARAMETERS/MM | |||
D | E | G | T | |
BLT083-5/16 | 40 | 37 | 46 | 98 |
BLT083-3/8 | 40 | 37 | 46 | 98 |
BLT083-1/2 | 40 | 37 | 46 | 98 |
BLT083-5/8 | 40 | 37 | 46 | 98 |
BLT083-3/4 | 70 | 64.3 | 75 | 160 |
BLT083-7/8 | 70 | 64.3 | 75 | 160 |
BLT083-1 | 70 | 64.3 | 75 | 160 |
BLT083-1 1/4 | 79 | 74 | 91 | 206 |
BLT083-1 1/2 | 79 | 74 | 91 | 206 |
BLT083-1 3/4 | 93 | 85 | 100.5 | 230.5 |
BLT083-2 | 105 | 95 | 132 | 278 |
BLT083-2 1/4 | 105 | 95 | 132 | 278 |
BLT083-1 1/2 | 105 | 95 | 132 | 278 |
BLT083-3 | 172 | 155 | 172 | 357 |
BLT083-3 1/2 | 172 | 155 | 172 | 357 |
BLT083-4 | 172 | 155 | 172 | 357 |
