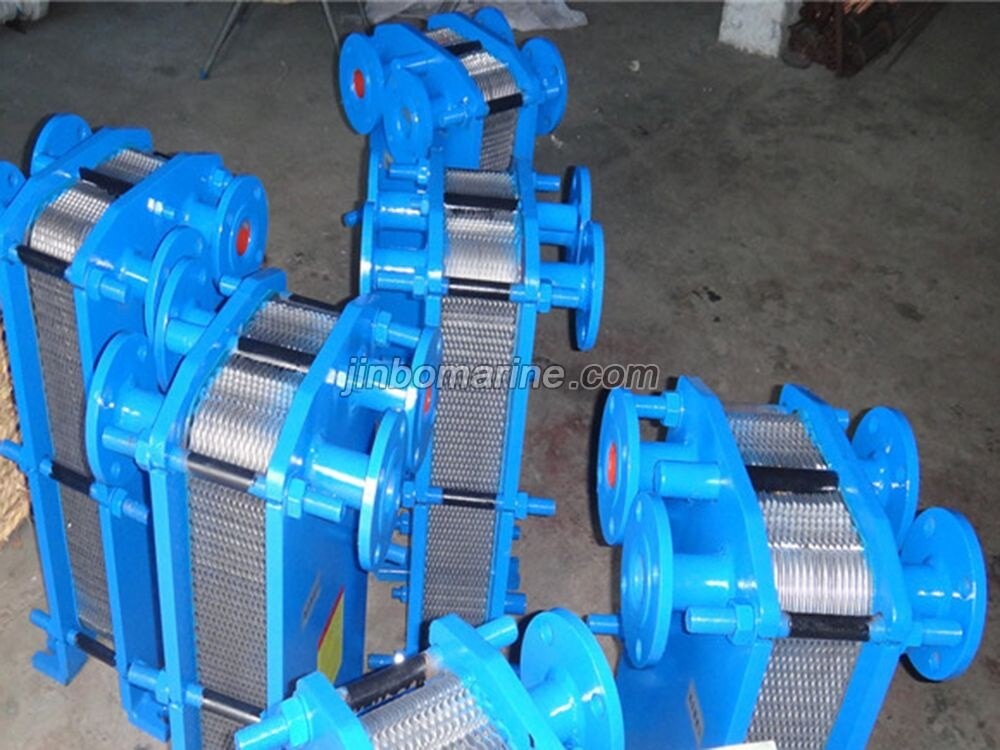

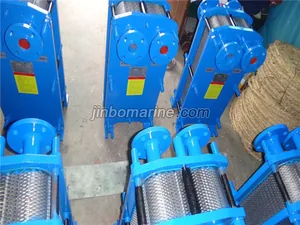

BR-0.05 Plate Heat Exchanger

The plate with a new pressurized diversion zone design greatly improves the heat transfer efficiency of plate, reduce dead angle, improve the scale of the plate. All the sealing gaskets are made of free form, which reduces the cost of operation and maintenance and is easy to maintain.

The dimension of the plate is mm3：495*166*0.5

The monolithic heat transfer area is M2 0.151

Plate spacing mm 3.1

The cross-sectional area of single channel is M2：0.000441

The maximum processing capacity was mm3/h：2-30

Flange diameter DNmm 25

The working temperature℃ ≤180

Working pressure Mpa：0.6,1.0

Angle hole diameter mm：32

No:	Total heat transfer area m2	Number of plates (sheets)	L(mm)	D	A	Weight(kg)
1	0.5	11	40	240	130	53
2	0.75	17	61	260	151	56
3	1	21	76	275	166	58
4	1.5	31	112	310	202	62
5	2	41	148	350	238	67
6	2.5	51	184	385	274	71
7	3	61	220	420	310	76
8	3.5	71	256	455	346	80
9	4	81	292	490	382	85
10	4.5	91	328	530	418	89
11	5	101	364	565	454	94
