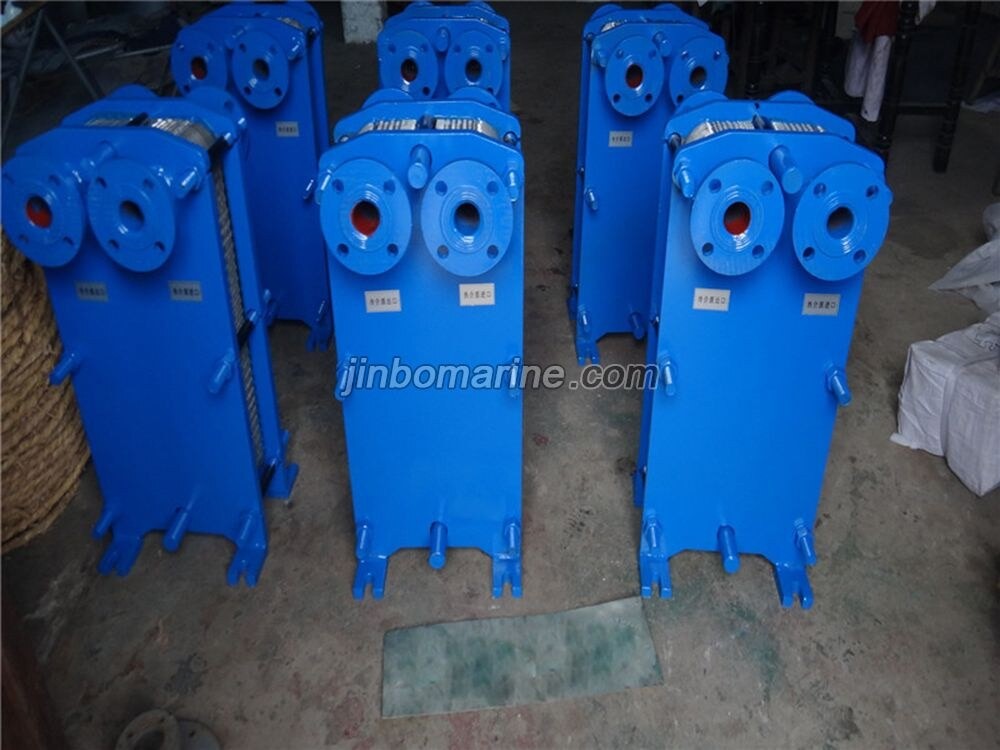

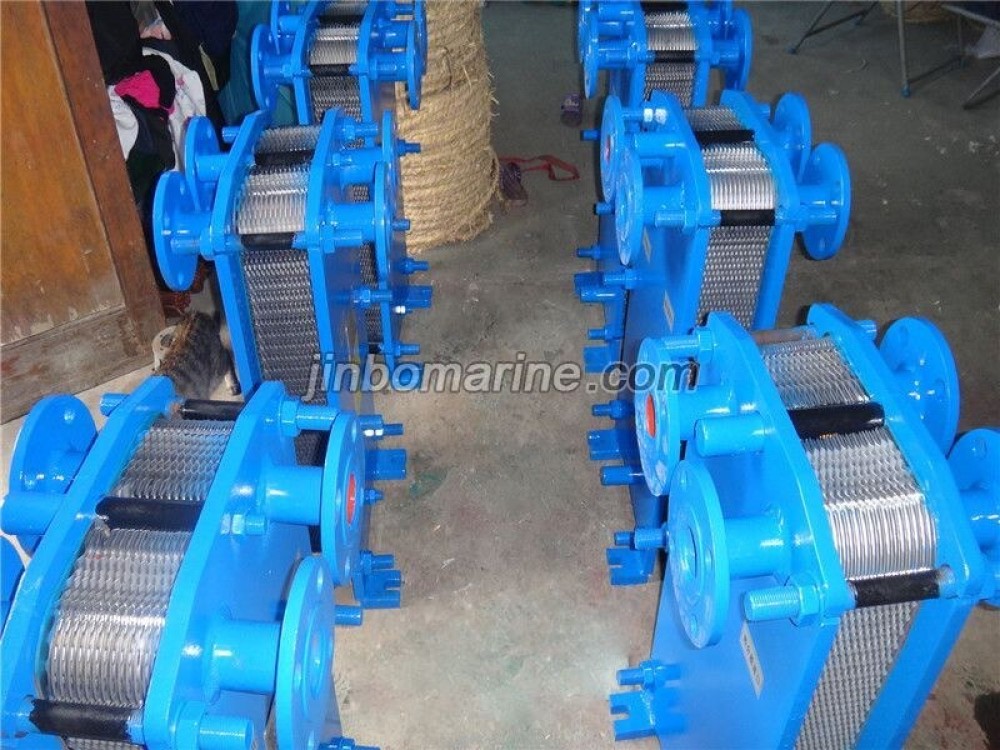

BR0.1 Plate Heat Exchanger For Lubricating Oil

The plate with a new pressurized diversion zone design greatly improves the heat transfer efficiency of plate, reduce dead angle, improve the scale of the plate. All the sealing gaskets are made of free form, which reduces the cost of operation and maintenance and is easy to maintain.

The dimension of the plate is mm3：612*266*0.5

The monolithic heat transfer area is M2：0.109

Plate spacing mm：3.5

The cross-sectional area of single channel is M2：0.000758

The maximum processing capacity was mm3/h：3-35

Flange diameter DNmm：40

The working temperature℃≤180

Working pressure Mpa：0.6,1.0

Angle hole diameter mm：50

B=280 C=604 F=108 E=156 B1=340 H=680 R=9
