BR1.0 Plate Heat Exchanger

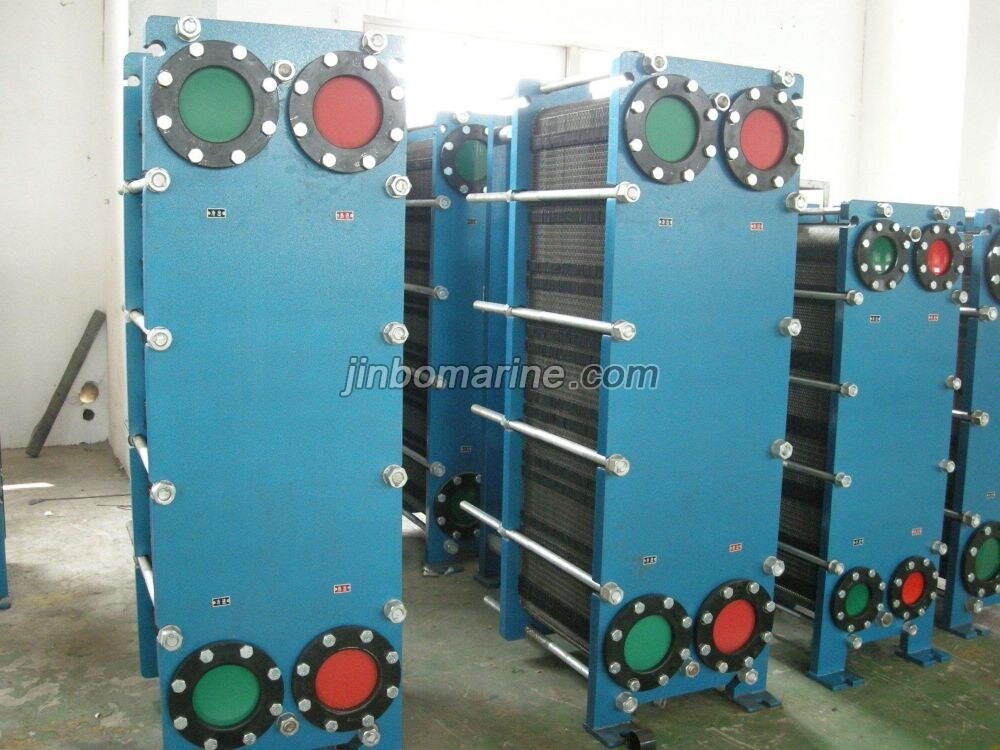

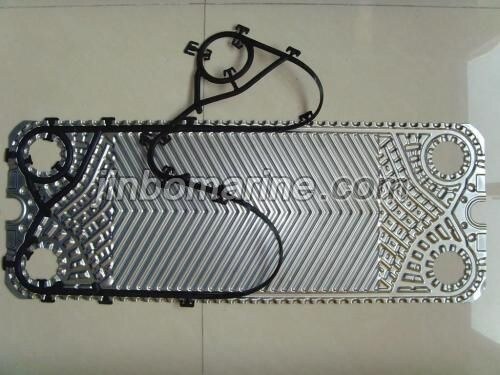

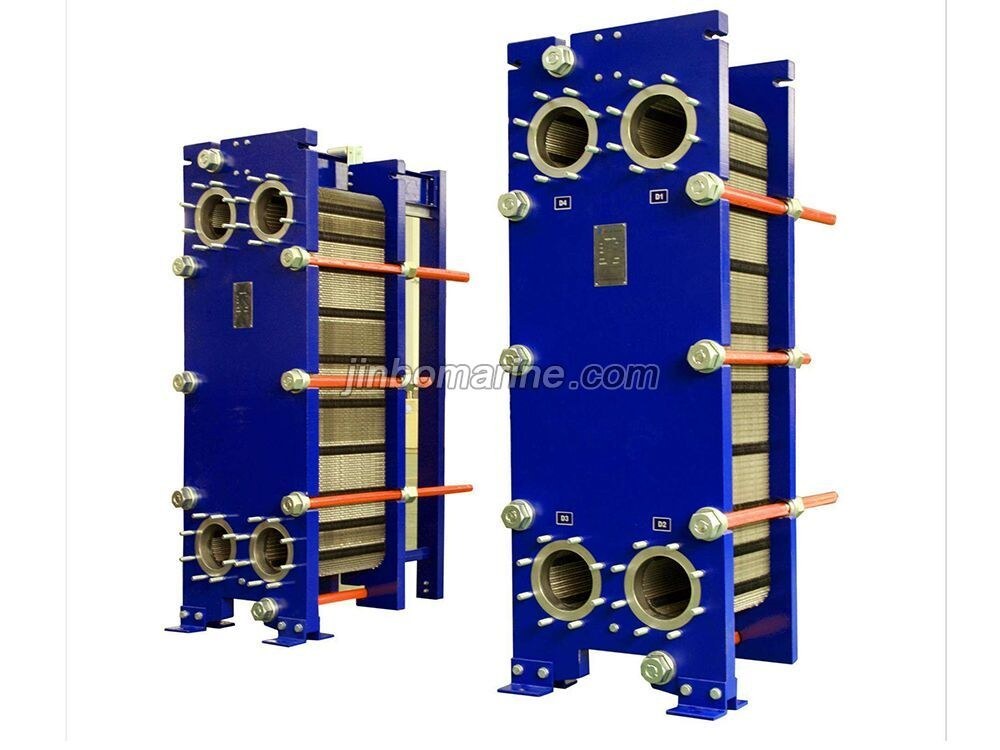

The plate with a new pressurized diversion zone design greatly improves the heat transfer efficiency of plate, reduce dead angle, improve the scale of the plate. All the sealing gaskets are made of free form, which reduces the cost of operation and maintenance and is easy to maintain.

The dimension of the plate is mm3：1975*722*0.7

The monolithic heat transfer area is M2：1.07

Plate spacing mm 3.3

The cross-sectional area of single channel is M2：0.00254

The maximum processing capacity was mm3/h：105-500

Flange diameter DNmm：225

The working temperature℃ ≤180

Working pressure Mpa：0.6,1.0

Angle hole diameter mm：230

B=760 C=1927 F=252 E=425 B1=880 H=2140 R=13
