Brass Female Threaded Needle Valve
- Category:JIS Needle Valve
- Material:Brass
- IMPA Code:752151~752154
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Brass Female Threaded Needle Valve:
Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass material except for the gland O" rings.
Technical Specification:
1. Applicable temperature will be -20℃ to 100℃
2. Max Pressure: 5.88Mpa (60kgf/cm2) at 80℃

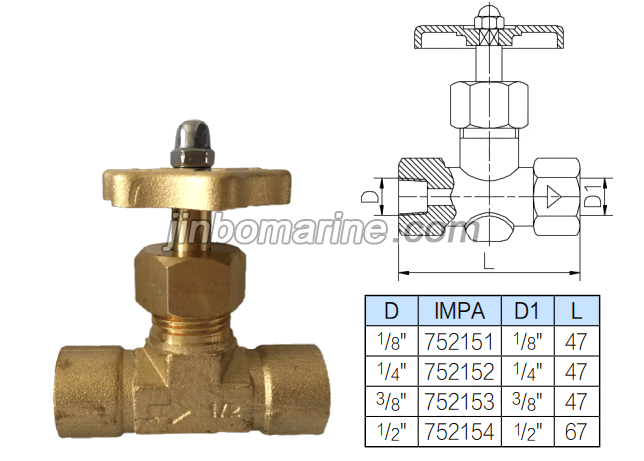

Main Size:
| IMPA | Nominal Size | Thread (D/D1) | Length | Height |
| 752151 | 1/8 | PF-1/8 | 47 | 37 |
| 752152 | 1/4 | PF-1/4 | 47 | 45 |
| 752153 | 3/8 | PF-3/8 | 47 | 50 |
| 752154 | 1/2 | PF-1/2 | 67 | 65 |
