BSD Bulkhead seal

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

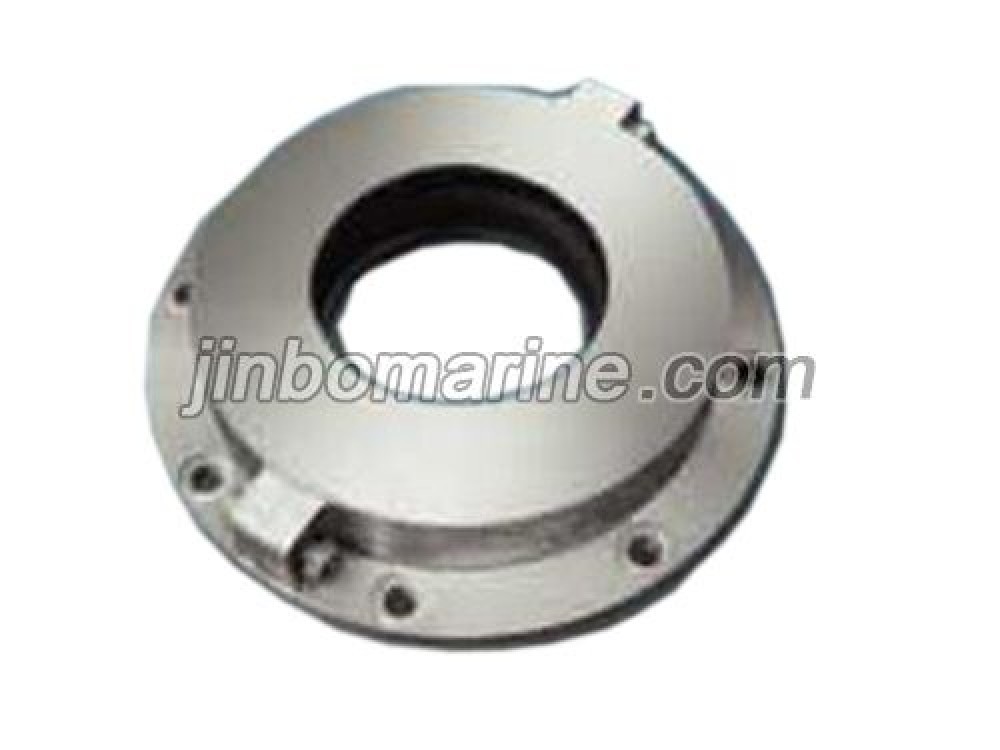

China BSD Bulkhead seal:

It is suggested that small and nedium yachts or vessels should equip with this floating self-sealing bulkhead sealing

apparatus.

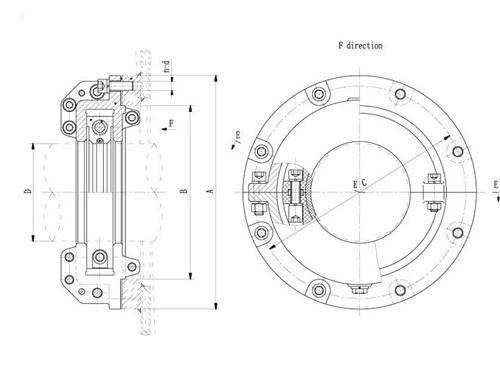

Specification 70 80 90 106 110 122 125 130 150 170 175 180 200
D 70 80 90 106 110 122 125 130 150 170 175 180 200
A 250 225 270 305 290 305 270 310 330 335 350 360 380
B 170 180 190 230 210 238 245 230 250 280 280 280 300
C 220 200 240 276 280 278 225 282 300 306 310 330 350
n-d 8-M10 8-M10 8-M10 8-M10 8-M10 8-M10 8-M10 8-M12 8-M12 8-M12 8-M12 8-M12 8-M12
