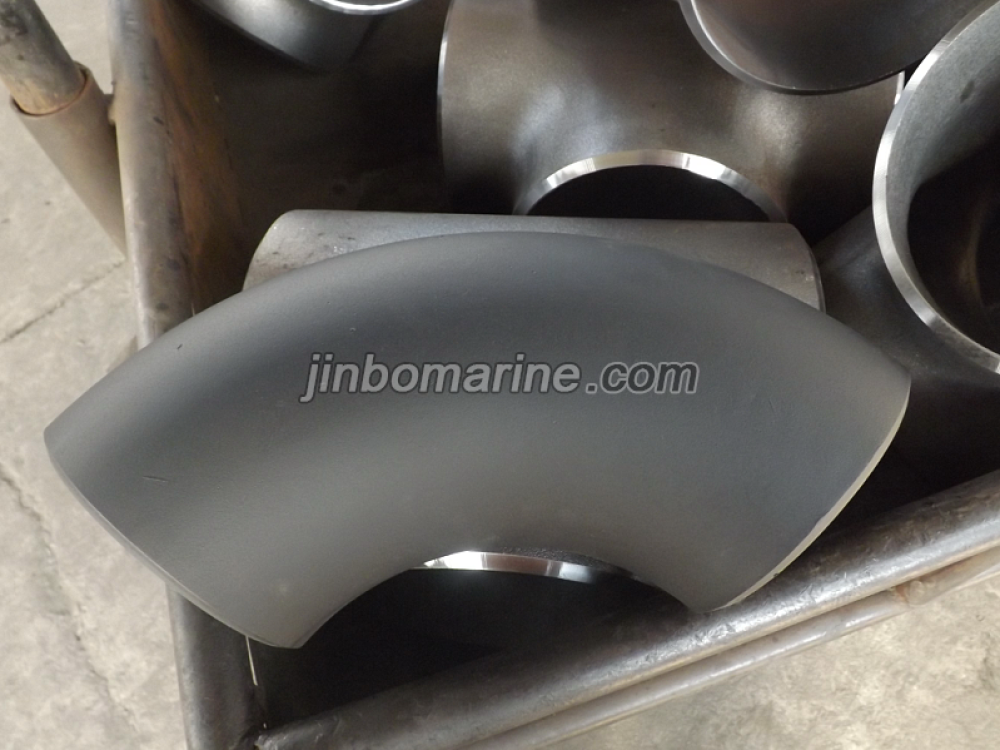

Carbon Steel Elbow
- Category:Elbow
- Material:Carbon steel
- Standards:ASTMA234, ANSI B16.9/B16.28/B16.25,JIS B2311,DIN 2617,etc
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
Carbon Steel Seamless Pipe Fitting Elbows 90 Degree
1.Long radius Elbow and Short Radius Elbow
2.Size:1/2-24"
3.BV SGS ISO9001
4.Black painting,varnish paint,anti rust oil,hot galvanized,cold galvanized,3PE,etc.
5.Plastic film,wooden cases ,wooden pallet,or on customers request
6.Standard:ASTMA234, ANSI B16.9/B16.28/B16.25,JIS B2311,DIN 2617,etc
Specification:
ANSI B16.9 Carbon Steel Pipe ELBOW FOB Price List
|
||||||||
90 Degree long radius elbow
|
||||||||
OD | ND | INCH | SCH20 | SCH40 | SCH80 | |||
Weight | usd | Weight | usd | Weight | usd | |||
21.3 | 15 | 1/2 | 0.05 | 0.10 | 0.08 | 0.14 | 0.10 | 0.23 |
26.7 | 20 | 3/4 | 0.08 | 0.12 | 0.11 | 0.16 | 0.14 | 0.25 |
33.4 | 25 | 1 | 0.14 | 0.18 | 0.16 | 0.25 | 0.19 | 0.35 |
42.2 | 32 | 1 1/4 | 0.20 | 0.27 | 0.25 | 0.33 | 0.35 | 0.47 |
48.3 | 40 | 1 1/2 | 0.29 | 0.35 | 0.37 | 0.45 | 0.49 | 0.59 |
60.3 | 50 | 2 | 0.52 | 0.57 | 0.66 | 0.74 | 0.87 | 1.03 |
73 | 65 | 2 1/2 | 0.83 | 0.98 | 1.32 | 1.41 | 1.77 | 2.15 |
88.9 | 80 | 3 | 1.30 | 1.46 | 2.02 | 2.19 | 2.81 | 3.12 |
114.3 | 100 | 4 | 2.50 | 2.93 | 3.88 | 4.00 | 5.45 | 5.46 |
141.3 | 125 | 5 | 4.50 | 4.29 | 6.62 | 6.44 | 9.68 | 9.37 |
168.3 | 150 | 6 | 7.00 | 6.64 | 10.6 | 9.37 | 15.90 | 14.64 |
219.1 | 200 | 8 | 15.90 | 12.69 | 20.3 | 16.59 | 31.70 | 31.23 |
273 | 250 | 10 | 24.70 | 26.35 | 37 | 30.25 | 58.10 | 58.55 |
323.8 | 300 | 12 | 36.10 | 35.13 | 58.1 | 50.74 | 96.90 | 97.58 |
355.6 | 350 | 14 | 58.10 | 52.69 | 71.3 | 68.31 | 136.00 | 146.37 |
406.4 | 400 | 16 | 75.70 | 69.28 | 121 | 115.15 | 198.00 | 204.92 |
457.2 | 450 | 18 | 96.90 | 85.87 | 172 | 146.37 | 279.00 | 284.94 |
508 | 500 | 20 | 143.00 | 121.00 | 223 | 214.68 | 380.00 | 409.84 |
558.8 | 550 | 22 | 173.00 | 0.00 | 0.00 | 500.00 | 0.00 | |
609.6 | 600 | 24 | 206.00 | 191.26 | 373 | 370.81 | 647.00 | 780.65 |
90 Degree short radius elbow
|
||||||||
OD | ND | INCH | SCH20 | SCH40 | SCH80 | |||
Weight | usd | Weight | usd | Weight | usd | |||
21.3 | 15 | 1/2 | 0.10 | 0.05 | 0.14 | 0.07 | 0.23 | |
26.7 | 20 | 3/4 | 0.12 | 0.07 | 0.16 | 0.09 | 0.25 | |
33.4 | 25 | 1 | 0.18 | 0.11 | 0.25 | 0.13 | 0.35 | |
42.2 | 32 | 1 1/4 | 0.27 | 0.17 | 0.33 | 0.23 | 0.47 | |
48.3 | 40 | 1 1/2 | 0.35 | 0.25 | 0.45 | 0.33 | 0.59 | |
60.3 | 50 | 2 | 0.57 | 0.44 | 0.74 | 0.58 | 1.03 | |
73 | 65 | 2 1/2 | 0.98 | 0.88 | 1.41 | 1.18 | 2.15 | |
88.9 | 80 | 3 | 1.46 | 1.35 | 2.19 | 1.87 | 3.12 | |
114.3 | 100 | 4 | 2.93 | 2.59 | 4.00 | 3.63 | 5.46 | |
141.3 | 125 | 5 | 4.29 | 4.41 | 6.44 | 6.45 | 9.37 | |
168.3 | 150 | 6 | 5.97 | 7.05 | 8.43 | 10.6 | 13.17 | |
219.1 | 200 | 8 | 10.6 | 11.42 | 13.5 | 14.93 | 21.1 | 28.10 |
273 | 250 | 10 | 16.4 | 23.71 | 24.7 | 27.23 | 38.8 | 52.69 |
323.8 | 300 | 12 | 24.1 | 31.62 | 38.8 | 45.67 | 64.6 | 87.82 |
355.6 | 350 | 14 | 38.8 | 47.42 | 47.6 | 61.48 | 90.4 | 131.73 |
406.4 | 400 | 16 | 50.5 | 62.35 | 80.5 | 103.63 | 132 | 184.43 |
457.2 | 450 | 18 | 64.4 | 77.28 | 115 | 131.73 | 186 | 256.44 |
508 | 500 | 20 | 95.1 | 108.90 | 149 | 193.21 | 253 | 368.85 |
558.8 | 550 | 22 | 115.0 | 0.00 | 0.00 | 333 | 0.00 | |
609.6 | 600 | 24 | 137.0 | 172.13 | 248 | 333.73 | 432 | 702.58 |
