Cast Iron Foot Valve 5K/10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

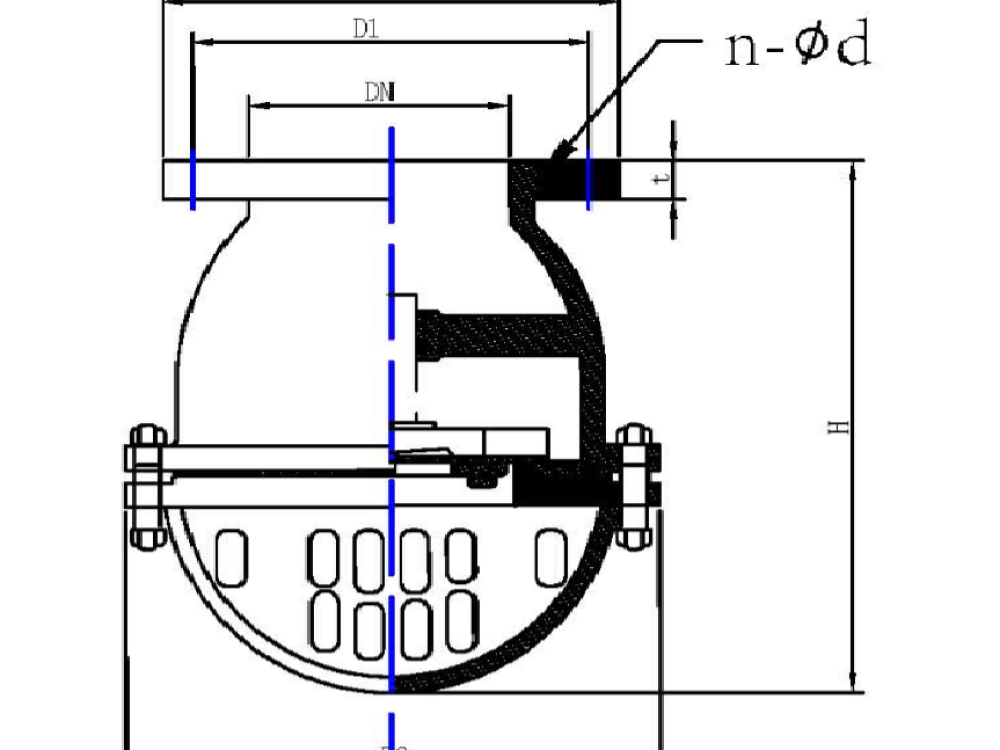

Cast Iron Foot Valve 5K/10K Drawing

Cast Iron Foot Valve 5K/10K Drawing

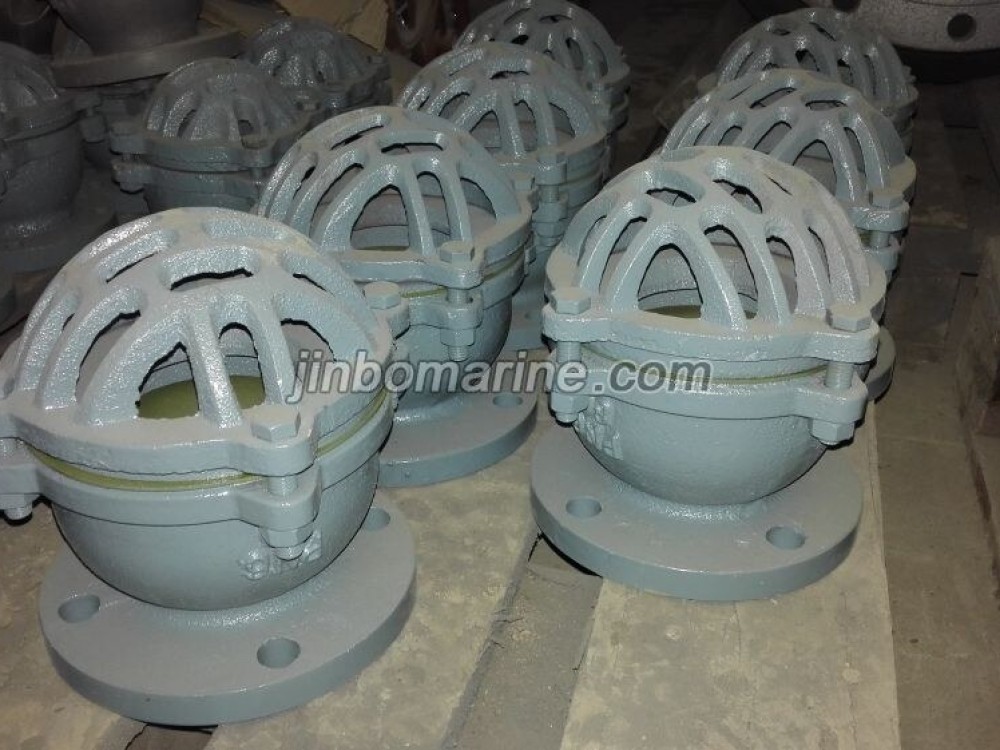

China Cast Iron Foot Valve 5K/10K:

Foot Valve Design Standard: BS 4090

Flange: JIS B2220 5K/10K

Main Parts and Material:

Body, Cover, Disc: Cast Iron HT200

Sealing Ring: Rubber

Gasket: Rubber Sheet

Hinge Pin: Carbon Steel

Main Size (mm):

DN 5K 10K H D2
D1 D t n-Dia D1 D t n-Dia
50 105 130 16 4-15 120 155 16 4-19 160 155
65 130 155 18 4-15 140 175 18 4-19 190 190
80 145 180 18 4-19 150 185 18 8-19 215 215
100 165 200 18 8-19 175 210 18 8-19 255 255
125 200 235 20 8-19 210 250 20 8-23 285 295
150 230 265 22 8-19 240 280 22 8-23 335 345
200 280 320 22 8-23 290 330 22 12-23 405 430
