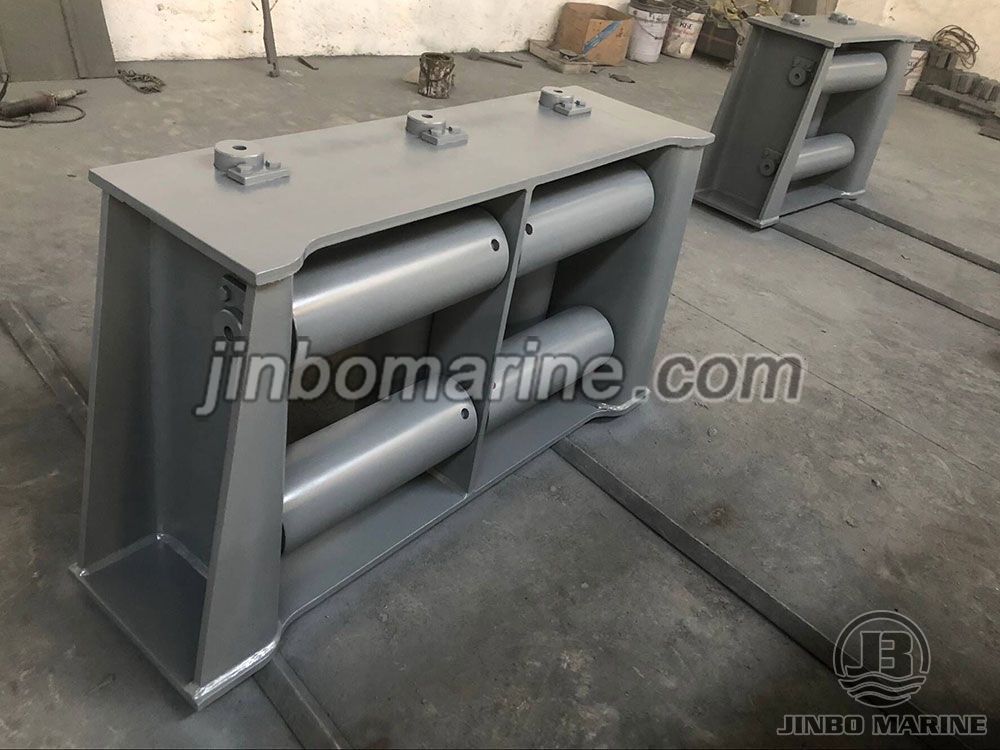

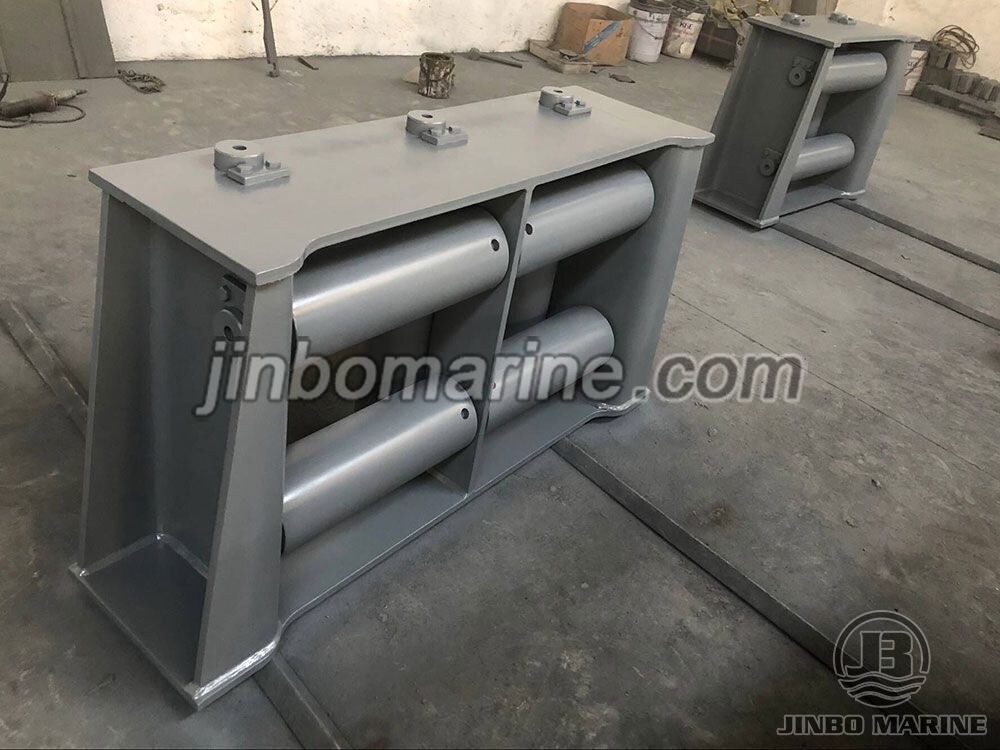

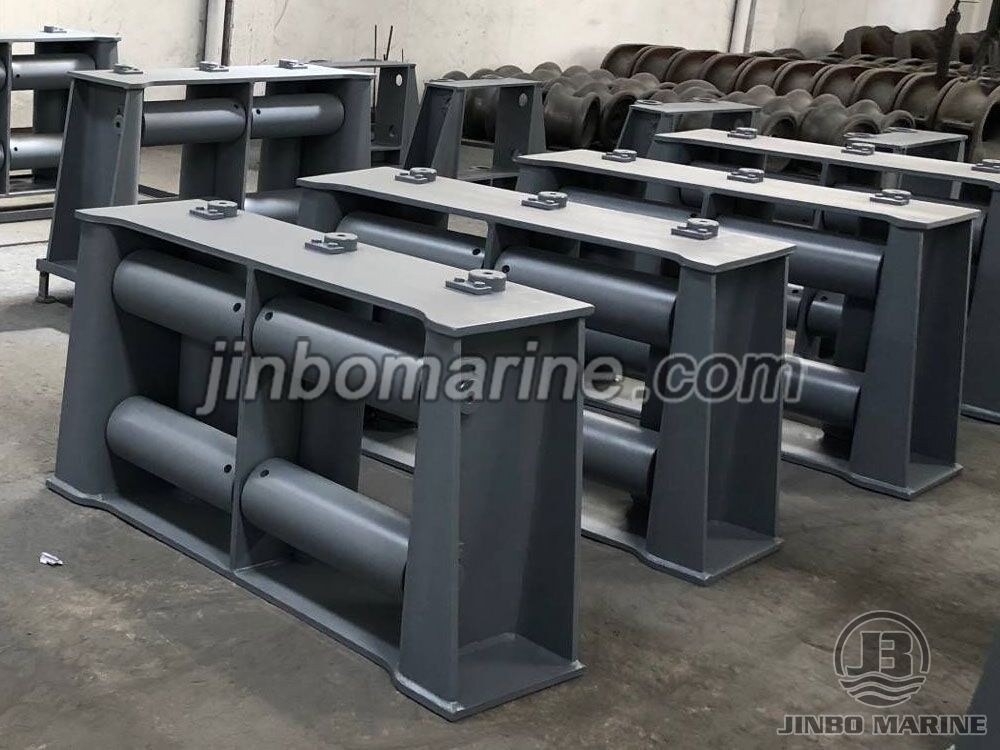

CB3062-79 D Type Seven Rollers Fairlead
- Category:Marine Fairlead
- Material:Q235 and 20# steel
- Standards:CB3062-79 D Type
- Packing Details:Iron shelf packaging.
- Delivery Time:about 25 days.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CB3062-79 D Type Seven Rollers Fairlead:

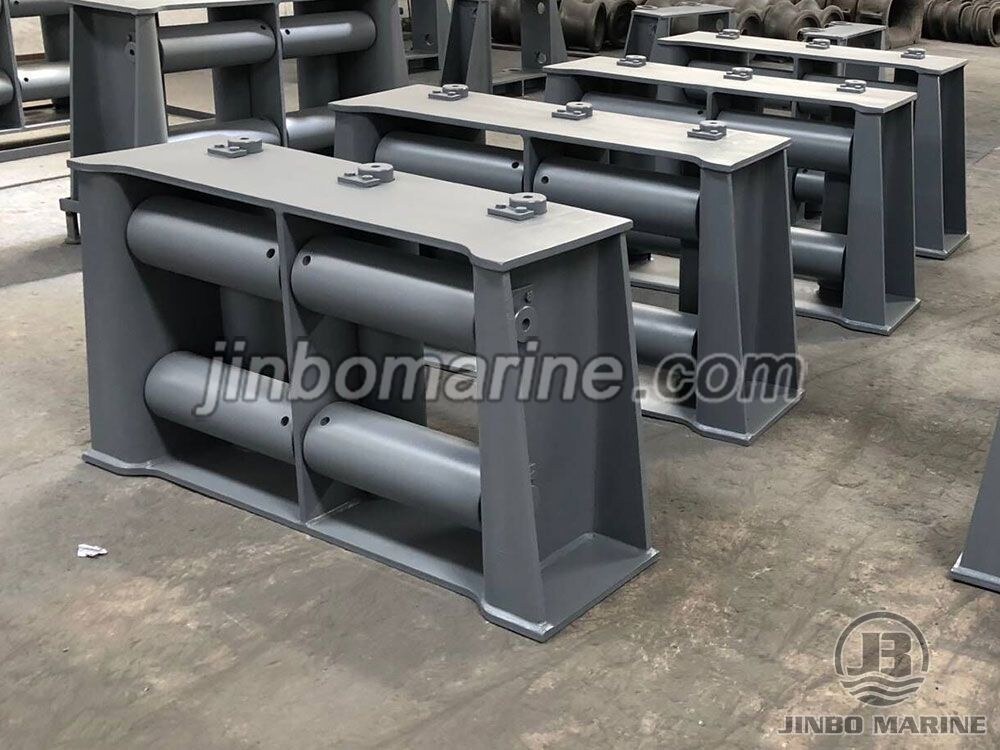

CB3062-79 D Type Seven Rollers Fairlead
Suitable for guide the rope on the vessel.
Frame Material:Q235
Axle And Roller:20# steel.
Specification:
Steel wire dia | Nylon wire dia | E | F | D | d | L | L1 | L2 | L3 | B | B1 | B2 | H | H1 | Weight(kg) |
19.5 | 36 | 200 | 150 | 100 | 40 | 944 | 716 | 300 | 844 | 238 | 194 | 108 | 508 | 250 | 247 |
22.5 | 40 | 200 | 150 | 120 | 50 | 1048 | 776 | 320 | 928 | 280 | 232 | 128 | 552 | 270 | 377 |
26 | 45 | 200 | 180 | 130 | 55 | 1106 | 810 | 330 | 976 | 304 | 250 | 138 | 606 | 310 | 485 |
32 | 70 | 220 | 180 | 150 | 65 | 1250 | 910 | 370 | 1100 | 346 | 288 | 158 | 670 | 330 | 716 |
34.5 | 80 | 240 | 200 | 160 | 70 | 1340 | 980 | 400 | 1180 | 370 | 308 | 168 | 710 | 360 | 849 |
37.5 | 85 | 240 | 200 | 180 | 80 | 1450 | 1040 | 420 | 1270 | 417 | 345 | 190 | 770 | 380 | 951 |
43 | 95 | 260 | 210 | 200 | 90 | 1596 | 1146 | 460 | 1396 | 459 | 385 | 210 | 820 | 410 | 1546 |
52 | 100 | 260 | 220 | 230 | 100 | 1746 | 1236 | 490 | 1516 | 521 | 445 | 240 | 910 | 450 | 2143 |
60.5 | - | 300 | 240 | 260 | 120 | 1990 | 1410 | 560 | 1730 | 590 | 500 | 270 | 1000 | 500 | 3134 |
68 | - | 320 | 250 | 320 | 150 | 2330 | 1630 | 640 | 2010 | 714 | 620 | 330 | 1130 | 570 | 5100 |
