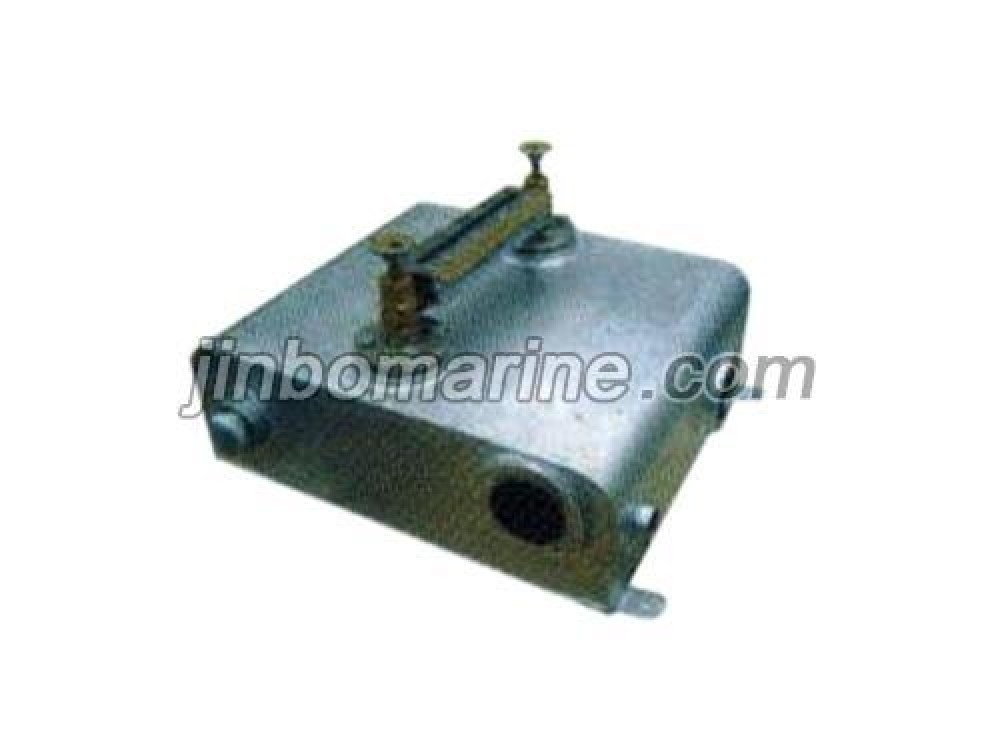

CB3333 Stern Shaft Lubricated Oil Tank
- Category:Marine Shaft
- Certificate:ABS, CCS, BV,DNV,CCS
- Delivery Time:15 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Cb3333 Stern Shaft Lubricated Oil Tank.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Advantage
1. The system not need oil pump.
2. Oil Level should not be lower than the deep load.
3. Suitable for the vessel whose sea gauge is less 10M.
4. Lubrication oil brand should be the same with the main engine.
Technical Specification

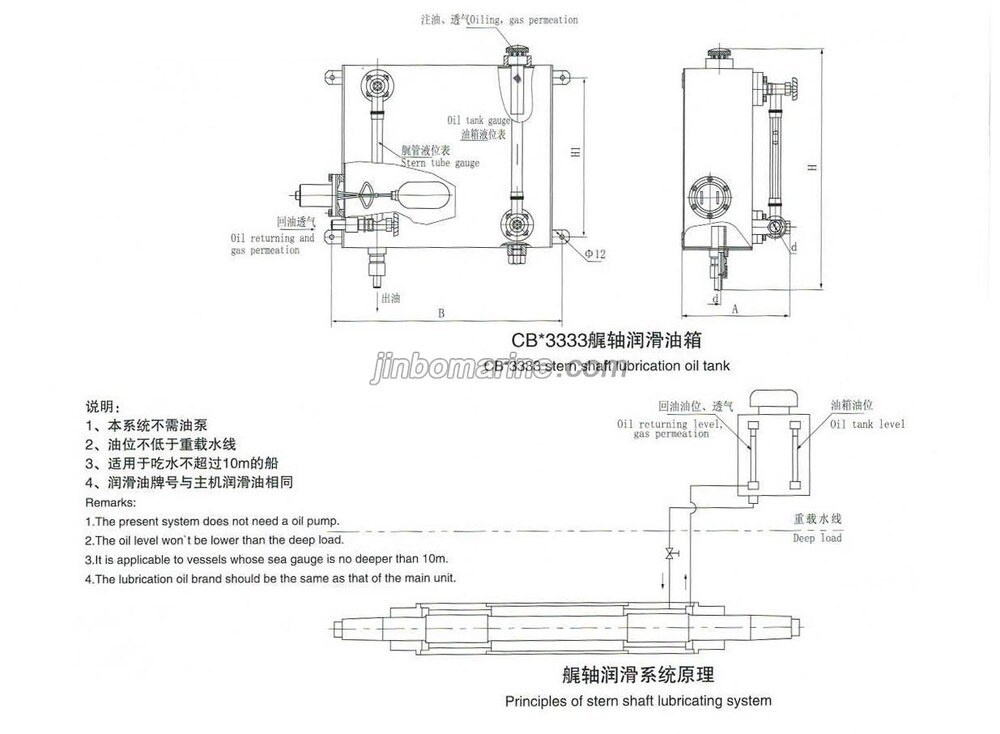

| Model | Capacity | A | B | H | H1 | d | Stern Shaft Diameter | ||
| One Shaft with One Oil Tank | Two Shaft with one Oil Tank | Weight | |||||||
| 15CB*3333 | 15L | 245 | 379 | 630 | 369 | 15 | >=70 and <=120 | <70 | 10 |
| 30CB*3333 | 30L | 245 | 520 | 730 | 460 | 15 | >120 and <=170 | >=70 and <=120 | 15 |
| 50CB*3333 | 50L | 245 | 285 | 730 | 460 | 20 | >170 | 18 | |
