CB436-2000 B Type Cleat Fairlead With Single Roller
- Category:Warping Roller
- Material:cast steel,cast iron
- Standards:CB436-2000
- Certificate:ABS , BV, CCS, mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Cb436 2000 B Type Cleat Fairlead With Single Roller.pdf
Details

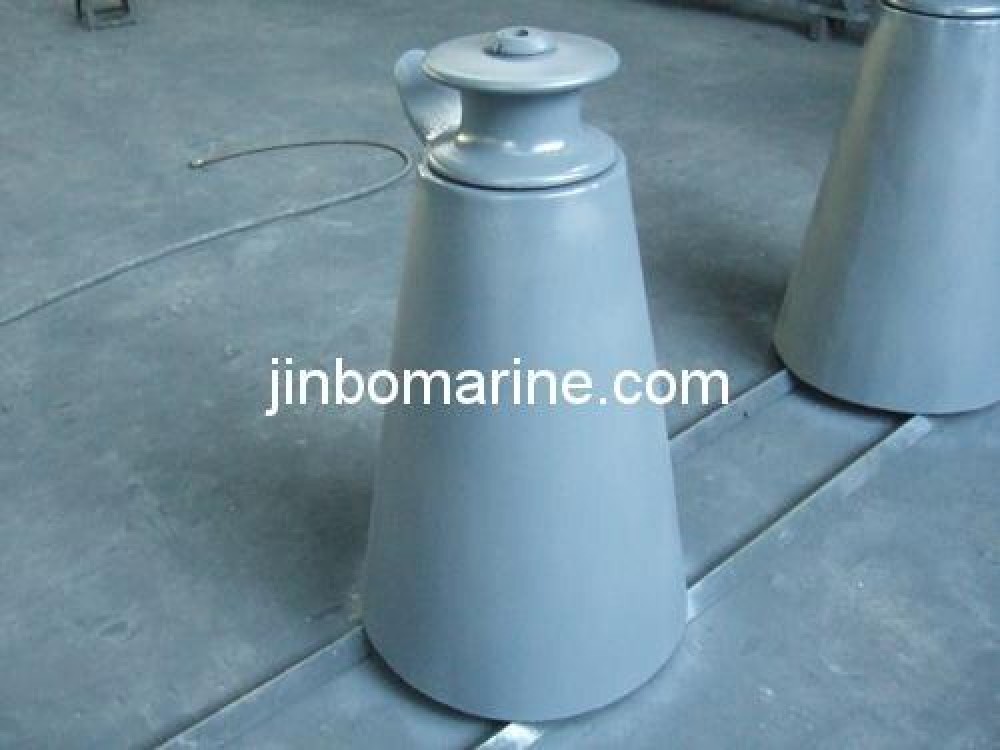

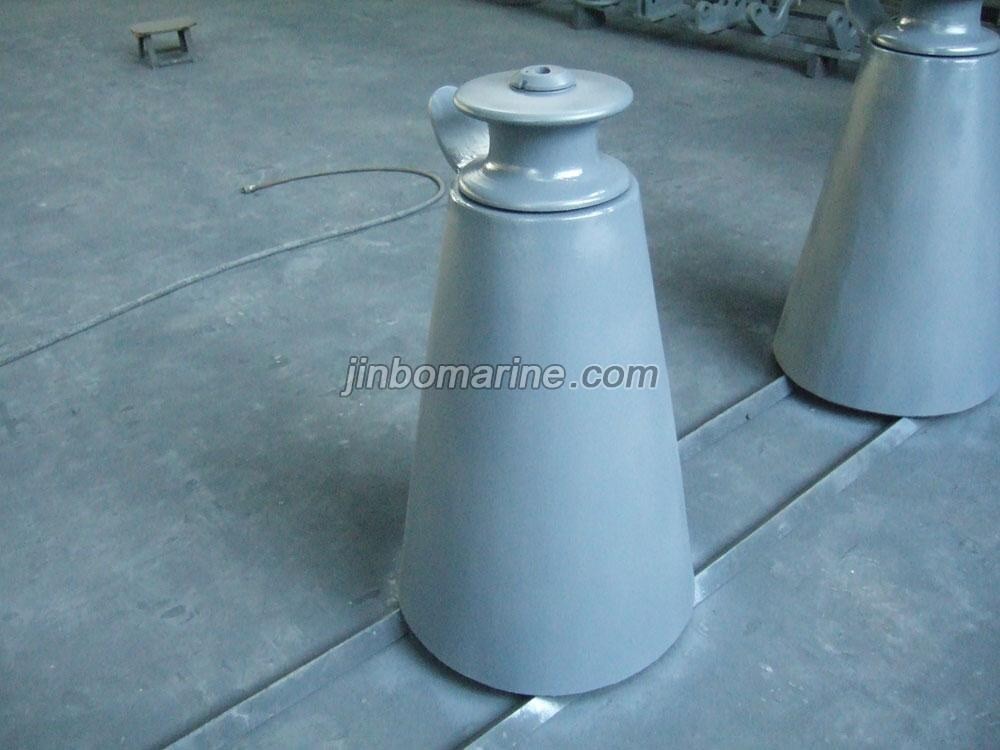

China CB436-2000 B Type Cleat Fairlead With Single Roller:
It is used for bollard cable leading of ships
Compact design,precision machined smooth surface,easily removable shafts,
Combination type including double warping roller with plate, three warping roller with plate and more.
Paint: Grey Epoxy Primer, for the middle paint and surface according to your requirement.
Delivery time:7-15 days after order be confirmed.
Machining facilities :CNC center, CNC lathes, ultrasonic wave cleaning etc

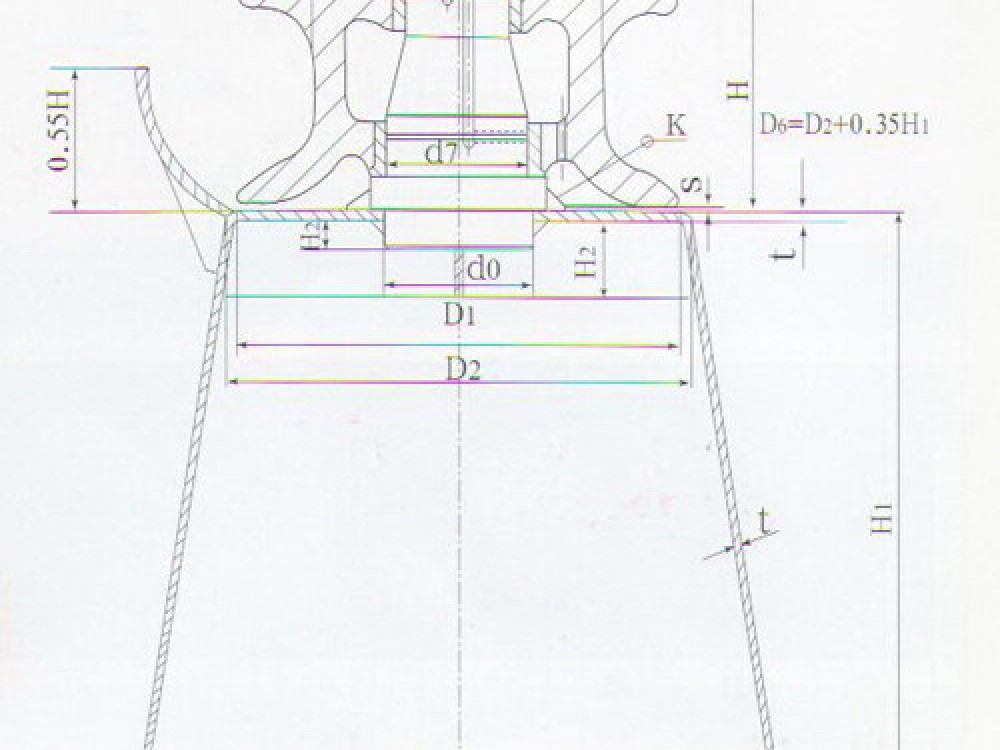

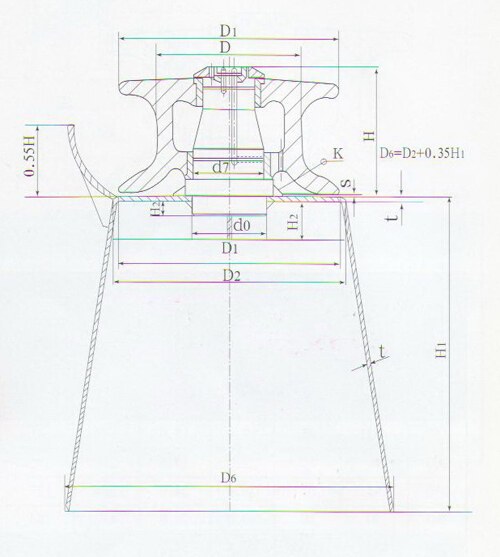

CB436-2000 B type Cleat fairleadwith single roller |
|||||||||||||||||
Product |
Nominal |
Steel rope GB1102 Breaking Load 1520N/mm2 |
Dimension |
Roller weight KG |
Base weight kg |
||||||||||||
Size(mm) |
6*24 |
6*30 |
6*37 |
D0 |
D1 |
D2 |
D7 |
H |
H1 |
H2 |
H3 |
S |
t |
K |
|||
CBRB-001 |
150 |
17 |
17.5 |
15 |
90 |
240 |
270 |
79 |
158 |
The base height is as per your request |
40 |
75 |
5 |
12 |
9 |
24.8 |
129 |
CBRB-002 |
200 |
22.5 |
21.5 |
19.5 |
115 |
310 |
340 |
99 |
186 |
50 |
85 |
5 |
14 |
10 |
49.3 |
178 |
|
CBRB-003 |
250 |
24 |
26 |
24 |
135 |
380 |
410 |
119 |
230 |
60 |
100 |
6 |
14 |
10 |
92 |
207 |
|
CBRB-004 |
300 |
30 |
32.5 |
28 |
155 |
440 |
470 |
129 |
255 |
60 |
100 |
7 |
16 |
12 |
127 |
265 |
|
CBRB-005 |
350 |
37.5 |
39 |
34.5 |
175 |
500 |
530 |
149 |
271 |
65 |
100 |
7 |
18 |
13 |
168 |
332 |
|
CBRB-006 |
400 |
41 |
39 |
39 |
185 |
560 |
590 |
159 |
307 |
70 |
100 |
7 |
20 |
14 |
252.5 |
401 |
|
CBRB-007 |
450 |
44.5 |
- |
43 |
210 |
630 |
670 |
179 |
316 |
80 |
120 |
7 |
20 |
14 |
310 |
452 |
|
CB436-2000 B type:Adopt GB T10105-88 marine fairlead roller |
Supply scope:
DIN 81906-1999 Fairlead roller
NS2585 Type Marine warping roller----Also known as GB 10105-88 warping roller
JIS F2014-1987 fairlead roller
KOREAN WARPING ROLLER
CB58-83 fairlead roller
Cleat fairlead with single roller CB436-2000 type A
Cleat fairlead with single roller CB436-2000 type B
Double Warping Roller With Plate
DIN81907 1997 Fairleads roller
A type Fairlead Rollers
