CB497 Inhalable Coarse Water Filter
- Category:Filter
- Delivery Time:15 days
- Packing Details:Wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

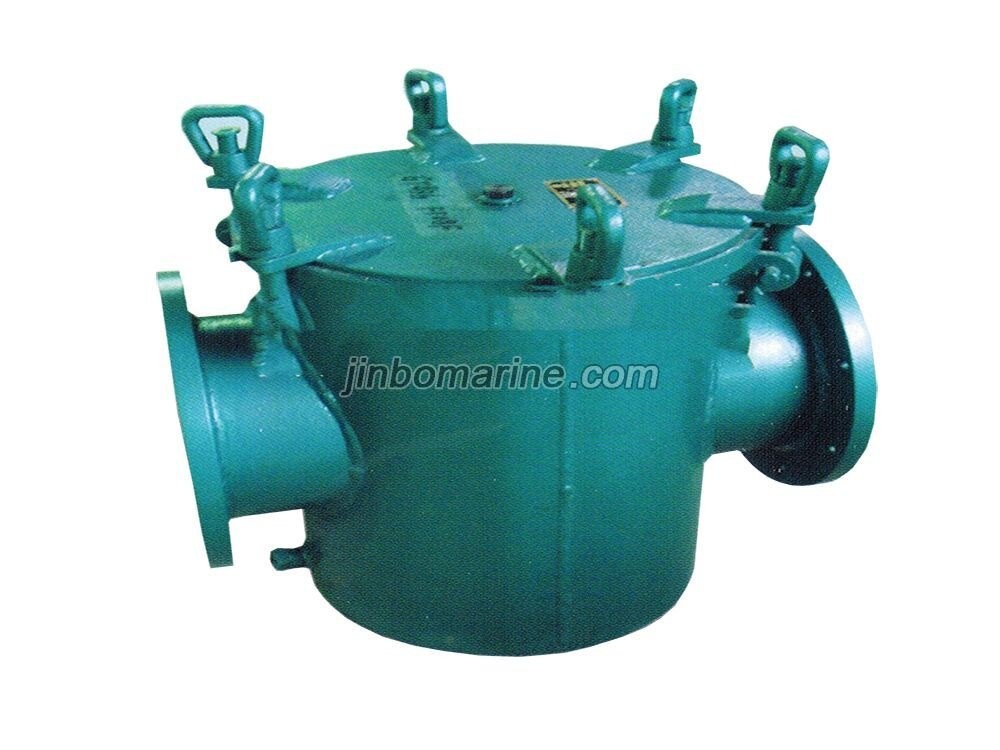

CB497 Inhalable Coarse Water Filter
1.Sea water filters are manufactured as per National Specifications for Shipbuilding industry, CB497-1994.
2.Shell of the filter ia made of structural carbon steel Q235A, with shell surface galvanized in a thickness no less than 20um.Filter mesh is made of stainless steel 1Cr18Ni9,effective pass-through area of the filter mesh shall be at least 2.5 times of nominal sectional area of inlet/outlet.
There are three options of inlet/outlet pattern avaliable for users'choice for layout of piping,namely,(A)straightforward pattern,(B)strainghtforward by right side;(C)straightforward by left side.
3.It's widely applied for filtering system of various pipelines,including seawater or freshwater pipeline on various vessels and ships,power staion related pipelines,chemical pipelines and sewage treatment pipelines
Work pressure | Path | ||
≤0.4Mpa | 40-500mm |

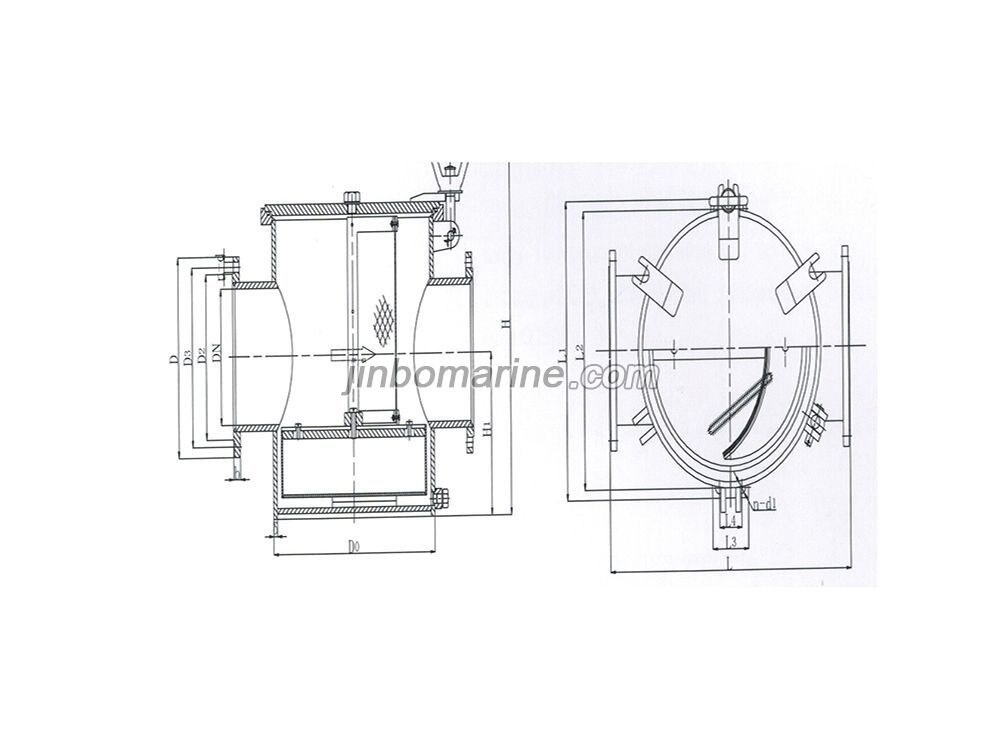

CB497 Inhalable Coarse Water Filter Drawing
CB497 Inhalable Coarse Water Filter Technical Parameters
DN | STructure size | Flange | Installing size | ||||||||||||||
L | H | H1 | DO | δ | D | D1 | D2 | b | d0 | n | L1 | L2 | L3 | L4 | d1 | ||
A | BR BL | ||||||||||||||||
40 | 270 | 135 | 255 | 92 | 133 | 5 | 125 | 93 | 74 | 15 | 15 | 6 | |||||
50 | 135 | 103 | 84 | ||||||||||||||
65 | 310 | 155 | 325 | 122 | 155 | 155 | 123 | 104 | 14 | ||||||||
80 | 350 | 175 | 160 | 152 | 180 | 6 | 170 | 138 | 118 | 8 | |||||||
100 | 420 | 210 | 415 | 182 | 250 | 190 | 158 | 138 | |||||||||
125 | 445 | 257 | 215 | 183 | 164 | 10 | |||||||||||
150 | 490 | 245 | 470 | 190 | 312 | 240 | 208 | 190 | 12 | ||||||||
200 | 540 | 270 | 550 | 240 | 352 | 8 | 295 | 264 | 247 | 15 | 440 | 110 | 80 | 50 | 17 | ||
250 | 600 | 300 | 675 | 315 | 450 | 365 | 327 | 306 | 16 | 17 | 14 | 520 | 490 | ||||
300 | 660 | 330 | 770 | 340 | 500 | 430 | 386 | 360 | 19 | 21 | 590 | 560 | 100 | 70 | |||
350 | 850 | 425 | 963 | 508 | 580 | 10 | 480 | 436 | 410 | 20 | 16 | 680 | 640 | 120 | 80 | 19 | |
400 | 950 | 995 | 515 | 69 | 12 | 530 | 486 | 460 | 21 | 770 | 730 | ||||||
450 | 1050 | 1040 | 550 | 754 | 580 | 536 | 512 | 18 | 880 | 830 | 140 | 90 | 23 | ||||
500 | 1180 | 1120 | 630 | 854 | 635 | 591 | 567 | 20 | 980 | 930 | 160 | 110 |
