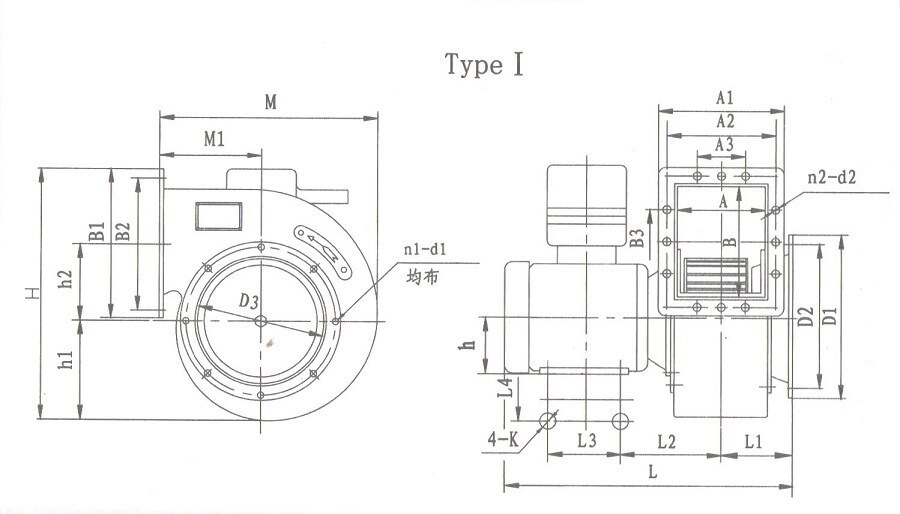

CBL Marine Explosion Proof Centrifugal Fan Type I Picture

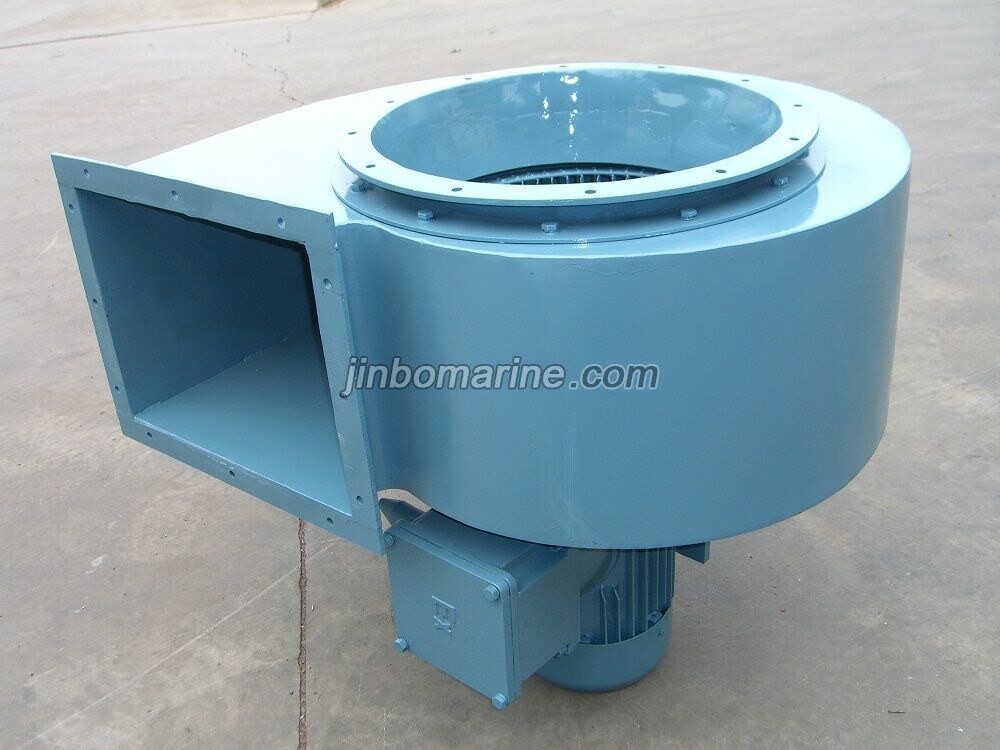

CBL Marine Explosion Proof Centrifugal Fan Type I

Category:Marine Fan/Blower
Standards:GB11799, GB3836-83
Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
Material:Steel Casing & Aluminum Alloy Impeller
Fob Price:Get Latest Price Now
Place of Origin:China

Request a Quote Not what you need, please send your RFQs via Email.

Details

General:

CBL series marine explosion proof centrifugal fan is designed and manufactured according to GB11799-89 (marine explosion proof centrifugal fan), and genearal description and explosion proof electrical equipment "d" of GB3836-83 (electrical apparatus for explosive atomsphere) and Regulations for the Contrustion and classification of sea-going steel shipes.

Application:

It can be used to delivery the gas mixtures or vapour containing combustibles and explosives, ordinary air, sea air containing salt fog, air containing oil fog and other corrupt air supply or extraciton.

This kind of explosion proof fan is suitable to pump out gas mixtures or vapour containing combustibles and explosives in oil tank,cargo tank, pump room,battery cabin,ammunition cabin,hangar,paint house, etc. It also can be used for ventilation of other compartments of shipping and corresponding place on the land.

The fan can be with AC 50HZ,380V or 60HZ, 440V.

Structural Types:

Type I- Direct Coupling type. The vane wheel is mounted directly to motor shaft, and the housing is fixed on the flange of the explosion proof motor.

Type II-Separate cabin type. It is a separate structure, the fan and the motor are put into different cabins, with a driving device, a pairs of flexible coupling, and the driving device consists of bearings, bearing box, shaft brass rings, stuffing, it can be refueled and measure the temperature. One side is fixed on the fan, another side is mounted on the bulkhead.

The fan may be made into a horizontal or vertical, single-stage, single-suction, airtight structure.

Features:

1.Explosion proof, safe, reliable in operation.

2. Small size, light weight, low noise.

3.Good anticorrosive.

4. Strongly capable of resisting vacillation,vibration and shocking.

Main Parameter:

Model		Folw rate (m3/h)	Total pressure (Pa)		Static pressure (Pa)		speed(r/min)	Motor					Weight(kgs)
								Freq (Hz)	Power (kw)		Type
									TypeⅠ	TypeⅡ	TypeⅠ	TypeⅡ	I	Ⅱ
CBL-15		500	550		490		2920	50	0.75	1.5	YB801-2-H	YB90S-2-H/Y90S-2-H	40	61
		800	540		390
		600	780		590		3500	60
		960	645		470
CBL-16		800	600		490		2920	50	0.75	1.5	YB801-2-H	YB90S-2-H/Y90S-2-H	41	62
		1200	590		340
		960	860		705		3500	60
		1400	840		490
CBL-17		800	695		590		2920	50	0.75	1.5	YB801-2-H	YB90S-2-H/Y90S-2-H	42	63
		1200	685		440
		960	1000		840		3500	60
		1400	980		635
CBL-18		1200	810		635		2920	50	1.1	1.5	YB802-2-H	YB90S-2-H/Y90S-2-H	43	64
		1500	810		540
		1400	1165		910		3500	60
		1800	1165		775
CBL-19		1500	900		735		2920	50	1.5	1.5	YB90S-2-H	YB90S-2-H/Y90S-2-H	44	71
		2000	880		590
		1800	1295		1060		3500	60
		2400	1265		840
CBL-20		800	245		195		1460	50	0.75	1.1	YB802-4-H	YB90S-4-H/Y90S-4-H	45	67
		960	350		285		1750	60
CBL-20		1500	1050		880		2920	50	2.2	3	YB90L-2-H	YB100L-2-H/Y100L-2-H	55	80
		2000	1030		735
		1800	1510		1265		3500	60
		2400	1480		1060
CBL-21		2000	1175		930		2920	50	2.2	3	YB90L-2-H	YB100L-2-H/Y100L-2-H	58	79
		2500	1165		785
		2400	1685		1330		3500	60
		3000	1675		1125
CBL-22		2500	1275		980		2920	50	2.2	4	YB90L-2-H	YB112M-2-H/Y112M-2-H	60	86
		3000	1255		830
		3000	1830		1410		3500	60	3		YB100L-2-H		63
		3600	1805		1195
CBL-23		2500	1400		1175		2920	50	2.2	4	YB90L-2-H	YB112M-2-H/Y112M-2-H	62	88
		3000	1410		1080
		3000	2010		1685		3500	60	4		YB112M-2-H		65
		3600	2030		1550
CBL-24		1500	410		340		1460	50	0.75	1.1	YB802-4-H	YB90S-4-H/Y90S-4-H	48	75
		2000	360		245
		1800	590		490		1750	60
		2400	520		350
CBL-24	3000		1653	1370		2920		50	3	4	YB100L-2-H	YB112M-2-H/Y112M-2-H	69	102
	4000		1560	1080
	3600		23502	1970		3500		60	5.5	5.5	YB132S1-2-H	YB132S1-2-H/Y132S1-2-H	104	127
	4800		2235	1550
CBL-25	2000		430	340		1460		50	1.1	1.1	YB90S-4-H	YB90S-4-H/Y90S-4-H	59	79
	2500		430	295
	2400		615	490		1750		60
	3000		615	420
CBL-25		4000	1910		1570	2920		50	4	4	YB112M-2-H	YB112M-2-H/Y112M-2-H	79	104

		4800	2745		2255	3500		60	7.5	7.5	YB132S1-2-H	YB132S1-2-H/Y132S1-2-H	110	143

CBL-27		2500	510		390	1460		50	1.5	1.5	YB90L-4-H	YB90L-4-H/Y90L-4-H	65	85
		3000	510		340
		3000	735		560	1750		60
		3600	735		490
CBL-29		2500	625		540	1460		50	1.5	1.5	YB90L-4-H	YB90L-4-H/Y90L-4-H	68	88
		3000	570		440
		3000	900		775	1750		60
		3600	810		635
CBL-30		3000	645		540	1460		50	1.5	2.2	YB90L-4-H	YB100L1-4-H/Y100 L1-4-H	70	101
		4000	635		440
		3600	930		775	1750		60	2.2		YB100L1-4-H		78
		4800	910		635
CBL-32		4000	745		590	1460		50	2.2	3	YB100L1-4-H	YB100L2-4-H/Y100L2-4-H	81	106
		5000	735		490
		4800	1070		840	1750		60	3		YB100L2-4-H		83
		6000	1060		705
CBL-33		4000	820		685	1460		50	2.2	3	YB100L1-4-H	YB100L2-4-H/Y100L2-4-H	84	109
		5000	795		590
		4800	1185		990	1750		60	3		YB100L2-4-H		86
		6000	1135		840
CBL-34		5000	860		685	1460		50	3	4	YB100L2-4-H	YB112M-4-H/Y112M-4-H	87	123
		6000	840		590
		6000	1235		990	1750		60	4		YB112M-4-H		100
		7200	1215		840
CBL36		5000	970		830	1460		50	4	4	YB112M-4-H	YB112M-4-H/Y112M-4-H	83	106
		6000	930		735
		7200	870		590
		6000	1390		1195	1750		60	5.5	5.5	YB132S-4-H	YB112M-4-H	105	138
		7200	1330		1060							Y112M-4-H
		8600	1255		840
CBL-37		6000	1010		830	1460		50	4	4	YB112M-4-H	YB112M-4-H/Y112M-4-H	108	131
		7200	990		735
		7200	1450		1195	1750		60	5.5	5.5	YB132S-4-H	YB132S-4-H/Y132S-4-H	130	163
		8600	1420		1060
CBL-39		6000	490		340	970		50	2.2	2.2	YB112M-6-H	YB112M-6-H/Y112M-6-H	111	134
		7200	705		490	1160		60
CBL-39		7200	1185		980	1460		50	5.5	7.5	YB132S-4-H	YB132M-4-H/Y132M-4-H	138	186
		9000	1090		785
		8600	1705		1410	1750		60	7.5		YB132M-4-H		153
		10800	1560		1125
CBL-40		5000	1215		1080	1460		50	4	4	YB112M-4-H	YB112M-4-H/Y112M-4-H	112	135
		6000	1175		980
		6000	1745		1550	1750		60	7.5	7.5	YB132M-4-H	YB132M-4-H/Y132M-4-H	149	182
		7200	1685		1410
CBL-42		6000	590		490	970		50	2.2	3	YB112M-6-H	YB132S-6-H/Y132S-6-H	123	179
		7200	540		390
		7200	840		705	1160		60	3		YB132S-6-H		146
		8600	775		560
CBL-42		9000	1305		1080	1460		50	7.5	7.5	YB132M-4-H	YB132M-4-H	165	198
		12000	1285		880							Y132M-4-H
		10800	1870		1550	1750		60	11	11	YB160M-4-H	YB160M-4-H/Y160M-4-H	218	263
		14000	1840		1265
CBL-44		7200	635		490	970		50	3	3	YB132S-6-H	YB132M1-6-H/Y132M1-6-H	150	193
		9000	600		390
		8600	910		705	1160		60	4		YB132M1-6-H		160
		10800	860		560
CBL-44		9000	1480		1275	1460		50	11	11	YB160M-4-H	YB160M-4-H/Y160M-4-H	222	267
		12000	1450		980
		10800	2130		1830	1750		60	15	15	YB160L-4-H	YB160L-4-H/Y160L-4-H	240	285
		14000	2090		1410
CBL-46		9000	675		490	970		50	4	4	YB132M1-6-H	YB132M1-6-H/Y132M1-6-H	166	199

		10800	970		340	1160		60	5.5	5.5	YB132M2-6-H	YB132M2-6-H/Y132M2-6-H	181	214

CBL-46		12000	1610		1275	1460		50	15	15	YB160L-4-H	YB160L-4-H/Y160L-4-H	228	273
		15000	1500		980
		14000	2300		1830	1750		60	18.5	18.5	YB180M-4-H	YB180M-4-H/Y180M-4-H	300	245
		18000	2155		1410
CBL-48		9000	735		590	970		50	4	4	YB132M1-6-H	YB132M1-6-H	169	202
		12000	655		390							Y132M1-6-H
		10800	1060		840	1160		60	5.5	5.5	YB132M2-6-H	YB132M2-6-H/Y132M2-6-H	185	218
		14000	940		560
CBL-48		12000	1735		1470	1460		50	15	15	YB160L-4-H	YB160L-4-H/Y160L-4-H	249	294
		15000	1695		1275
		14000	2490		2120	1750		60	22	22	YB180L-4-H	YB180L-4-H/Y180L-4-H	353	398
		18000	2440		1830
CBL-50		12000	775		540	970		50	5.5	5.5	YB132M2-6-H	YB132M2-6-H/Y132M2-6-H	190	223

		14000	1110		775	1160		60	7.5	7.5	YB160M-6-H	YB160M-6-H/Y160M-6-H	230	275

CBL-50		15000	1830		1470	1460		50	18.5	18.5	YB180M-4-H	YB180M-4-H/Y180M-4-H	255	309
		18000	1795		1275
		18000	2633		2120	1750		60	22	22	YB180L-4-H	YB180L-4-H/Y180L-4-H	359	404
		21000	2580		1830
CBL-52		12000	930		735	970		50	7.5	7.5	YB160M-6-H	YB160M-6-H/Y160M-6-H	241	286
		15000	850		540
		14000	1330		1060	1160		60	11	11	YB160L-6-H	YB160L-6-H/Y160L-6-H	265	310
		18000	1225		775
CBL-54		15000	940		685	970		50	7.5	7.5	YB160M-6-H	YB160M-6-H/Y160M-6-H	252	297

		18000	1350		990	1160		60	11	11	YB160L-6-H	YB160L-6-H/Y160L-6-H	276	321

CBL-56		15000	1060		830	970		50	11	11	YB160L-6-H	YB160L-6-H/Y160L-6-H	287	312
		18000	1010		685
		18000	1520		1195	1160		60	15	15	YB180L-6-H	YB180L-6-H/YB180L-6-H	382	427
		21000	1440		980
CBL-58		18000	1155		880	970		50	15	15	YB180L-6-H	YB180L-6-H/Y180L-6-H	393	438

		21000	1655		1265	1160		60	18.5	18.5	YB200L1-6-H	YB200L1-6-H/Y200L1-6-H	398	455
