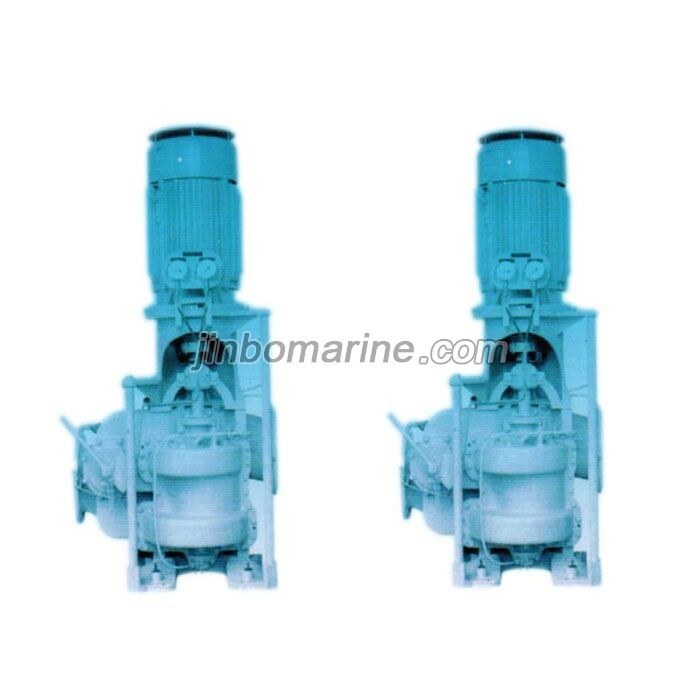

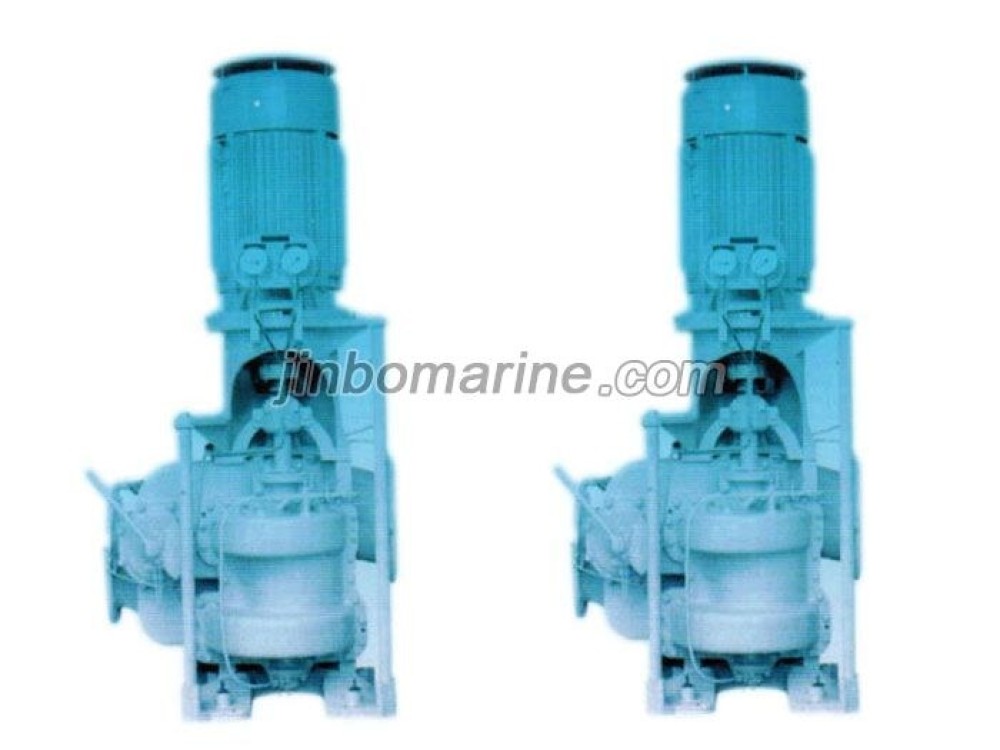

CCBL Series Marine Vertical Centrifugal Pump
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China CCBL Series Marine Vertical Centrifugal Pump:
CCBL series marine series-parallel connection vertical centrifugal pump of the performance indicators to meet the CCS"with the construction of steel ships entry-level norms",in line with MSC,98(73) resolutions, FSSⅡ-Z(international fire safety system rules) requirements.
CCBL series marine vertical centrifugal pump is a kind of series and parallel both to meet the large flow of work and also to accommodate the work of multi-purpose high-lift pumps for cooling the ship,ballast and other low-voltage systems also meet the fire water and washing,deck high-pressure water system which can transport 70℃ below the sea water or fresh water.
CCBL series pump diameter range of 150mm-350mm, flow rate range of 100m³/h-2000m³/h,head range 20m-100m.
Main Technical Data | ||||
Model |
Flow rate Q m³/h |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
CCBL-150 | 180/55 | 24/78 | 1450 | 22 |
CCBL-150A | 175/52 | 22/74 | 1450 | 18.5 |
CCBL-150B | 170/48 | 20/70 | 1450 | 15 |
CCBL-150C | 165/45 | 18/66 | 1450 | 15 |
CCBL-200 | 320/100 | 24/78 | 1450 | 37 |
CCBL-200A | 310/100 | 22/74 | 1450 | 30 |
CCBL-200B | 310/95 | 20/70 | 1450 | 30 |
CCBL-200C | 300/90 | 18/66 | 1450 | 30 |
CCBL-250 | 290/85 | 24/78 | 1450 | 55 |
CCBL-250A | 480/150 | 22/74 | 1450 | 55 |
CCBL-250B | 464/145 | 20/70 | 1450 | 45 |
CCBL-250C | 448/140 | 18/66 | 1450 | 45 |
CCBL-300 | 432/135 | 24/78 | 1450 | 75 |
CCBL-300A | 780/240 | 22/74 | 1450 | 75 |
CCBL-300B | 755/232 | 20/70 | 1450 | 75 |
CCBL-300C | 730/224 | 18/66 | 1450 | 55 |
CCBL-350 | 705/216 | 24/78 | 1450 | 132 |
CCBL-350A | 1200/370 | 22/74 | 1450 | 110 |
CCBL-350B | 1160/358 | 20/70 | 1450 | 90 |
CCBL-350C | 1120/346 | 18/66 | 1450 | 90 |
Alao have bigger pumps, pls contact us for more information. |
