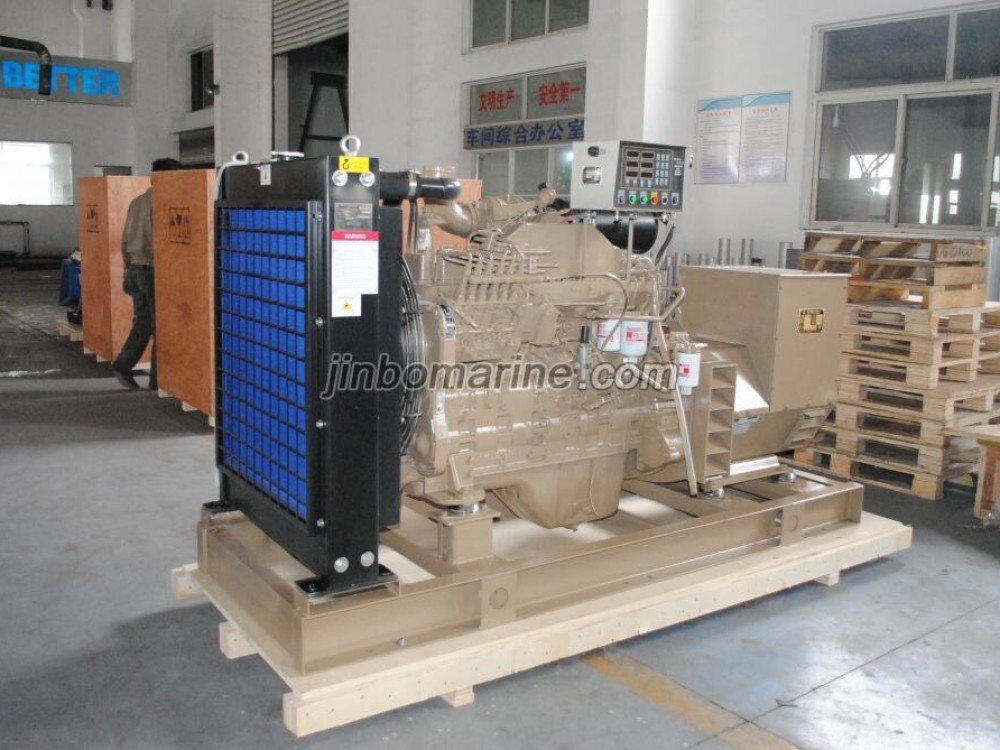

CCFJ120J-W 120KW Cummins Marine Generator Set with Air Cooling
- Category:Marine Generator
- Material:Steel
- Certificate:CCS, BV
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
STANDARD SPECIFICATION:
Coupled with Cummins diesel engine and Stamford alternator
24V DC start motor
Brushless, Self-excited, IP23, insulation class H alternator
ENGINE SPECIFICATION:
Cummins Diesel Engine
Technical Data
|
Engine Model |
6CTA8.3-GM155 |
|
Number of Cylinders |
6 cylinders in line |
|
Cycle |
4 stroke |
|
Aspiration |
Turbocharged and after-cooled |
|
Bore×Stroke |
114 x 135 mm |
|
Displacement |
8.3 L |
|
Prime Power/Speed |
155KW /1500 rpm |
|
Speed Governor |
Electrical |
|
Cooling System |
By fan (air cooled) |
|
Fuel Consumption at 100% Load |
198 g/kw.h |
|
Starter Motor |
DC24V, |
Alternator SPECIFICATION:
Stamford Alternator (Standard)
Technical Data
|
Alternator Model |
UCM274G |
|
Prime power |
128KW |
|
Frequency/speed |
50HZ / 1500rpm / 415 V |
|
Exciter type |
Brush-less, Self-excited |
|
Power factor |
0.8 |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
|
Phase / wire |
3 phase 3 wires |
Control System:
Model:ED211ZFD2
＊Microcomputer digital control, and reliable work;
＊Digital display of parameters of diesel engine, and integration of measuring and monitoring;
＊Modularization of functional configuration, and integration of product structures;
＊Resistance to vibration, humidity, salt mist and high/low temperature;
＊Powerful ability to resist interference, convenient installation and use, and high performance-price ratio;
＊Remote monitoring of running parameters;
＊Automatic zero set of lubricating oil pressure
＊Accumulation of running period of diesel engine.
