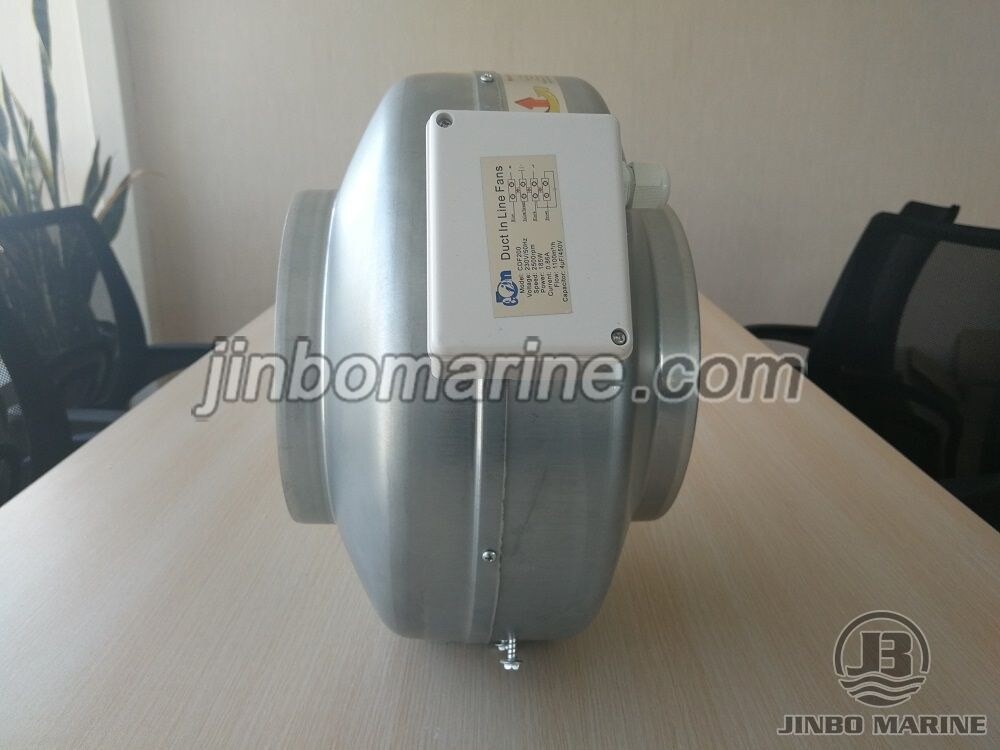

CDF Circular Duct Fan

Circular duct fan (also known as "UFO fan") is a new type of ventilation equipment, which can be accessed by the standard

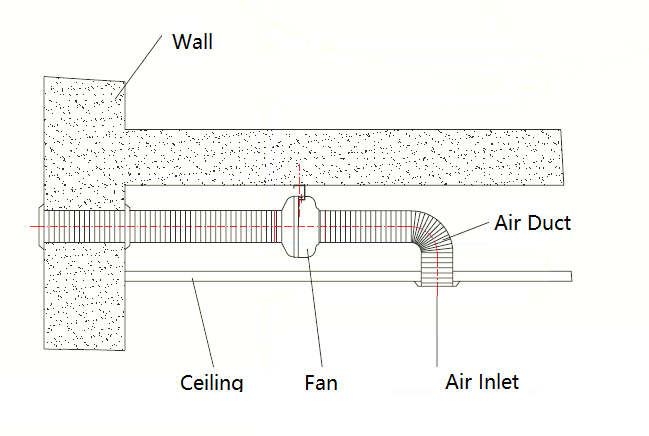

tube (into and out of outlet size of 100-315mm). With extremely low noise, high static pressure (350-830PA), small size, easy to install, light weight and so on. Applicable to hotels ventilation can be installed in the preceding pipeline, middle, end pressure for the relay.

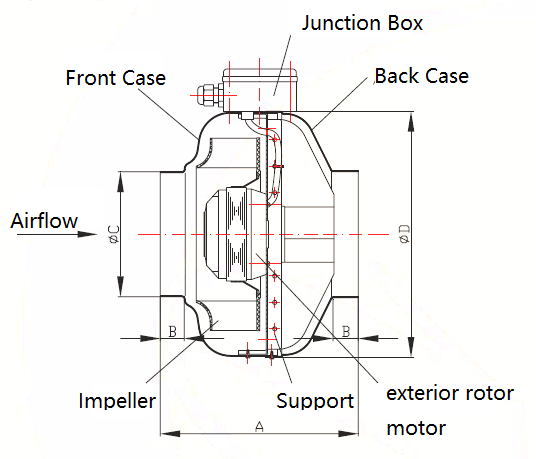

It is designed for direct connection in line with stardard diameter circular duction.

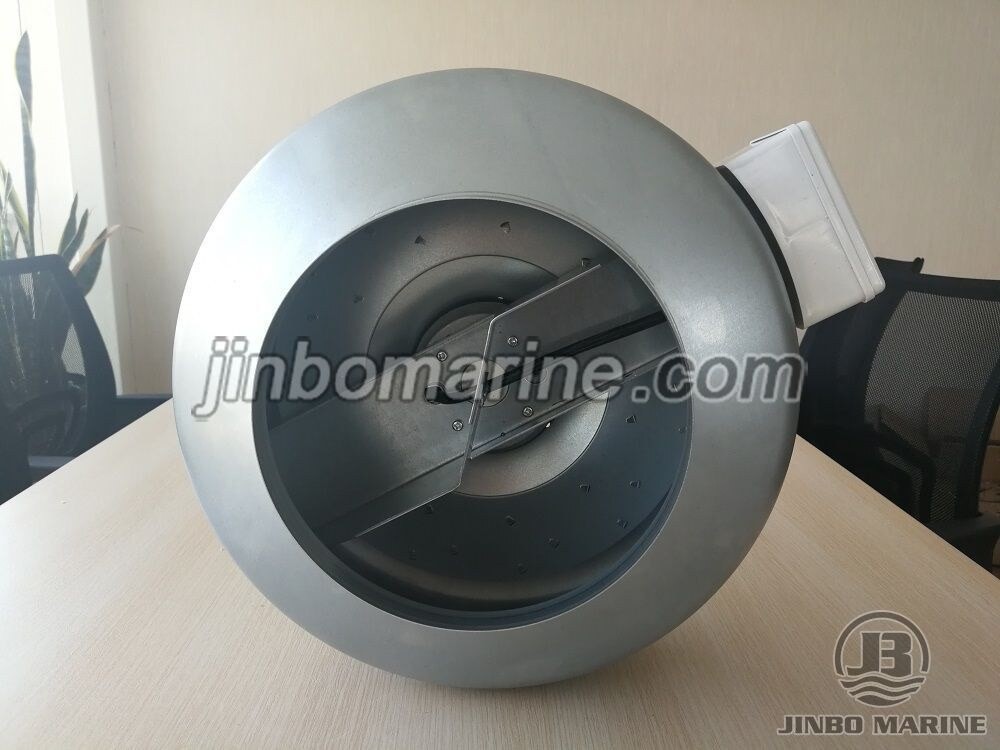

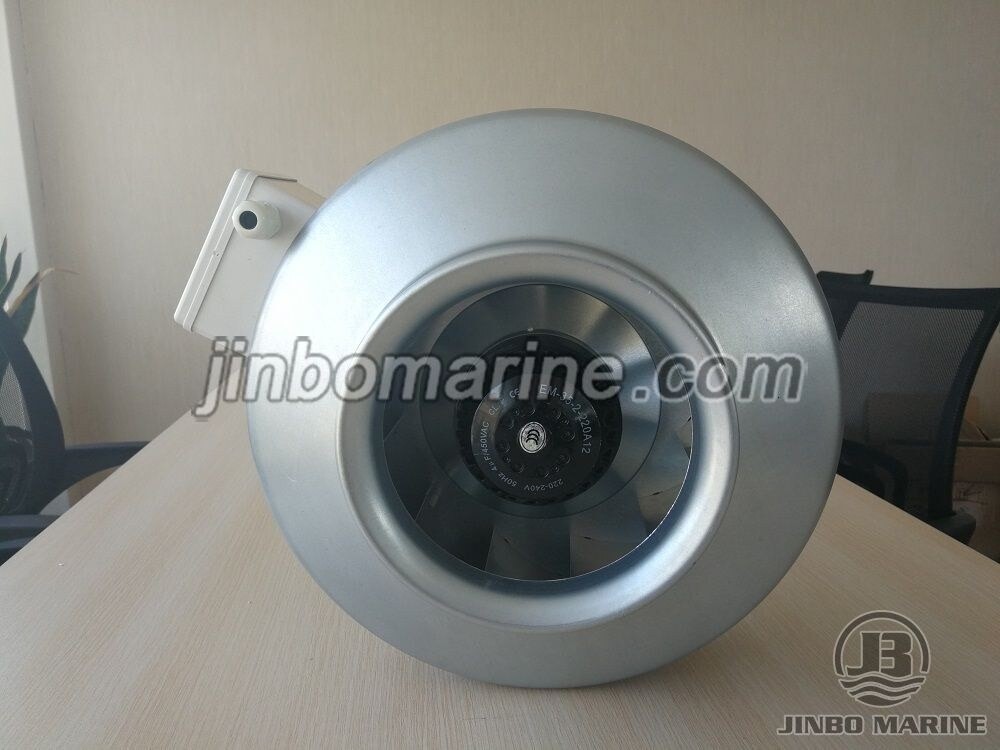

The impeller is designed for backward impeller,so it has large volnme and low noise and not over loading.
The fan is suitable for operation at any angle and deliver exceptional airflow performances against the high static pressures typically found in ducted ventilation systems.
It is used to ventilate in factory and the building.

Model No: CDF100, CDF150, CDF160, CDF200, CDF250, CDF315

Voltage/Frequency(V/Hz): 230/50`220/60`120/60`110/60

Operation Temp: –20℃～+60℃

Insulation class,motor:F
Motor protection: IP44
