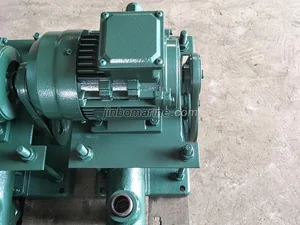

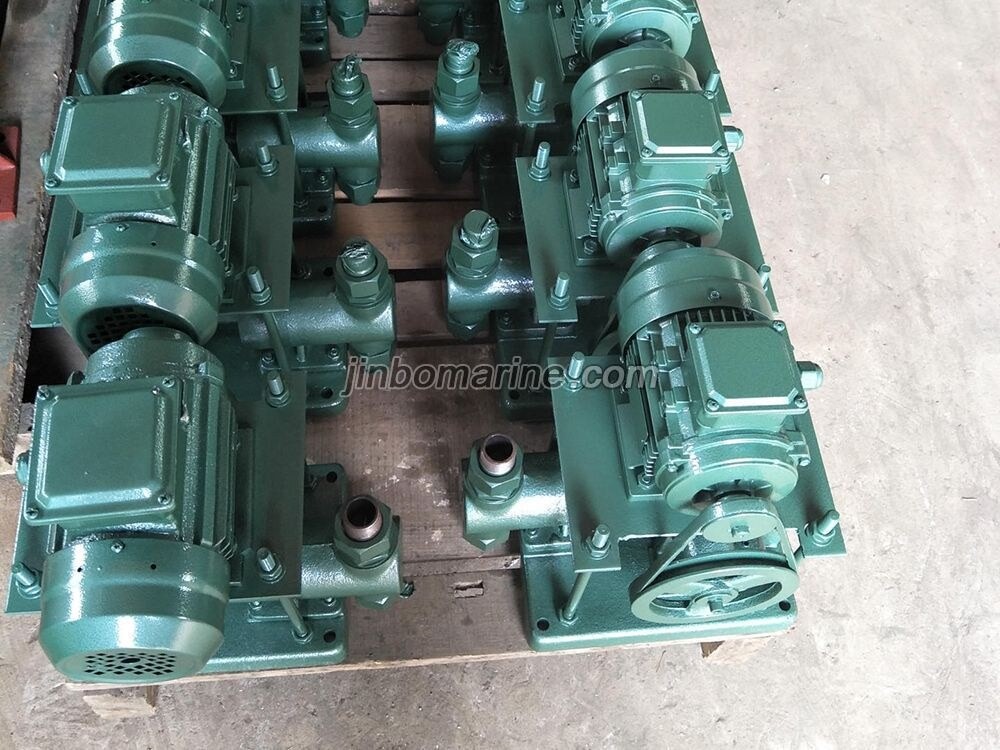

CDZ-250 Marine Electrical Plunger Pump
- Category:Reciprocating Pump
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Purpose:
The working medium of this electric reciprocating pump can be sea water, fresh water, oily sewage, etc. It can be used to pump oily sewage, bilge water, sea water, fresh water and other liquids that do not contain hard particles or fibers and whose temperature is not higher than 85℃.
Features:
1. This pump does not produce mechanical floatation
2. This pump is small in volume, compact in structure and small in floor area;
3. It is convenient for installation and operation, maintenance and repair.
Data Sheet:
No. | Unit | CDZ-50 | CDZ-100 | CDZ-250 | CDZ-500 | CDZ-1000 | CDZ-2000 | CDZ-3000 | CDZ-4000 | CDZ-5000 | CDZ-10000 | |
Head | Mpa | 0.20 | 0.20 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | |
Capacity | M3/h | 0.05 | 0.1 | 0.25 | 0.5 | 1 | 2 | 3 | 4 | 5 | 10 | |
Suction head | m | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
Reciprocating times |
min1 | 66 | 66 | 60 | 50 | 50 | 68 | 43 | 55 | 68 | 68 | |
stroke | mm | 17 | 30 | 40 | 64 | 64 | 80 | 90 | 90 | 90 | 120 | |
Pump cylinder diameter | mm | 38 | 38 | 50 | 60 | 85 | 90 | 100 | 100 | 100 | 118 | |
Suction and discharge diameter |
mm | 15 | 15 | 23 | 23 | 40 | 40 | 60 | 60 | 60 | 80 | |
Motor | Power | kw | 0.18 | 0.25 | 0.25 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
Voltage/power | V/HZ r/min | AC380/50 1400 | AC380/50 1400 | AC380/50 1400 | AC380/50 1400 | AC380/50 uoo | AC380/50 1400 | AC380/50 1400 | AC380/50 1400 | AC380/50 1400 | AC380/50 1400 | |
Model | YS-H 6324 | YS-H 7114 | YS-H 7114 | YS-H 7124 | YS-H 8014 | YS-H 8024 | YS-H 90S4 | YS-H 90L4 | YS-H lOOLi-4 | YS-H 100L-4 | ||
Pump Wight | kg | 15 | 15 | 25 | 30 | 40 | 50 | 140 | 140 | 140 | 230 | |
Size | L | mm | 305 | 305 | 345 | 420 | 450 | 470 | 860 | 860 | 860 | 1030 |
W | mm | 240 | 240 | 250 | 265 | 285 | 305 | 420 | 420 | 420 | 375 | |
H | mm | 300 | 300 | 368 | 395 | 400 | 510 | 585 | 585 | 585 | 700 |
