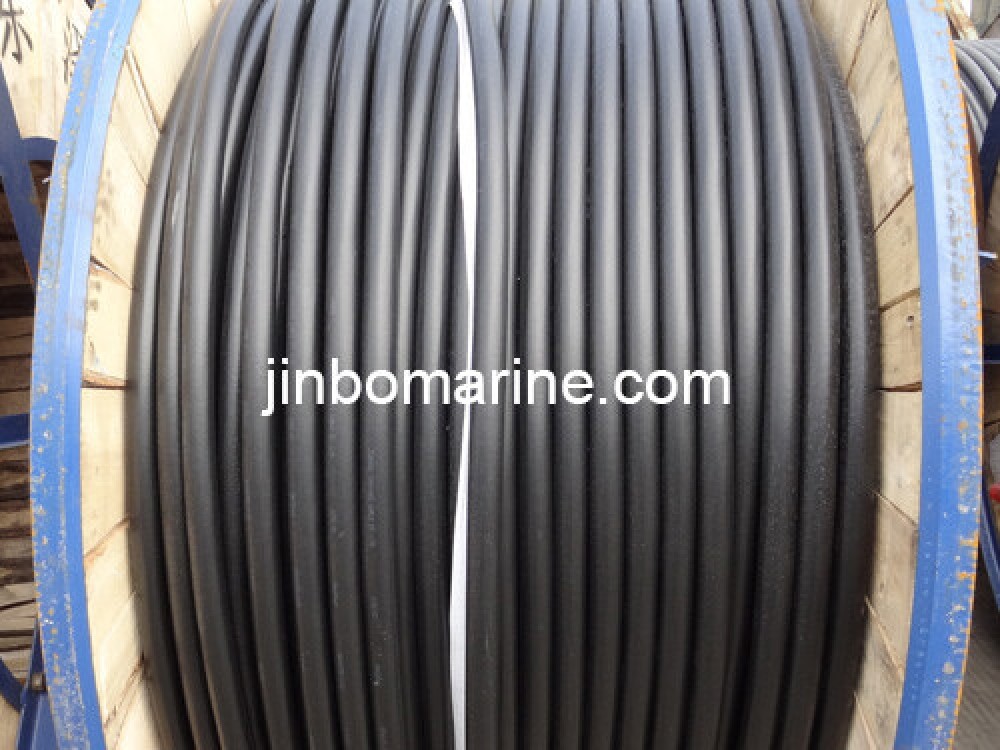

CEPJ85/SC Flame Retardant Marine Power & Lighting Cable 0/6/1KV(Armoured)
- Category:IEC 60092 Standard Cable (China Type)
- Material:Tinned Copper/EPR insulation/SHF2 sheath/Tinned Copper Wire Braided/SHF2 Outer Sheath
- Standards:IEC 60092
- Certificate:ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China CEPJ85/SC Flame Retardant Marine Power & Lighting Cable 0/6/1KV(Armoured):
CEPJ85/SC is tinned copper wire braided and Flame Retardant Marine Cable.
Cable Construction
Conductor: Tinned Copper. IEC 60228 Class 2
Insulation : EPR Insulation
Inner Covering: Halogen-free Thermoset Polyolefin(SHF2)
Armour : Copper Wire Braided
Outer Sheath : Halogen-free Thermoset Polyolefin(SHF2)
Standards
Design : IEC 60092-350, 353
Insulation Material : IEC 60092 -351
Sheath Material : IEC 60092-359
Flammability: IEC 60332-1 & IEC 60332-3 Category A
Halogen--free: IEC60754-1, IEC60754-2
Smoke Emission: IEC 61034-1, IEC61034-2
Cores & Size
Cores: 1, 2,3,4,5,7,10,12,14,16,19,24,37
Size (sqmm): 1.5, 2.5. 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300
Feature
Halogen-free, Low Smoke, Flame retardant
Application:
The cable is fixed installation, used for power, lighting and control in most area and open deck area in ship.
