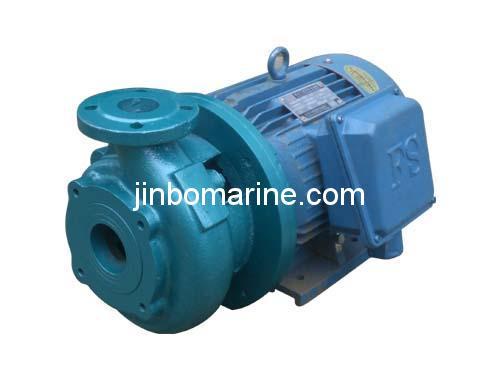

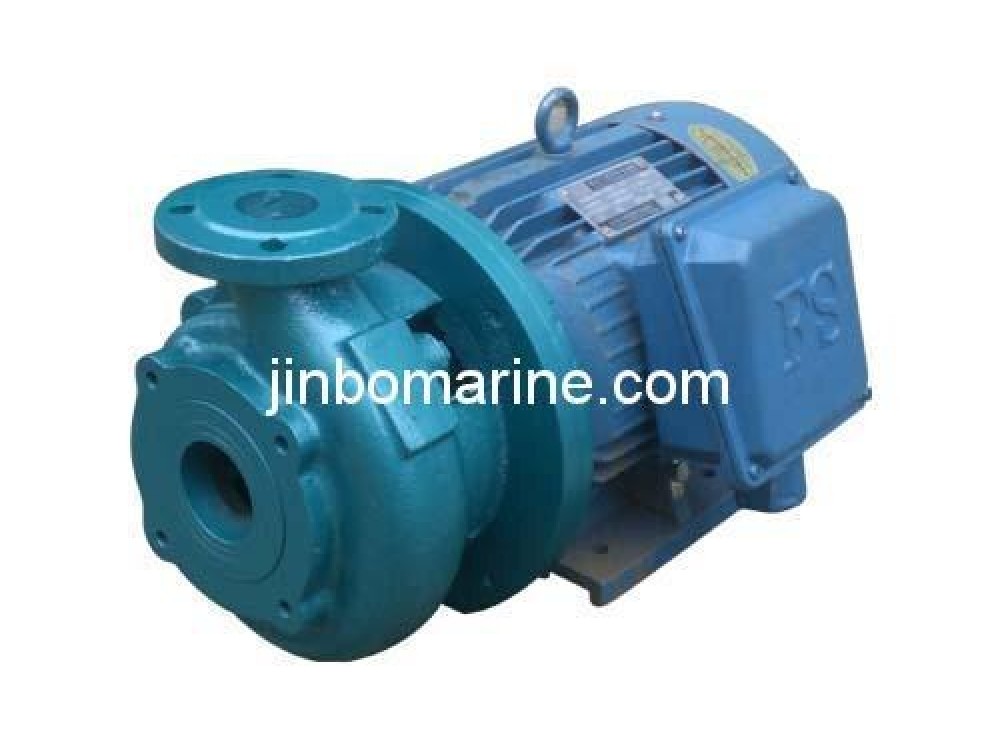

CF Series Marine Crushing Pump
- Category:Crushing Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CF Series Marine Crushing Pump:
CF Series Marine Crushing Pump
General description
CF series marine crushing pump is driven by marine motor.This pump features in intergration,cutting and non clogging drain,able to cut into pieces the long fibers,paper belts and other foreigh substances in the sewage before draining them out.Through unique design of pump body and impeller flow channel, the pump is widely used in light industry,paper making,textile,food,chemicals,power industry,mining,boats,urban sewage drainage and aquatic culture,the CF series marine crushing pump is the most ideal pump at present in china to deliver the medium containing solid particles,fibers,pulps and mixed suspensions.
Main parameter
| Type | Capacity | Head | Speed | NPSHr | Motor | |
| m3/h | m | r/min | m | Type | power(kw) | |
| 2CF5-25B | 5 | 25 | 2900 | 3.5 | Y100L-2H | 3 |
| 2CF5-30B | 5 | 30 | Y112M2-2H | 4 | ||
| 2CF5-35B | 5 | 35 | Y112M2-2H | 4 | ||
| 2CF10-20B | 10 | 20 | Y100L-2H | 3 | ||
| 2CF10-25B | 10 | 25 | Y112M2-2H | 4 | ||
| 2CF15-20B | 15 | 20 | Y100L-2H | 3 | ||
| 2CF15-25B | 15 | 25 | Y112M2-2H | 4 | ||
| 2CF20-20B | 20 | 20 | Y112M2-2H | 4 | ||
| 2.5CF5-8B | 5 | 8 | Y80M1-2H | 0.75 | ||
| 2.5CF5-10B | 5 | 10 | Y80M2-2H | 1.1 | ||
| 2.5CF5-15B | 5 | 15 | Y90S-2H | 1.5 | ||
| 2.5CF5-20B | 5 | 20 | Y90L-2H | 2.2 | ||
| 2.5CF10-11B | 10 | 11 | Y90S-2H | 1.5 | ||
| 2.5CF10-30B | 10 | 30 | Y132S1-2H | 5.5 | ||
| 2.5CF20-11B | 20 | 11 | Y90L-2H | 2.2 | ||
| 2.5CF20-30B | 20 | 30 | Y132S1-2H | 5.5 | ||
| 3CF5-40B | 5 | 40 | Y132S1-2H | 5.5 | ||
| 3CF10-35B | 10 | 35 | Y132S1-2H | 5.5 | ||
| 3CF10-40B | 10 | 40 | Y132S2-2H | 7.5 | ||
| 3CF20-35B | 20 | 35 | Y132S2-2H | 7.5 | ||
| 3CF20-40B | 20 | 40 | Y160M1-2H | 11 | ||
| 3CF20-45B | 20 | 45 | Y160M1-2H | 11 | ||
| 3CF20-50B | 20 | 50 | Y160M2-2H | 15 | ||
| 3CF20-55B | 20 | 55 | Y160M2-2H | 15 | ||
| 3CF30-15B | 30 | 15 | Y112M2-2H | 4 | ||
| 3CF30-35B | 30 | 35 | Y132S2-2H | 7.5 | ||
| 3CF30-50B | 30 | 50 | Y160M2-2H | 15 | ||
| 3CF40-50B | 40 | 50 | Y160L-2H | 18.5 | ||
| 3CF50-50B | 50 | 50 | Y160L-2H | 18.5 | ||
| 3CF60-50B | 60 | 50 | Y160L-2H | 18.5 | ||
