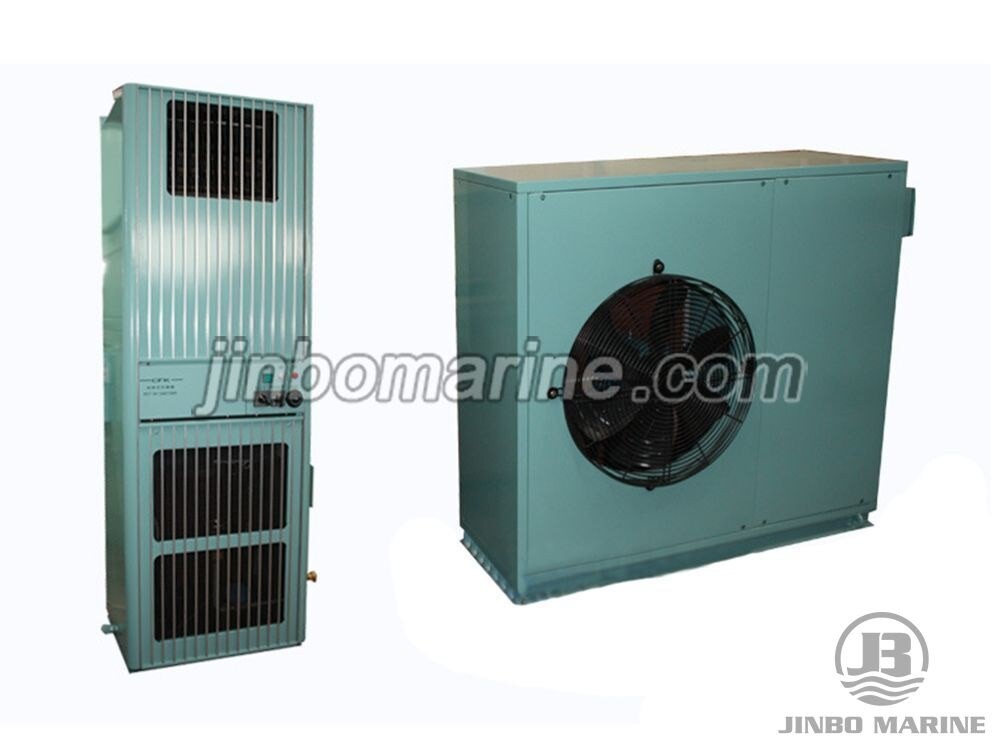

CFK(B) Marine Explosion Proof Split Air Conditioner
- Category:Marine Air Conditioner
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Description:
CFK(B) Marine Explosion Proof Split Air Conditioner is the cooling device, which can condition the air in chamber directly and composed by one marine explosion-proof condensing unit and all kinds of air handling units. The unit has features of new-design, easy-operation, stable-working, safety and convenience-maintaining etc. They are widely applied for all kinds of passenger ships, cargo ships and oil platforms etc.
Feature:
1. Mainly composed by compressor, condenser, drier evaporator and fan etc.
2. Choosing imported name brand refrigeration compressor
3. Main controls are imported famous brand
4. Heat exchanger is high efficient heat transferring pipe, which has strong anticorrosion
5. Motor, solenoid valve and junction box are explosion proof
6. Pressure test, vacuum test and running test have been done before delivery
7. Ready for operation after connected with water pipe, power source and charge freon
8. Design, manufacture and inspection comply with “CCS” and ”navy” standards
9. Special design and manufacture can be done upon user's requirement
Technical data:
Sheet 1:
Model | CFK(B)-3 | CFK(B)-5 | CFK(B)-6 | CFK(B)-8 | CFK(B)-9 | CFK(F)-10 | ||
Cooling capacity | KW | 3 | 5 | 6 | 8 | 9 | 10 | |
Heating capacity | KW | 1.8 | 3 | 3.6 | 4.8 | 5.4 | 6 | |
Explosion proof grade | ExdIIBT4Gb | |||||||
Cooling medium | R407C | |||||||
Heating type |
electric heating tube
with stainless steel fin or light tube |
|||||||
Power supply | Main circuit |
AC 380V 3φ 50Hz AC 440V 3φ 60Hz |
||||||
Control circuit | AC 220V 1φ 50Hz/ AC 220V 1φ 60Hz | |||||||
Protection devices |
Freon high
pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve |
|||||||
Compressor | Type | Hermetic scroll | ||||||
Motor power | KW | 1.8 | 1.9 | 2.3 | 3 | 3.3 | 3.7 | |
Evaporator | Copper tube with copper(Al)fin | |||||||
Indoor unit fan | Type |
marine low noise centrifugal explosion proof
fan |
||||||
Air Flow | m3/h | 650 | 850 | 1000 | 1400 | 1550 | 1700 | |
Motor power | W | 370 | 370 | 370 | 370 | 370 | 370 | |
Indoor unit fan | Type |
marine low noise axial
explosion proof fan |
||||||
Air Flow | m3/h | 2000 | 2800 | 3300 | 4400 | 5000 | 5500 | |
Motor power | W | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | |

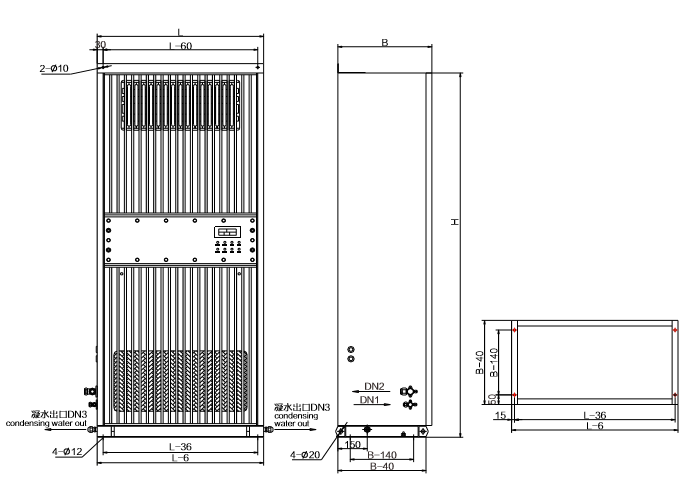

Dimension | Indoor unit | mm | 700x480x1600 | 850x480x1950 | 850x480x1783 | |||

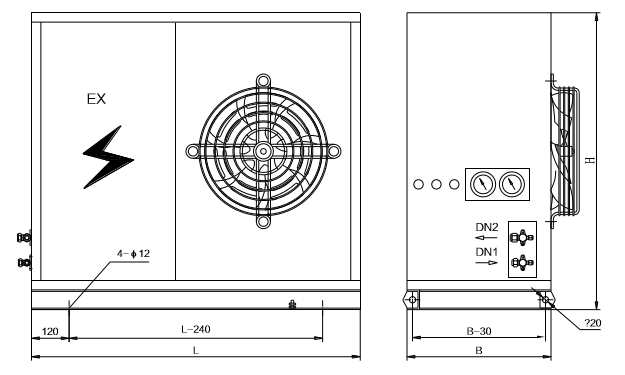

Outdoor unit | mm | 1030x460x870 | 1100x480x945 | 1130x480x950 | 1250x480x975 | 1250x480x975 | 1300x480x1150 | |
Indoor unit Weight | kg | 250 | 280 | 290 | 290 | 300 | 310 | |
Outdoor unit Weight | kg | 240 | 280 | 290 | 310 | 320 | 370 | |
Indoor
unit noise |
dB(A) | ≤60 | ≤63 | ≤63 | ≤64 | ≤65 | ≤65 | |
Outdoor unit noise | dB(A) | ≤72 | ≤73 | ≤73 | ≤73 | ≤73 | ≤75 |
Sheet 2:
Model | CFK(B)-11 | CFK(B)-12 | CFK(B)-13 | CFK(B)-14 | CFK(B)-15 | ||
Cooling capacity | KW | 11 | 12 | 13 | 14 | 15 | |
Heating capacity | KW | 6.6 | 7.2 | 7.8 | 8.4 | 9 | |
Explosion proof grade | ExdIIBT4Gb | ||||||
Cooling medium | R407C | ||||||
Heating type |
electric heating tube
with stainless steel fin or light tube |
||||||
Power supply | Main circuit |
AC 380V 3φ 50Hz AC 440V 3φ 60Hz |
|||||
Control circuit | AC 220V 1φ 50Hz/ AC 220V 1φ 60Hz | ||||||
Protection devices |
Freon high
pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve |
||||||
Compressor | Type | Hermetic scroll | |||||
Motor power | KW | 4 | 4.4 | 4.8 | 5.2 | 5.5 | |
Evaporator | Copper tube with copper(Al)fin | ||||||
Indoor unit fan | Type |
marine low noise centrifugal explosion proof
fan |
|||||
Air Flow | m3/h | 1900 | 2100 | 2200 | 2400 | 2600 | |
Motor power | W | 370 | 370 | 370 | 370 | 370 | |
Indoor unit fan | Type |
marine low noise axial
explosion proof fan |
|||||
Air Flow | m3/h | 6000 | 6600 | 7200 | 7700 | 8200 | |
Motor power | W | 0.75 | 0.75 | 0.55x2 | 0.55x2 | 0.55x2 | |
Dimension | Indoor unit | mm | 700x480x1600 | 850x480x1950 | 850x480x1783 | ||
Outdoor unit | mm | 1030x460x870 | 1100x480x945 | 1130x480x950 | 1250x480x975 | 1250x480x975 | |
Indoor unit Weight | kg | 325 | 335 | 340 | 365 | 370 | |
Outdoor unit Weight | kg | 380 | 410 | 420 | 440 | 450 | |
Indoor
unit noise |
dB(A) | ≤60 | ≤63 | ≤63 | ≤64 | ≤65 | |
Outdoor unit noise | dB(A) | ≤72 | ≤73 | ≤73 | ≤73 | ≤73 |
