CFK(F) Marine Air Cooled Split Air Conditioner
- Category:Marine Air Conditioner
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Description:

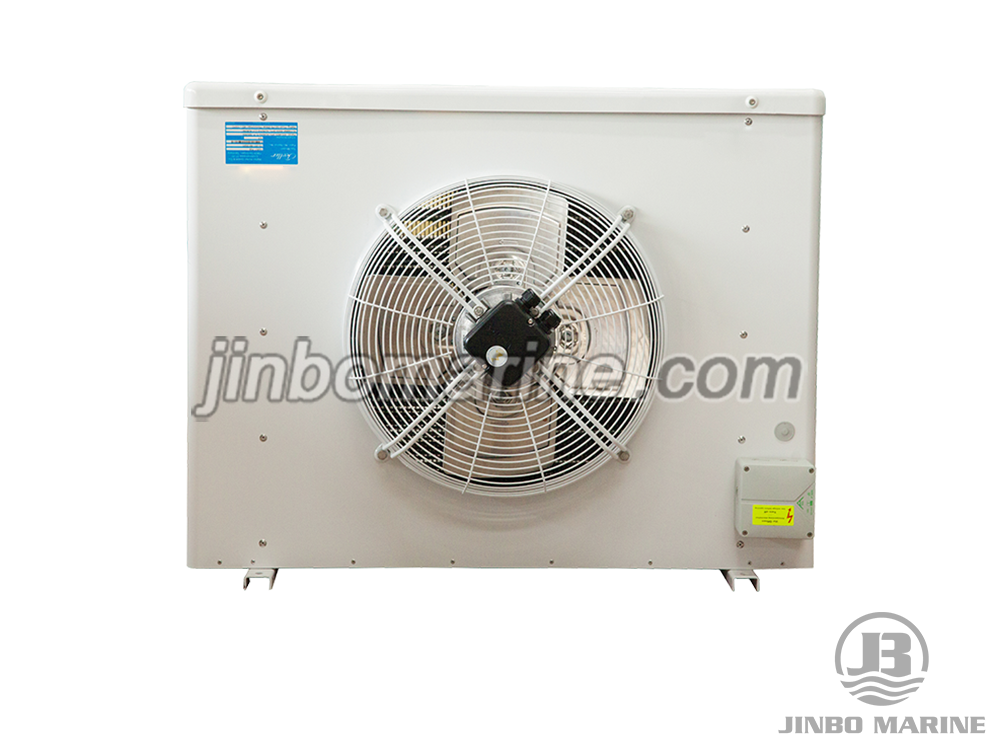

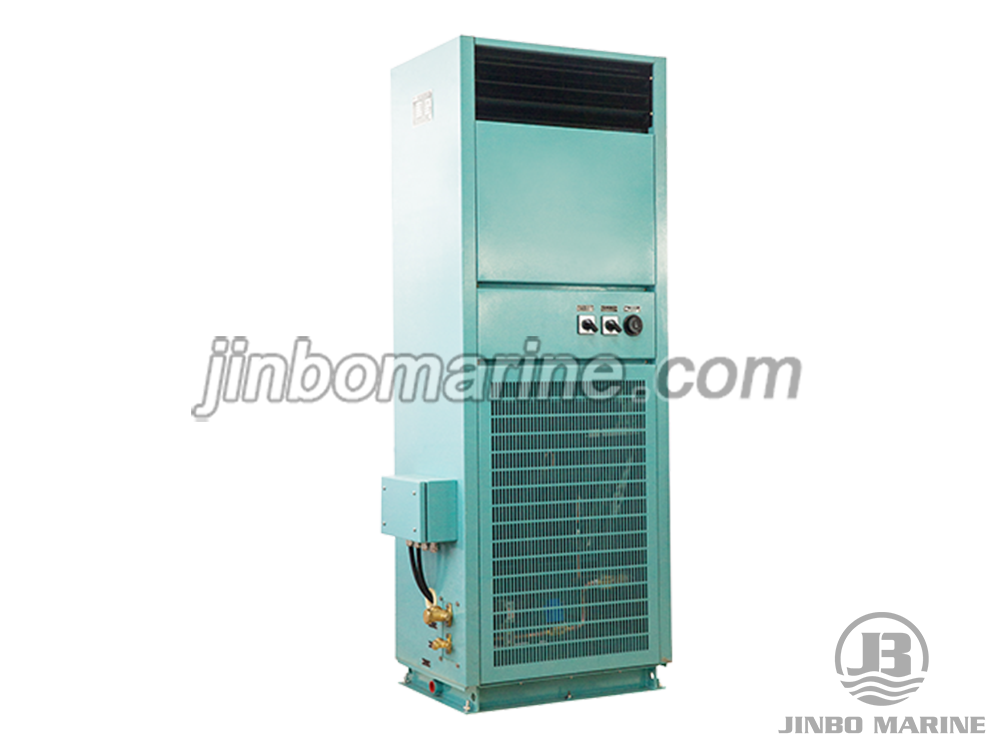

CFK(F) series marine air cooled split air conditioner is the cooling device, which can condition the air in chamber directly and composed by one marine air cooled condensing unit and all kinds of air handling units. The unit has features of new-design, easy-operation, stable working, safety and convenient-maintaining etc. They are widely applied for all kinds of passenger ships, cargo ships and oil platforms etc.
Feature:
1. Mainly composed by compressor, condenser, direct evaporator and fan etc.
2. Choosing imported name brand refrigeration compressor
3. Main controls are imported famous brand
4. Heat exchanger is high efficient heat transferring pipe, which has strong anticorrosion
5. Pressure test, vacuum test and running test have been done before delivery
6. Ready for operation after connected with water pipe, power source and charge freon.
7. Design, manufacture and inspection comply with relative“CCS”and“navy”standards
8. Special design and manufacture can be done upon user’s requirement.
Technical data:
Sheet 1:
Model | CFK(F)-3 | CFK(F)-4 | CFK(F)-5 | CFK(F)-6 | CFK(F)-7 | CFK(F)-8 | CFK(F)-10 | ||
Cooling capacity | KW | 3 | 4 | 5 | 6 | 7 | 8 | 10 | |
Heating capacity | KW | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | |
Cooling medium | R407C |
|
|||||||
Heating type |
electric heating tube
with stainless steel fin or light tube |
||||||||
Power supply | Main circuit |
AC 380V 3φ 50Hz AC 440V 3φ 60Hz |
|||||||
Control circuit | AC 220V 1φ 50Hz/ AC 220V 1φ 60Hz | ||||||||
Protection devices |
Freon high
pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve |
||||||||
Compressor | Type | Hermetic scroll | |||||||
Motor power | KW | 1.4 | 1.4 | 2 | 2.3 | 2.3 | 2.5 | 3.2 | |
Evaporator | Copper tube with copper(Al)fin | ||||||||
Indoor unit fan | Type |
low noise centrifugal fan |
|||||||
Air Flow | m3/h | 600 | 800 | 1000 | 1200 | 1200 | 1400 | 1800 | |
Motor power | W | 40 | 40 | 40 | 40 | 90 | 90 | 90 | |
Indoor unit fan | Type | low noise axial fan | |||||||
Air Flow | m3/h | 2000 | 2200 | 2800 | 3800 | 3800 | 4400 | 5400 | |
Motor power | W | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.55 | 0.55 | |

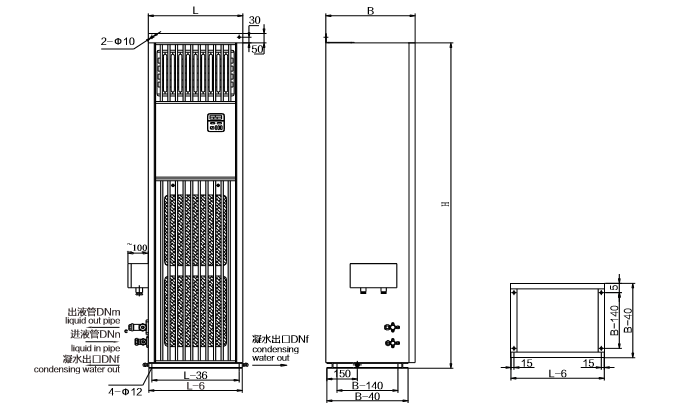

Dimension | Indoor unit | mm | 950x380x400 | 750x500x1000 | |||||
Indoor unit type |
|
wall mounted |
floor mounted |
||||||

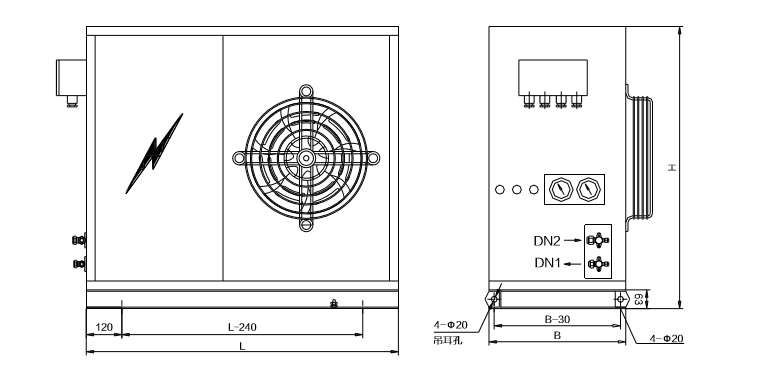

Outdoor unit | mm | 900x460x900 | 1050x460x950 | 1150x460x1000 | 1250x460x1150 | ||||
Indoor unit Weight | kg | 62 | 65 | 120 | 130 | 140 | 140 | 156 | |
Outdoor unit Weight | kg | 170 | 175 | 180 | 195 | 220 | 230 | 235 | |
Indoor
unit noise |
dB(A) | ≤54 | ≤54 | ≤55 | ≤56 | ≤56 | ≤57 | ≤58 | |
Outdoor unit noise | dB(A) | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤78 | ≤78 |
Sheet 2:
Model | CFK(F)-11 | CFK(F)-12 | CFK(F)-13 | CFK(F)-14 | CFK(F)-15 | CFK(F)-20 | CFK(F)-25 | ||
Cooling capacity | KW | 11 | 12 | 13 | 14 | 15 | 20 | 25 | |
Heating capacity | KW | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | |
Cooling medium | R407C |
|
|||||||
Heating type |
electric heating tube
with stainless steel fin or light tube |
||||||||
Power supply | Main circuit |
AC 380V 3φ 50Hz AC 440V 3φ 60Hz |
|||||||
Control circuit | AC 220V 1φ 50Hz/ AC 220V 1φ 60Hz | ||||||||
Protection devices |
Freon high
pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve |
||||||||
Compressor | Type | Hermetic scroll | |||||||
Motor power | KW | 3.8 | 3.8 | 4.7 | 4.9 | 5.6 | 6.1 | 7 | |
Evaporator | Copper tube with copper(Al)fin | ||||||||
Indoor unit fan | Type |
low noise centrifugal fan |
|||||||
Air Flow | m3/h | 2200 | 2400 | 2600 | 2800 | 3000 | 4000 | 5000 | |
Motor power | W | 90 | 90 | 90x2 | 90x2 | 90x2 | 90x2 | 90x2 | |
Indoor unit fan | Type | low noise axial fan | |||||||
Air Flow | m3/h | 6000 | 6300 | 7200 | 7600 | 8000 | 11500 | 13000 | |
Motor power | W | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 0.55x2 | 0.55x2 | |
Dimension | Indoor unit | mm | 600x400x1750 | 1000x460x1780 | 1100x500x1783 | 1200x500x1800 | |||
Indoor unit type |
floor mounted |
||||||||
Outdoor unit | mm | 1300x460x1250 | 1300x460x1350 | 1400x460x1350 | 1500x500x1500 | ||||
Indoor unit Weight | kg | 165 | 170 | 185 | 192 | 210 | 230 | 270 | |
Outdoor unit Weight | kg | 260 | 280 | 290 | 310 | 320 | 340 | 400 | |
Indoor
unit noise |
dB(A) | ≤60 | ≤60 | ≤61 | ≤61 | ≤61 | ≤63 | ≤65 | |
Outdoor unit noise | dB(A) | ≤78 | ≤78 | ≤78 | ≤79 | ≤79 | ≤79 | ≤80 |
