Chain Cable
- Category:Anchor Chain
- Material:CM490/CM690
- Standards:Rules of International Class Society
- Certificate:ABS,LR, BV, GL,DNV,RINA, NK, KR, RS, IRS, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

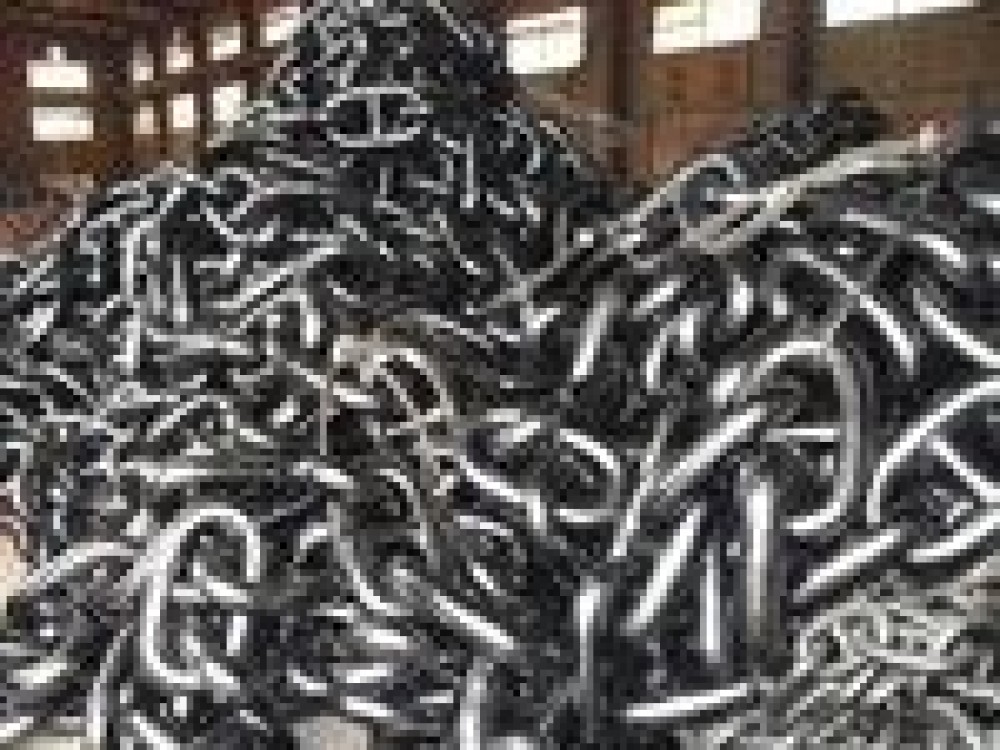

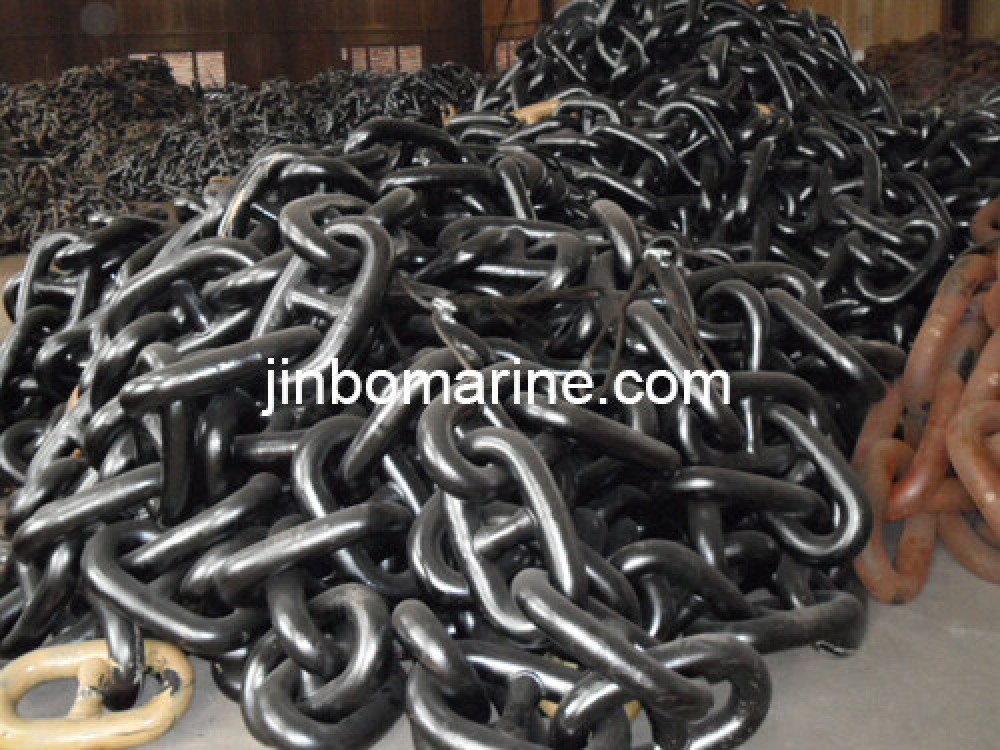

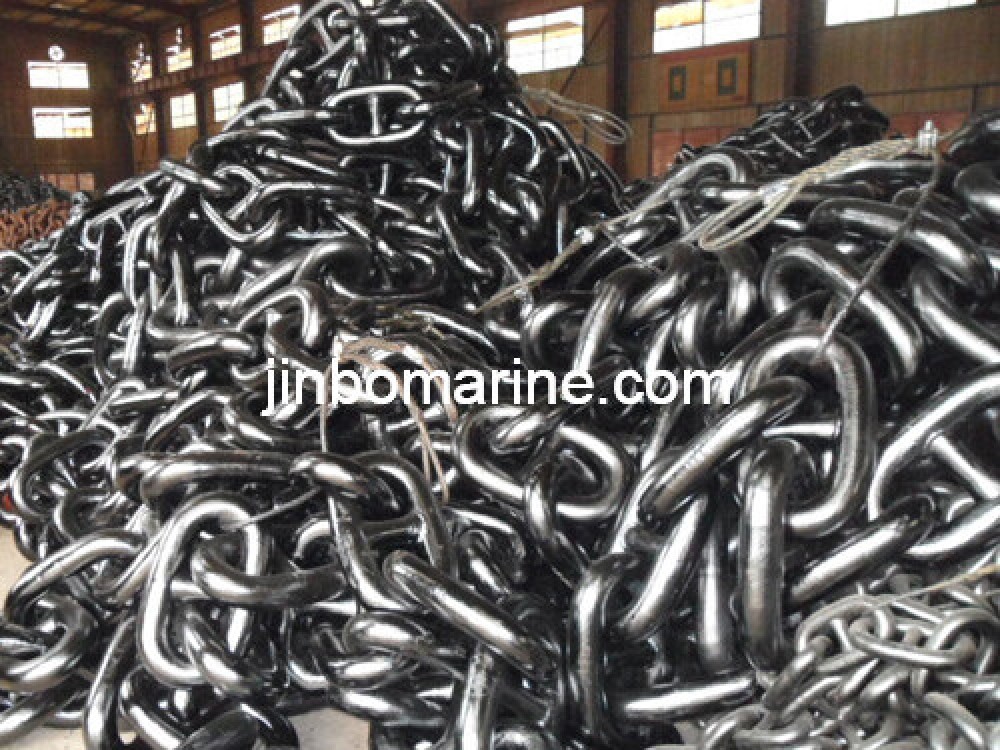

China Chain Cable:
Chain cable is used for shipbuilding, ship repair and replacement, all sizes can be supplied with Class Certificate like ABS, LR, BV, DNV, GL, RINA, NK,KR,RS, IRS and CCS.
Technical Specification:
Material: CM490/CM690
Grade: NV K2, NV K3, Grade 2, Grade 3
Size: 12.5mm to 132mm
Joining Forms of Anchor Chain
Chain Cable Proof Load and Breaking Load:
| Chain Diameter mm | Proof Load | Breaking Load | Chain Diameter mm | Minimum Weight Kg per lenght of 27,5 m | ||
| Grade 2 kN | Grade 3 kN | Grade 2 Kn | Grade 3 kN | |||
| 16 | 107 | 150 | 150 | 216 | 16 | 160 |
| 17.5 | 127 | 179 | 179 | 256 | 17.5 | 190 |
| 19 | 150 | 211 | 211 | 301 | 19 | 225 |
| 20.5 | 175 | 244 | 244 | 349 | 20.5 | 265 |
| 22 | 200 | 280 | 280 | 401 | 22 | 300 |
| 24 | 237 | 332 | 332 | 476 | 24 | 360 |
| 26 | 278 | 389 | 389 | 556 | 26 | 420 |
| 28 | 321 | 449 | 449 | 642 | 28 | 490 |
| 30 | 368 | 514 | 514 | 735 | 30 | 565 |
| 32 | 417 | 583 | 583 | 833 | 32 | 635 |
| 34 | 468 | 655 | 655 | 937 | 34 | 720 |
| 36 | 523 | 732 | 732 | 1050 | 36 | 800 |
| 38 | 581 | 812 | 812 | 1160 | 38 | 895 |
| 40 | 640 | 896 | 896 | 1280 | 40 | 995 |
| 42 | 703 | 981 | 981 | 1400 | 42 | 1100 |
| 44 | 769 | 1080 | 1080 | 1540 | 44 | 1200 |
| 46 | 837 | 1170 | 1170 | 1680 | 46 | 1320 |
| 48 | 908 | 1280 | 1280 | 1810 | 48 | 1440 |
| 50 | 981 | 1370 | 1370 | 1960 | 50 | 1560 |
| 52 | 1060 | 1480 | 1480 | 2110 | 52 | 1675 |
| 54 | 1140 | 1590 | 1590 | 2270 | 54 | 1820 |
| 56 | 1220 | 1710 | 1710 | 2430 | 56 | 1935 |
| 58 | 1290 | 1810 | 1810 | 2600 | 58 | 2075 |
| 60 | 1380 | 1940 | 1940 | 2770 | 60 | 2220 |
| 62 | 1470 | 2060 | 2060 | 2940 | 62 | 2365 |
| 64 | 1560 | 2190 | 2190 | 3130 | 64 | 2550 |
| 66 | 1660 | 2310 | 2310 | 3300 | 66 | 2695 |
| 68 | 1750 | 2450 | 2450 | 3500 | 68 | 2890 |
| 70 | 1840 | 2580 | 2580 | 3690 | 70 | 3030 |
| 73 | 1990 | 2790 | 2790 | 3990 | 73 | 3290 |
| 76 | 2150 | 3010 | 3010 | 4300 | 76 | 3555 |
| 78 | 2260 | 3160 | 3160 | 4500 | 78 | 3755 |
| 81 | 2410 | 3380 | 3380 | 4820 | 81 | 4035 |
| 84 | 2580 | 3610 | 3610 | 5160 | 84 | 4395 |
| 87 | 2750 | 3850 | 3850 | 5500 | 87 | 4760 |
| 90 | 2920 | 4090 | 4090 | 5840 | 90 | 5005 |
| 92 | 3040 | 4260 | 4260 | 6080 | 92 | 5200 |
| 95 | 3230 | 4510 | 4510 | 6440 | 95 | 5570 |
| 97 | 3350 | 4680 | 4680 | 6690 | 97 | 5760 |
| 100 | 3530 | 4940 | 4940 | 7060 | 100 | 6130 |
| 102 | 3660 | 5120 | 5120 | 7320 | 102 | 6505 |
| 105 | 3860 | 5390 | 5390 | 7700 | 105 | 6885 |
| 107 | 3980 | 5570 | 5570 | 7960 | 107 | 7140 |
| 111 | 4250 | 5940 | 5940 | 8480 | 111 | 7715 |
| 114 | 4440 | 6230 | 6230 | 8890 | 114 | 8085 |
| 117 | 4650 | 6510 | 6510 | 9300 | 117 | 8445 |
| 120 | 4860 | 6810 | 6810 | 9720 | 120 | 9110 |
| 122 | 5000 | 7000 | 7000 | 9990 | 122 | 9240 |
| 124 | 5140 | 7200 | 7200 | 10280 | 124 | 9700 |
| 127 | 5350 | 7490 | 7490 | 10710 | 127 | 10040 |
| 130 | 5570 | 7800 | 7800 | 11140 | 130 | 10420 |
| 132 | 5720 | 8000 | 8000 | 11420 | 132 | 10910 |
