Chain grapnel

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

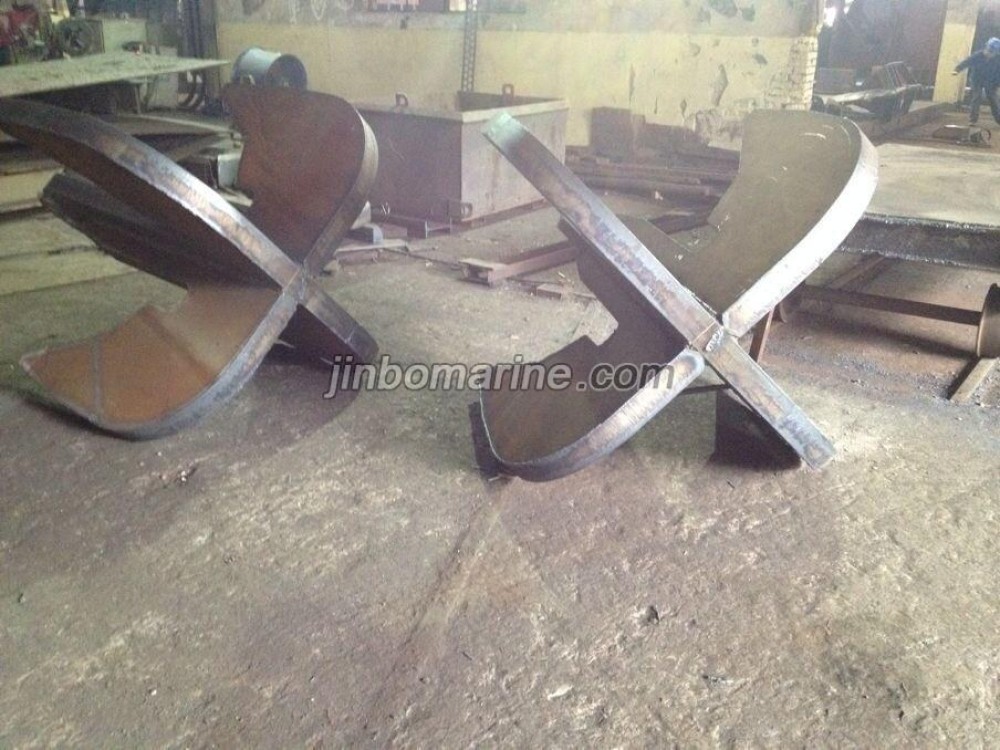

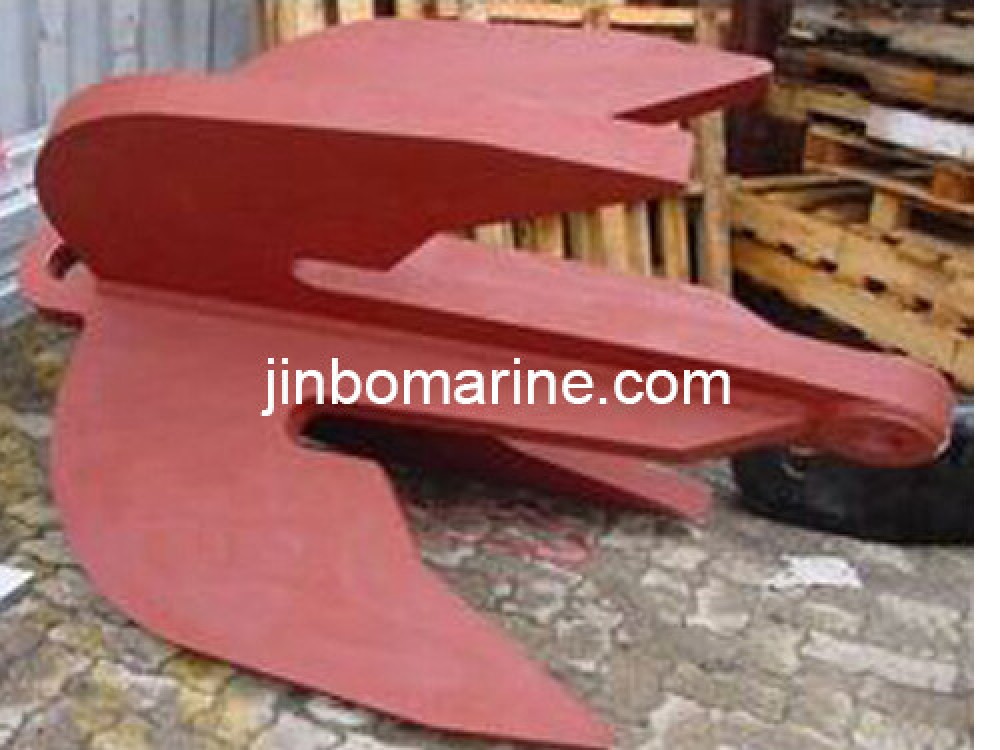

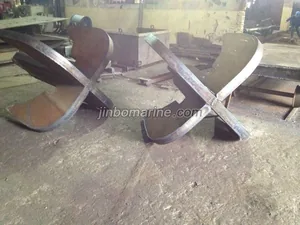

China Chain grapnel:

It designedas a "Fishing" tool primarily for the purpose of recovering andanchor and chain which has become detached and has fallen to the seabed.
The Head Eye is attached to the trawl cable and the Tail Eye may be attached toa trailing cable for the purpose of withdrawing the Grapnel in the event thatthe flukes engage with and "immovable" object on the seabed

Feature:

1.Excellent quality and competitive price .

2.Durable, long lifetime.
3. Standard or customerized.

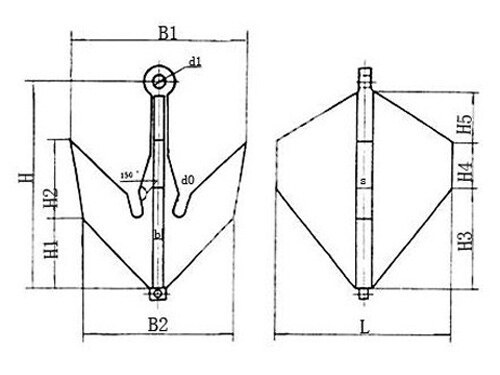

CHAIN GRAPNEL
Model d0 d1 b S B1 B2 L H1 H2 H3 H4 H5 H Shackle Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) CB 547-76 (kg)
22 26 36 22 34 352 296 354 140 154 200 90 83 410 a6 27.3
28 32 47 30 45 463 390 463 183 203 263 120 103 538 a9 62
34 40 57 37 56 574 484 574 226 251 326 150 134 667 a11 118
40 46 67 44 66 685 577 685 270 300 390 178 160 795 a13 197
46 52 77 52 77 796 670 796 314 348 452 206 190 925 a14 310
53 60 83 59 88 907 764 907 358 397 515 235 220 1054 a15 460
62 70 94 74 112 1147 967 1147 453 502 650 298 290 1333 a16 945
67 75 104 80 121 1240 1045 1240 490 543 704 322 310 1440 a17 1190
72 80 115 86 130 1332 1123 1332 526 583 756 346 330 1548 a19 1480
77 85 120 92 139 1425 1200 1425 562 624 810 370 356 1656 a20 1800
82 90 125 98 148 1517 1280 1517 600 664 860 394 384 1763 a22 2170
87 97 135 104 156 1610 1357 1610 635 705 914 418 400 1870 a23 2600
92 102 140 110 166 1702 1435 1702 672 745 966 442 430 1978 a24 3085
97 107 145 116 175 1795 1513 1795 708 786 1020 466 455 2086 a25 3620
102 112 150 122 184 1887 1590 1887 745 826 1070 490 480 2193 — 4120
107 117 160 128 192 1980 1670 1980 780 867 1124 514 502 2300 — 4840
112 122 170 134 202 2072 1747 2072 818 907 1176 538 524 2408 — 5570
117 127 175 140 210 2165 1825 2165 854 948 1230 560 551 2516 — 6340
122 132 180 146 220 2257 1903 2257 890 988 1280 585 580 2625 — 7190
