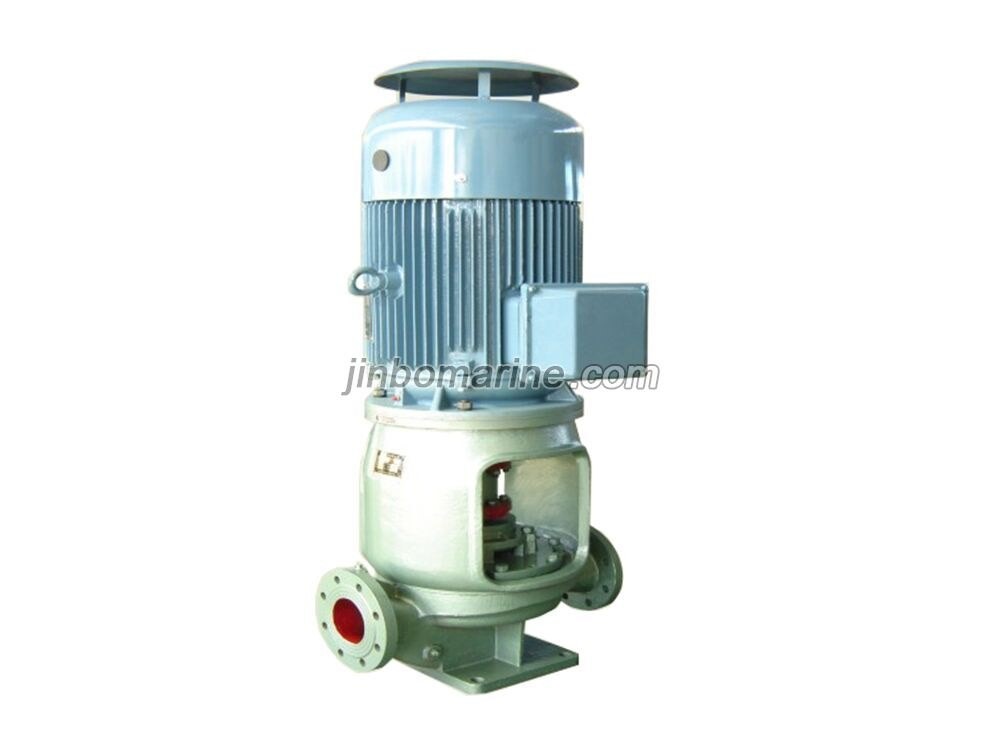

CIHG Marine Vertical Centrifugal Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

APPLICATION:

1.CIHG pump is suitable for liquids containing no solid particle, corrosive but similar to water in viscosity,

it can be applied to ship petroleum, metallurgy electric power, paper making, food, pharmacy and synthetic fiber, service temperature -20+120℃.

CIHRG pump can be applied to ship, metallurgy, chemical industry, textile industry. paper making, and situations such as restaurant, hotel, pressurized boiler circulation system and housing heating. service temperature <200℃.

CYG pump is suitable for transportation of petroleum products as gasoline, kerosene, diesel oil, as well as synthetic fiber, service temperature 20 -+120C.

WORKING CONDITION:

1. The upper limit of pump wording press is not more than 1.6Mpe, i.e. press in pump suction opening plus pump heads 1.6Mpa. If the press exceeds 1.6Mpa when ordering, we will accordingly adjust and process the flow parts of pump using cast steel).

Clean water or other liquids similar to clean water in physical chemistry property is suitable for transportation.9if conveyance medium contains fine particle,it should be put forward in advance so that we will equip the pump with wearable mechanical seal).

Ambient temperaturec 40C, height above ses level 1000meters, relative humidity < ninety five percent.
