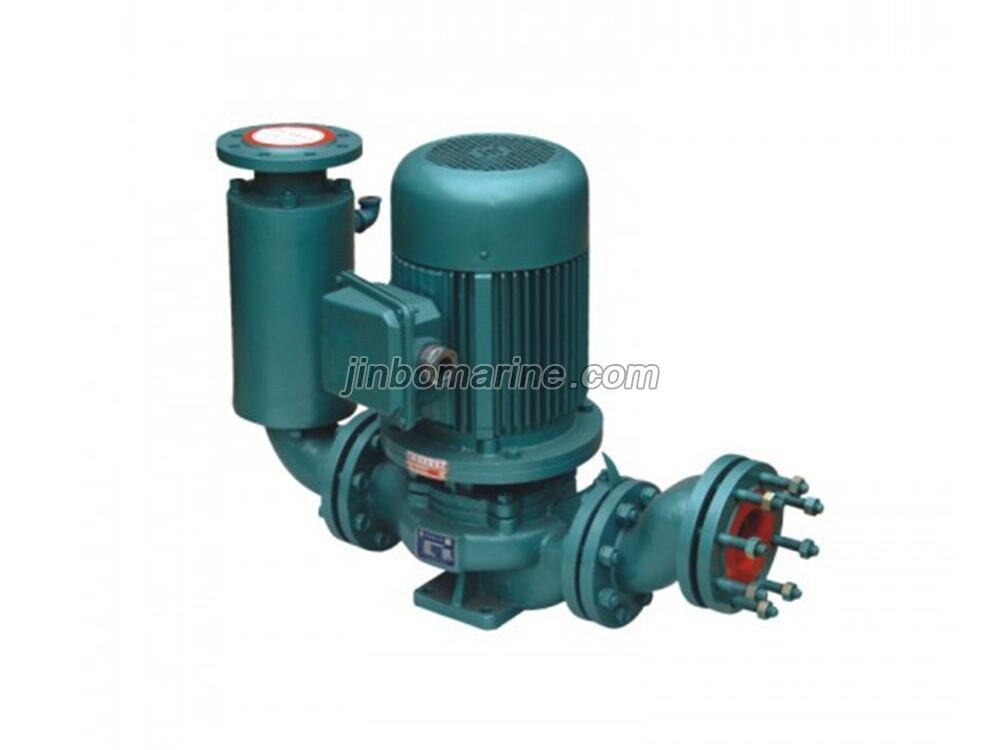

CISG Single Stage Single Suction Marine Pipeline Centrifugal Pump
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:

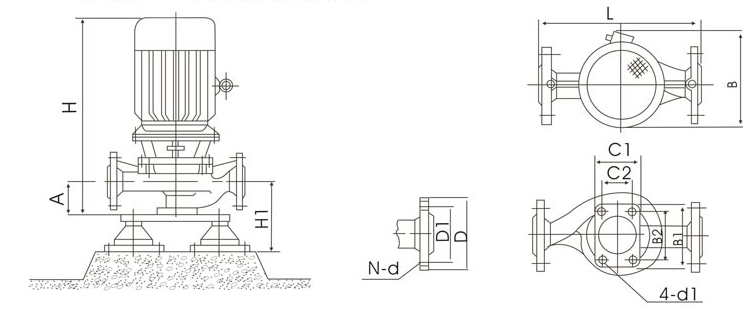

Installation:

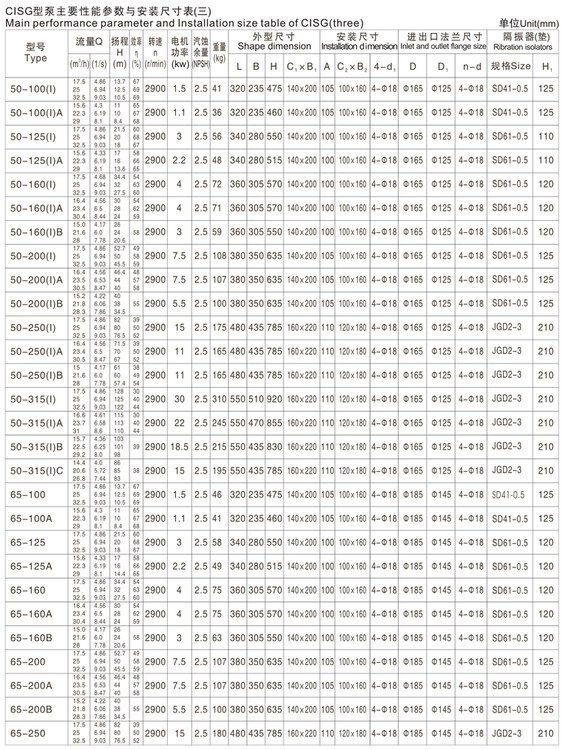

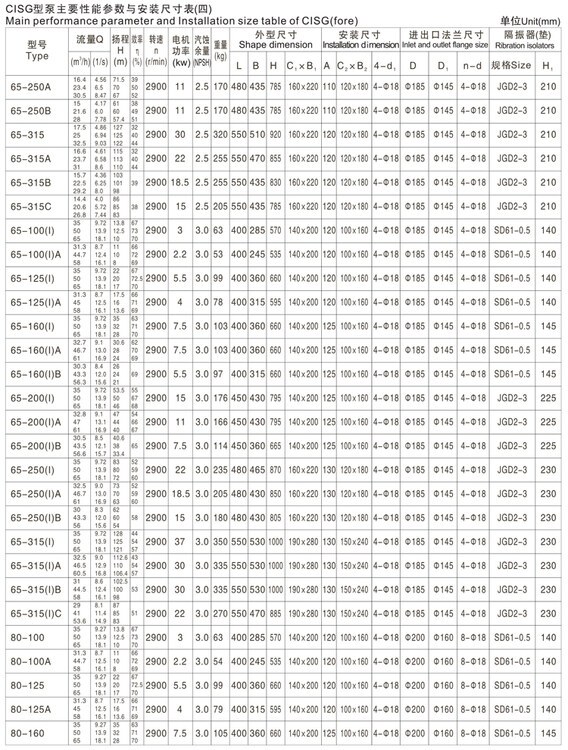

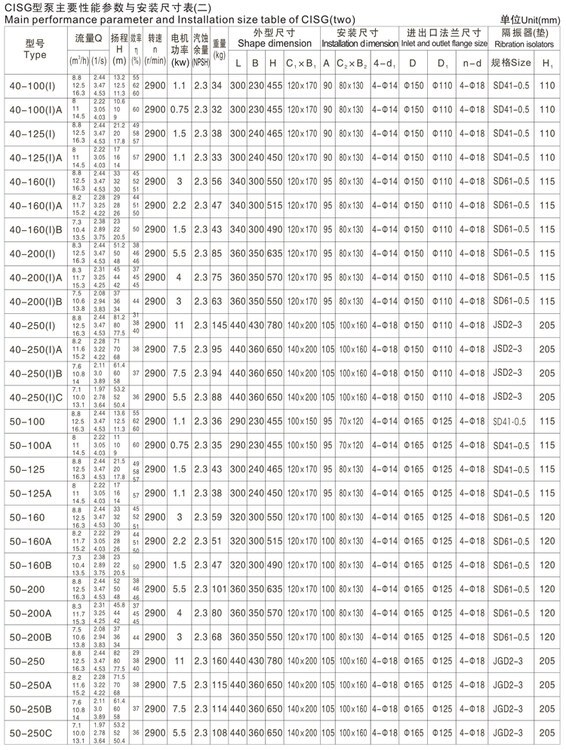

Type |
Q (m3/h) |
Head (m) |
Speed (r/min) |
Power (kw) |
Weight (kg) |
CISG15-80 | 1.1 | 8.5 | 2800 | 0.18 | 17 |
CISG20-110 | 1.8 | 16 | 2800 | 0.37 | 25 |
CISG20-160 | 1.8 | 33 | 2900 | 0.75 | 29 |
CISG25-110 | 2.8 | 16 | 2900 | 0.55 | 26 |
CISG25-125 | 2.8 | 20.6 | 2900 | 0.75 | 28 |
CISG25-125A | 2.5 | 17 | 2900 | 0.55 | 27 |
CISG25-160 | 2.8 | 33 | 2900 | 1.5 | 39 |
CISG25-160A | 2.6 | 29 | 2900 | 1.1 | 34 |
32-100(1) | 4.4 | 28 | 2900 | 0.75 | 32 |
32-125 | 3.5 | 13.2 | 2900 | 0.75 | 28 |
32-125A | 3.1 | 22 | 2900 | 0.55 | 28 |
32-160 | 4.4 | 17.6 | 2900 | 1.5 | 39 |
32-160A | 2.8 | 33.2 | 2900 | 1.1 | 38 |
32-160(1) | 4.4 | 29 | 2900 | 2.2 | 47 |
32-200(1) | 3.9 | 33.2 | 2900 | 4 | 43 |
32-200(1)A | 4.4 | 50.5 | 2900 | 2.2 | 37 |
40-100 | 3.9 | 44.6 | 2900 | 0.55 | 32 |
40-100A | 3.9 | 13.2 | 2900 | 0.37 | 32 |
40-125 | 4.4 | 10.6 | 2900 | 1.1 | 34 |
40-125A | 3.9 | 21 | 2900 | 0.75 | 33 |
40-160 | 4.4 | 17.6 | 2900 | 2.2 | 47 |
40-160A | 4.1 | 32 | 2900 | 1.5 | 43 |
40-160B | 3.8 | 29 | 2900 | 1.1 | 38 |
40-200 | 4.4 | 25.5 | 2900 | 5.5 | 74 |
40-200A | 4.1 | 51 | 2900 | 4 | 62 |
40-200B | 3.7 | 45 | 2900 | 3 | 52 |
40-250 | 4.4 | 38 | 2900 | 7.5 | 105 |
40-250A | 4.1 | 82 | 2900 | 5.5 | 98 |
40-250B | 3.8 | 72 | 2900 | 4 | 77 |
Other model:
