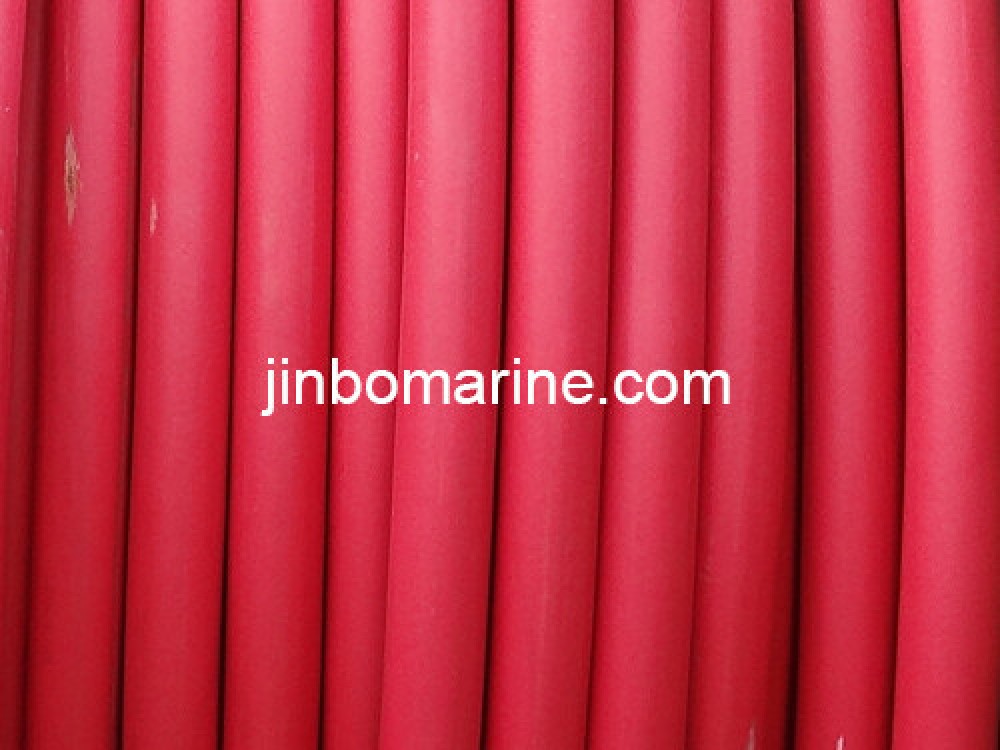

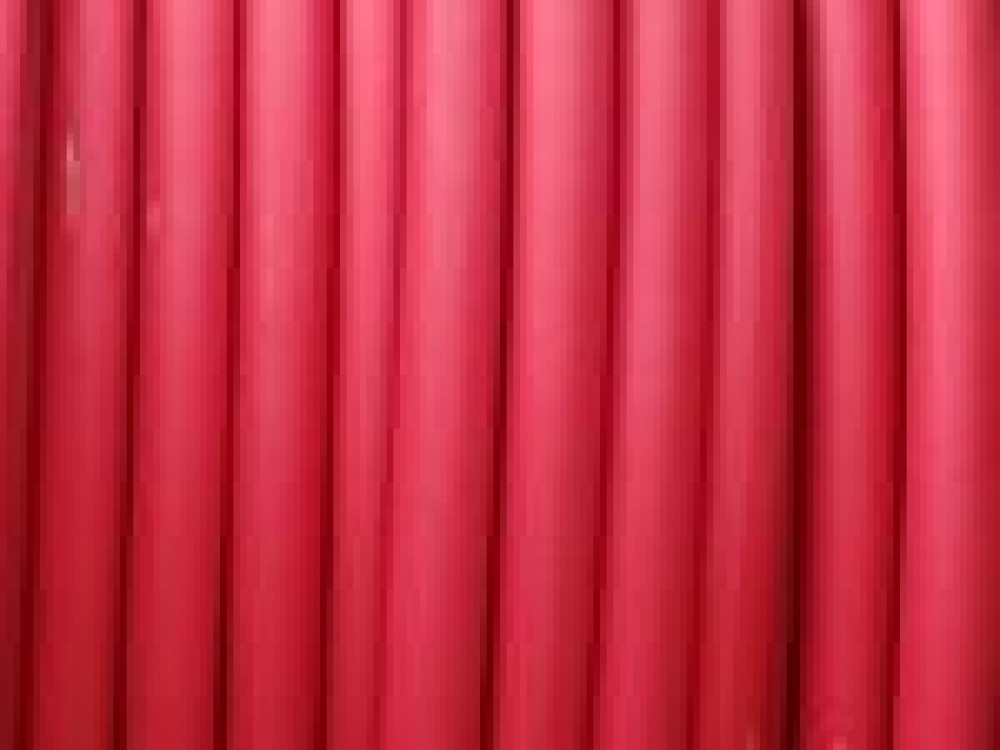

CJ96/NC Fire Resistant Marine Power & Lighting Cable 0/6/1KV(Armoured)

CJ96/NC Cable is Galvanized Steel Wire Braided Marine Power Cable, the color of cable is red, black, grey and blue.

Conductor: Tinned Copper. IEC 60228 Class 2

Mica Tape

Insulation : XLPE Insulation

Inner Covering: None

Armour : Galvanized Steel Wire Braided

Outer Sheath : Halogen-free Cross Linked Thermoplastic Polyolefin(SHF1)

Design : IEC 60092-350, 353

Insulation Material : IEC 60092 -351

Sheath Material : IEC 60092-359

Flammability: IEC 60331

Halogen--free: IEC60754-1, IEC60754-2

Smoke Emission: IEC 61034-1, IEC61034-2

Cores: 1, 2,3,4,5,7,10,12,14,16,19,24,37

Size (sqmm): 1.5, 2.5. 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300

Halogen-free, Low Smoke, Fire-Retardant.

We can delivery around the world according to Incoterms 2010.
