CJHD-SX-20/24A Marine Three Phase Battery Charger Power Supply

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

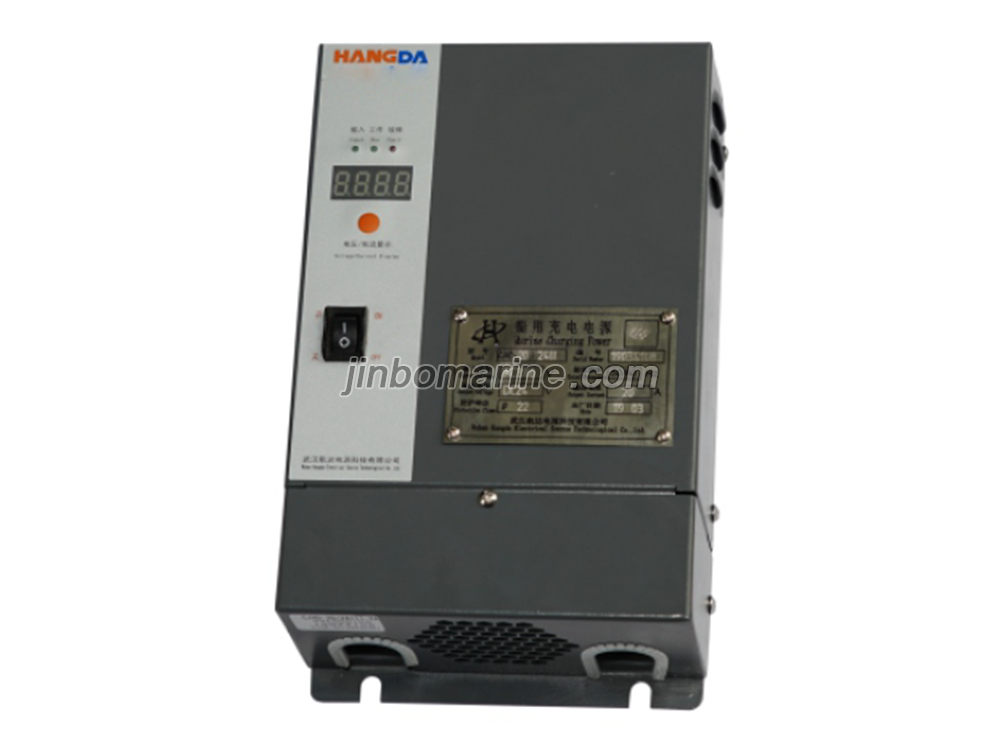

CJHD-SX-20/24A Marine Three Phase Battery Charger Power Supply multifunctional charging power source composed of IGBT, field effect power tube and pulse width or frequency modulation integrated controller using high frequency PWM or PFM modulation technology. Stable and reliable performance.

1. Protection functions: input overvoltage and undervoltage protection, output undervoltage alarm, output overvoltage, overcurrent and short circuit protection, and overheating protection.

2. The input is isolated from the output and the output is protected against backflow.

3. User-friendly battery maintenance, three-stage automatic charging (constant current equalization charging-constant voltage equalization charging-floating charging).

4. With passive contact comprehensive fault alarm function.

Technical data:

Specifications(Output current) 20A
Input Rated voltage Three phase 380VAC
Input range Rated voltage±15%
Input frequency 45~65HZ
Efficiency ≥87%
Maximum current Single-phase 220 <3.5A
Output Floating voltage 26.4VDC±0.1V(Can be adjusted according to customer requirements and battery specifications)
Average voltage 28.2VDC±0.1V(Can be adjusted according to customer requirements and battery specifications)
Average floating charge
conversion current
Rated output current 10%±1A
Regulation accuracy ±1%
Output ripple and noise VPP≦300mV
Function Alarm and protection functions Input under voltage protection, input over voltage protection, output under voltage warning, output over voltage protection,
output short circuit protection, output over current protection, power supply over temperature protection
Standard functions Public warning, fault passive dry contact port (contact limit specification: 32V / 1A)
Optional functions Input instructions, work instructions, fault instructions, current regulation
Working environment Operating temperature ‐15℃~+55℃
Storage temperature ‐25℃~+85℃
Relative humidity 0~95%(Non-condensing)
Atmospheric pressure 70kPa~106kPa
Cooling method Air-cooled
Standard range Safety IEC61000-4-2、IEC61000-4-3、IEC61000-4-4、IEC61000-4-5、IEC61000-4-6、IEC60092-101、IEC60068-2-11
Conduction, radiation CISPR16、EN55022
Certification CCS Type approval
Others Size(WxDxH)mm 80x148x247
Weight 2.2kg
Installation method Wall mounted installation
