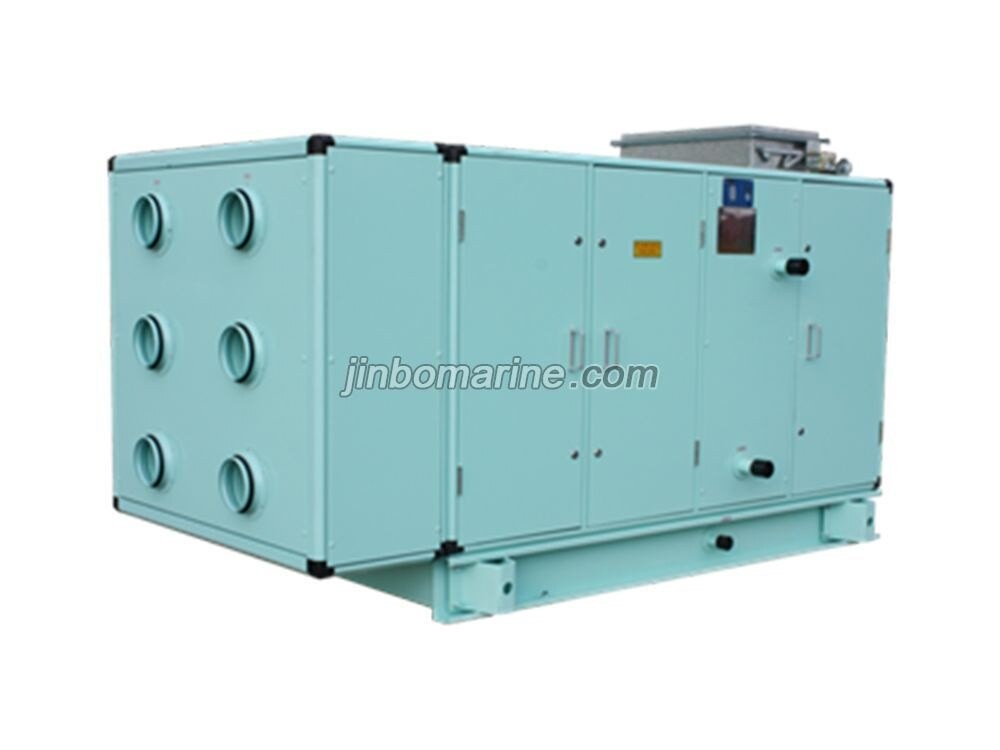

CJKR-50B Marine Packaged Air Conditioning Unit

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

CJKR-50B Marine packaged air conditioning unit has two types, which are cooling and heating type. The cooling type air conditioner is mainly composed of air filter, air cooler, marine centrifugal fan, refrigerating compressor, marine high-efficiency condenser, liquid supply solenoid valve, thermostatic expansion valve, electrical control cabinet and instrument cabinet etc. Diffusion box and mixing box are used as the associated equipment of the unit, the opening position and dimension of their nozzles will be arranged as per the requirements of the user.

Technical Data:

Type CJKR-58B CJKR-70B CJKR-82B CJKR-93B CJKR-105B CJKR-116B CJKR-151B CJKR-175B CJKR-186B CJKR-210B
Cooling capacity 58 70 82 93 105 116 151 175 186 210
Adjustable rang 0-50%-100% 0-66%-100% 0-50%-75%-100%
Compressor motor power 15 17.5 19 23 27 30 37.5 45 56.25 60
Refrigerating medium R22(R314a,R404A,R407c)
Heating capacity 70 82 93 107 116 134 167 187 215 232
Heating medium 0.3-0.4MPa Steam
Steam consumption 139 162 184 210 228 263 328 366 423 480
Air flow 5000 6200 7200 8200 9000 10500 13100 15100 16000 18000
Fan motor power 5.5 7.5 11 11 15 15 15 22.5 30 37
External static pressure 1050 1200 1500 1570 1500 1500 1600 1800 1800 1800
Cooling water Medium ≤32℃ sea water ≤36℃ fresh water
Cooling water flow 15 20 23.5 25 29 33 42 48 54 60
Cooling water press.drop ≤50 ≤50 ≤50 ≤70 ≤70 ≤70 ≤70 ≤70 ≤70 ≤70
Protection HV. LV. Water pressure, over load,
electric heating over-temp. safety valve, power supply faults
Power supply AC380V 3Ph 50Hz/AC440V 3Ph 60Hz
Weight 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200

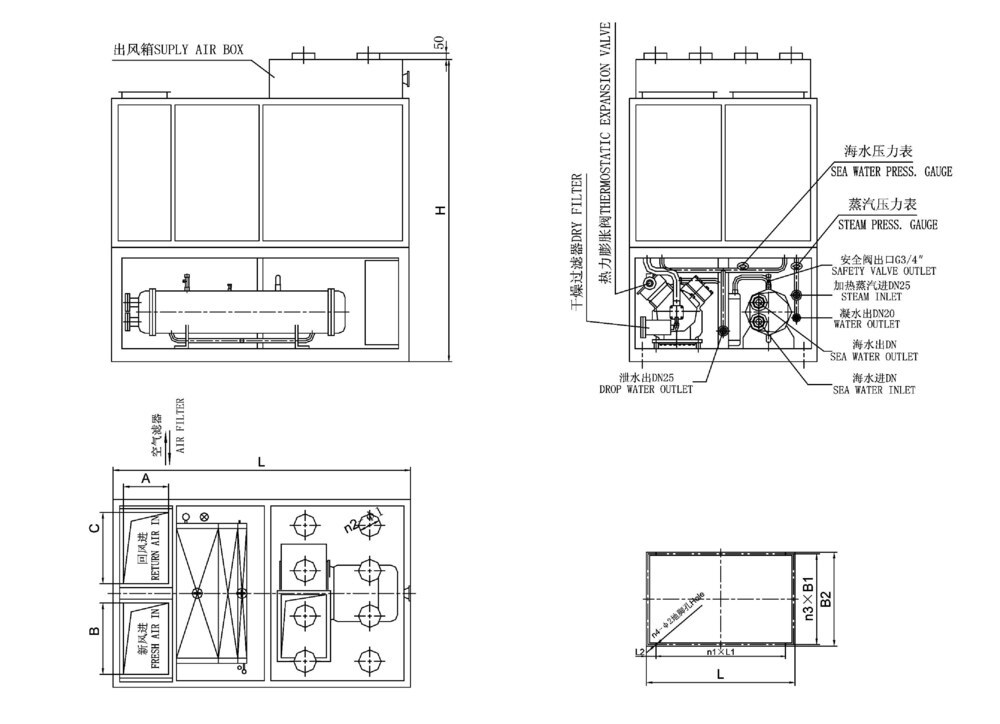

Dimension:

Type L H n1xL1 L2 n3xB1 B2 n2-Φ1 n4-Φ2 AxB AxC DN
CJKR-58 2200 2102 4x525 50 3x400 1150 6-Φ150 12-Φ17 300x400 300x400 50
CJKR-70 2200 2202 4x525 50 3x400 1250 6-Φ150 12-Φ17 300x450 300x450 50
CJKR-82 2300 2252 4x550 50 3x405 1350 7-Φ150 12-Φ17 350x350 350x350 65
CJKR-93 2300 2332 4x550 50 3x405 1350 8-Φ150 12-Φ17 350x500 350x500 65
CJKR-105 2300 2332 4x550 50 3x470 1450 9-Φ150 12-Φ17 350x550 350x550 65
CJKR-116 2300 2332 4x550 50 3x470 1450 10-Φ150 12-Φ17 350x550 350x550 65
CJKR-151 2600 2453 4x625 50 3x500 1550 13-Φ150 12-Φ20 450x550 450x550 80
CJKR-175 2700 2453 4x650 50 3x500 1550 15-Φ150 12-Φ20 450x600 450x600 80
CJKR-186 3000 2532 5x580 50 3x515 1600 16-Φ150 14-Φ20 500x625 500x625 100
CJKR-210 3100 2532 5x580 50 3x515 1600 18-Φ150 14-Φ20 500x625 500x625 100
