CJPJ85/NC Fire Resistant Marine Power & Lighting Cable 0/6/1KV(Armoured)
- Category:IEC 60092 Standard Cable (China Type)
- Material:Tinned Copper/Mica Tape/XLPE insulation/SHF2 sheath/Tinned Copper Wire Braided/SHF2 Sheath
- Standards:IEC 60092
- Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China CJPJ85/NC Fire Resistant Marine Power & Lighting Cable 0/6/1KV(Armoured):

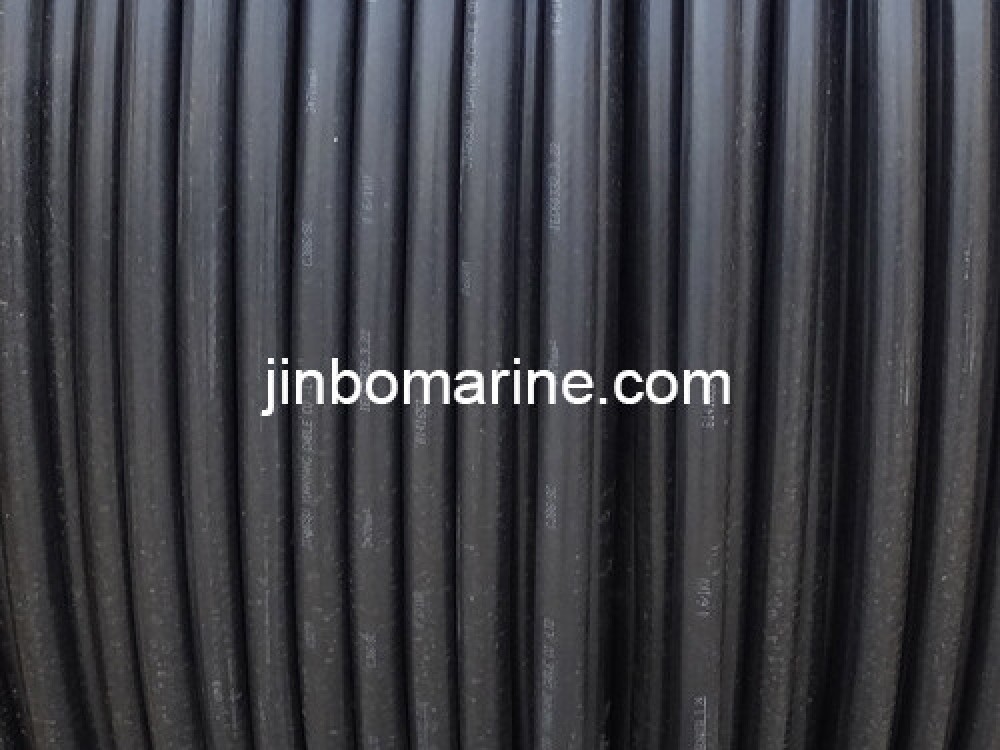

CJPJ85/NC Cable is tinned copper wire braided and fire resistant marine power cable, the sheath color is black.
Cable Construction
Conductor: Tinned Copper. IEC 60228 Class 2
Mica Tape
Insulation : XLPE Insulation
Inner Covering: Halogen-free Cross Linked Thermoset Polyolefin(SHF2)
Armour :tinned copper Wire Braided
Outer Sheath : Halogen-free Cross Linked Thermoset Polyolefin(SHF2)
Standards
Design : IEC 60092-350, 353
Insulation Material : IEC 60092 -351
Sheath Material : IEC 60092-359
Flammability: IEC 60331
Halogen--free: IEC60754-1, IEC60754-2
Smoke Emission: IEC 61034-1, IEC61034-2
Cores & Size
Cores: 1, 2,3,4,5,7,10,12,14,16,19,24,37
Size (sqmm): 1.5, 2.5. 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300
Features
Halogen-free, Low Smoke, Fire-Retardant.
Delivery
We can delivery around the world according to Incoterms 2010.
