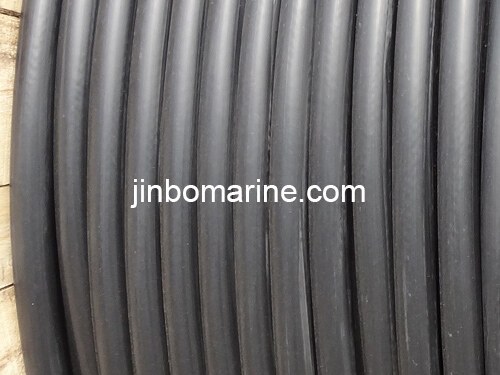

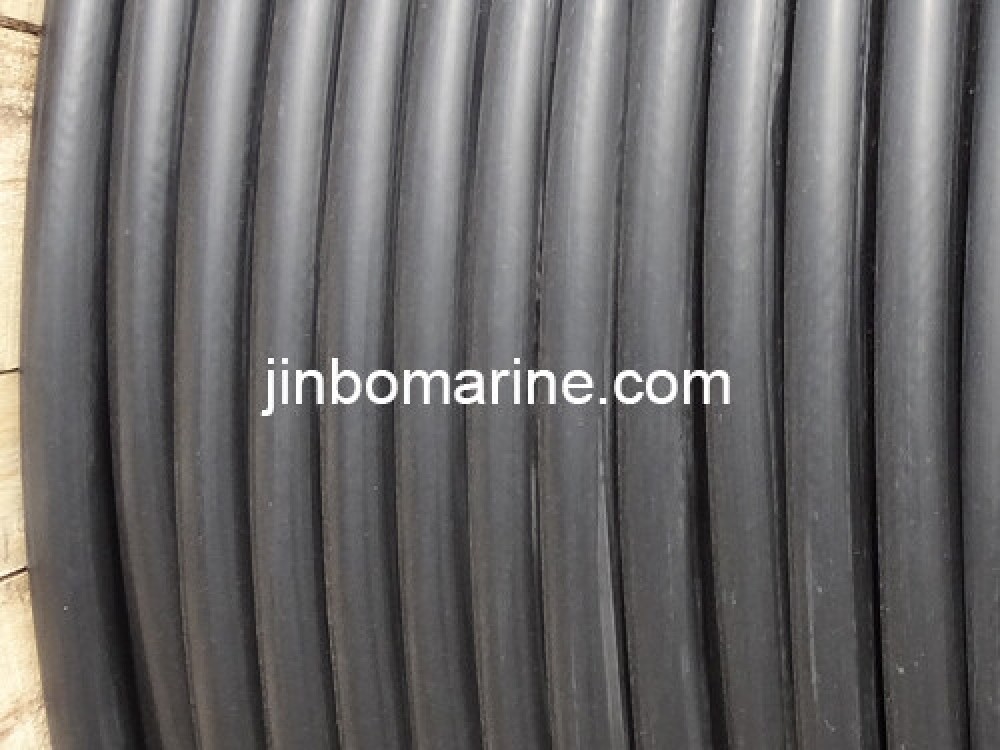

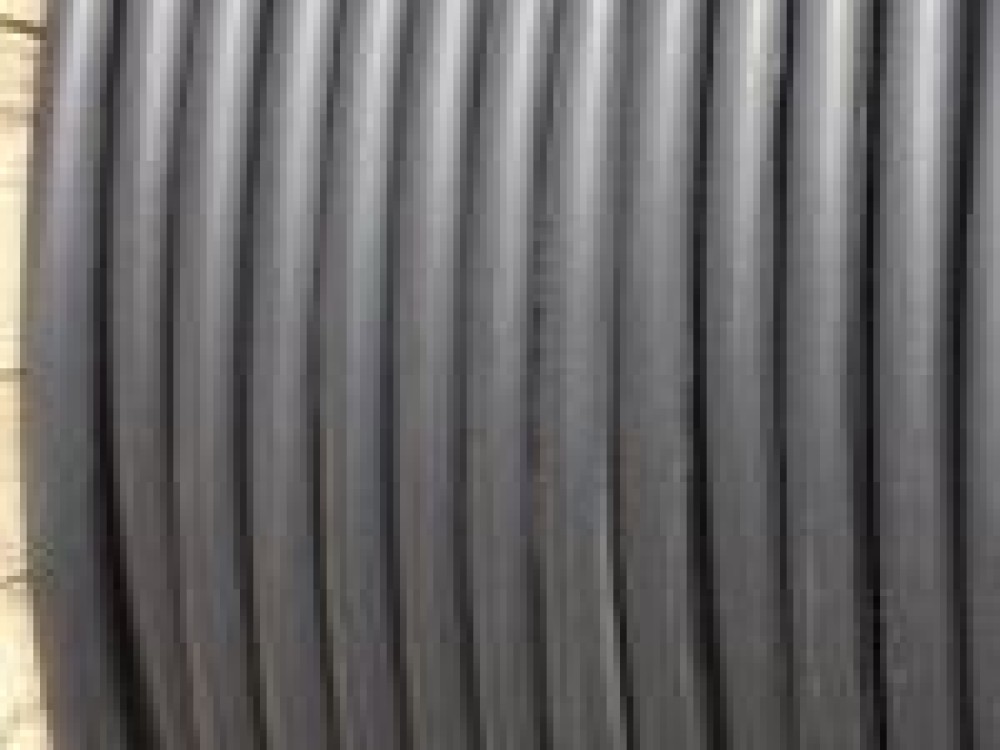

CKJPF/SC Flame Retardant Marine Control Cable 250V
- Category:IEC 60092 Standard Cable (China Type)
- Material:Tinned Copper/XLPE Insulation/ SHF1 outer sheath
- Standards:IEC 60092
- Certificate:ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China CKJPF/SC Flame Retardant Marine Control Cable 250V:
CKJPF/SC Cable is flame retardant Halogen-free low smoke Marine Control Cable 150/250V.
Cable Construction
Conductor: Stranded Tinned Anneal Copper. IEC 60228 Class 2
Insulation : XLPE Insulation
Inner Covering: None
Armour : None
Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)
Standards
Design : IEC 60092-350, 376
Insulation Material : IEC 60092 -351
Sheath Material : IEC 60092-359
Flammability: IEC 60332-1 & IEC 60332-3 Category A
Halogen--free: IEC60754-1, IEC60754-2
Smoke Emission: IEC 61034-1, IEC61034-2
Cores & Size
Cores: 1, 2,3,4,5,7,10,12,14,16,19,24,27, 30, 33,37.
Size (sqmm): 0.75, 1, 1.5, 2.5.
Feature
Halogen-free, Low Smoke, Flame retardant
Application:
The cable is fixed installation, used for control system in ship or offshore bulding.
