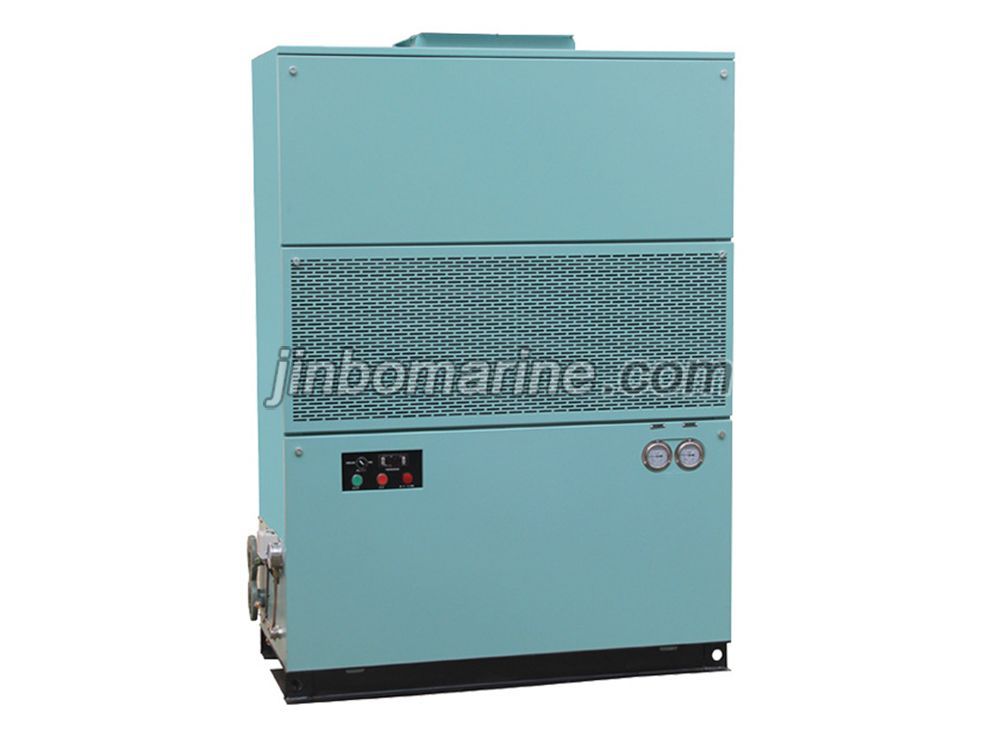

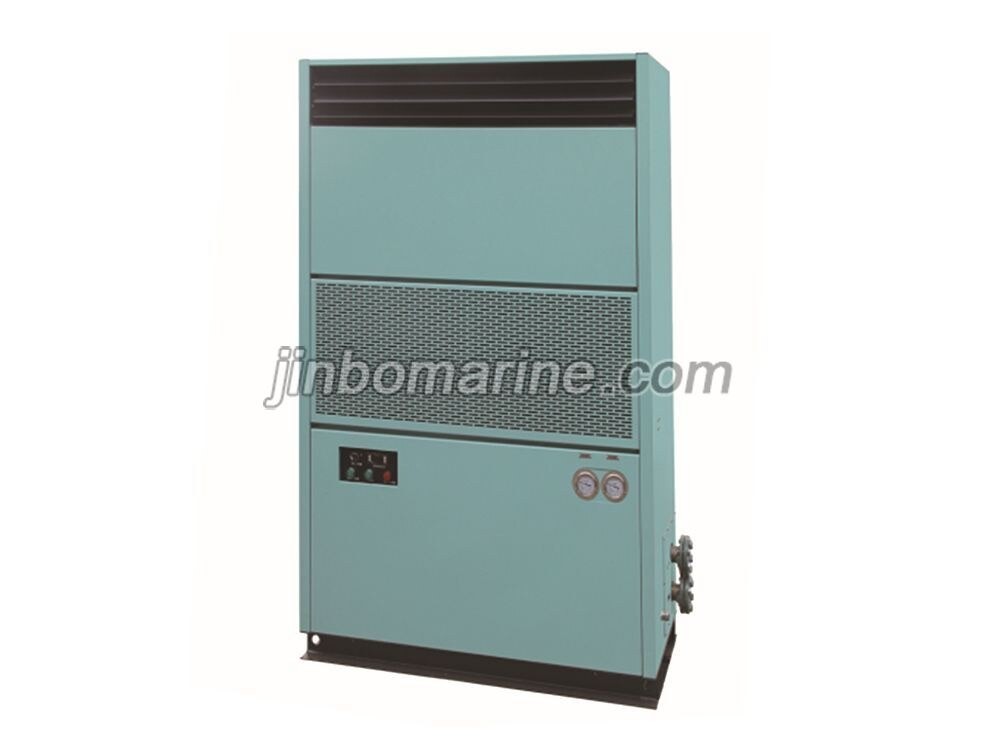

CLD-B Marine Low Nose Self Contained Air Conditioner
- Category:Marine Air Conditioner
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CLD-B Marine Low Nose Self Contained Air Conditioner:
CLD Mareine Self Contatined Air Conditioner Mareine self contatined air conditioner is the cooling device , which can condition the air in chamber directly The unit has features of new-design , easy-maintaining etc They are widely applied for all kinds of passenger ships , cargo ships , oil platforms etc.
Technical data:
Sheet 1:
Model | CLD-5B | CLD-6B | CLD-7B | CLD-8B | ||
Cooling capacity | KW | 5.81 | 6.59 | 8.2 | 9.3 | |
10 Kcal/h | 5 | 6 | 7 | 8 | ||
Heating capacity | KW | 3 | 3.6 | 4.2 | 4.8 | |
10 Kcal/h | 2.5 | 3 | 3.65 | 4.1 | ||
Cooling medium | R407C | |||||
Heating type |
electric heating tube
with stainless steel fin or light tube |
|||||
Power supply | Main circuit | AC 380V 3φ 50Hz/ AC 440V 3φ 60Hz | ||||
Control circuit | AC 220V 1φ 50Hz/ AC 220V 1φ 60Hz | |||||
Protection devices |
Freon high
pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve |
|||||
Compressor | Type | Hermetic scroll | ||||
Motor power | KW | 1.5 | 1.8 | 2.1 | 2.3 | |
Condenser | Type |
horizontal shell &
tube and can condense and receive liquid efficiently |
||||
Water inlet temp | ℃ | ≤32 | ||||
Water flow | m3/h | 2.5 | 2.5 | 2.6 | 3 | |
Water pressure loss | Kpa | ≤30 | ||||
Dia.of inlet and outlet water | mm | DN25 | DN25 | DN25 | DN25 | |
Evaporator | Copper tube with copper(Al)fin | |||||
Fan | Type | low noise centrifugal fan | ||||
Air flow | m3/h | 1000 | 1200 | 1400 | 1600 | |
Motor power | W | 0.25 | 0.25 | 0.25 | 0.25 | |
Fan speed | high、middle、low | |||||
Noise | dB(A) | ≤56 | ≤57 | ≤58 | ≤58 | |
Dimension | Length | mm | 800 | 800 | 800 | 800 |
Width | mm | 440 | 440 | 440 | 440 | |
Height | mm | 1650 | 1650 | 1650 | 1650 | |
Weight | kg | 208 | 210 | 235 | 240 |
Sheet 2:
Model | CLD-10B | CLD-12B | CLD-15B | CLD-20B | ||
Cooling capacity | KW | 11.63 | 14 | 17.5 | 23.3 | |
10 Kcal/h | 10 | 12 | 15 | 20 | ||
Heating capacity | KW | 6 | 7.2 | 9 | 12 | |
10 Kcal/h | 5.1 | 6.2 | 7.7 | 10.3 | ||
Cooling medium | R407C | |||||
Heating type |
electric heating tube
with stainless steel fin or light tube |
|||||
Power supply | Main circuit | AC 380V 3φ 50Hz/ AC 440V 3φ 60Hz | ||||
Control circuit | AC 220V 1φ 50Hz/ AC 220V 1φ 60Hz | |||||
Protection devices |
Freon high
pressure、freon low pressure、water stop、super heat、 lack phase、overload、safety valve |
|||||
Compressor | Type | Hermetic scroll | ||||
Motor power | KW | 2.5 | 3.3 | 3.9 | 4.6 | |
Condenser | Type |
horizontal shell &
tube and can condense and receive liquid efficiently |
||||
Water inlet temp | ℃ | ≤32 | ||||
Water flow | m3/h | 3.7 | 4.4 | 5.2 | 6.5 | |
Water pressure loss | Kpa | ≤30 | ||||
Dia.of inlet and outlet water | mm | DN25 | DN25 | DN32 | DN32 | |
Evaporator | Copper tube with copper(Al)fin | |||||
Fan | Type | low noise centrifugal fan | ||||
Air flow | m3/h | 2000 | 2400 | 3000 | 4000 | |
Motor power | W | 0.37 | 0.55 | 0.55 | 0.75 | |
Fan speed | high、middle、low | |||||
Noise | dB(A) | ≤61 | ≤62 | ≤64 | ≤66 | |
Dimension | Length | mm | 950 | 1050 | 1050 | 1350 |
Width | mm | 440 | 550 | 550 | 600 | |
Height | mm | 1650 | 1840 | 1840 | 1840 | |
Weight | kg | 260 | 280 | 300 | 350 |
