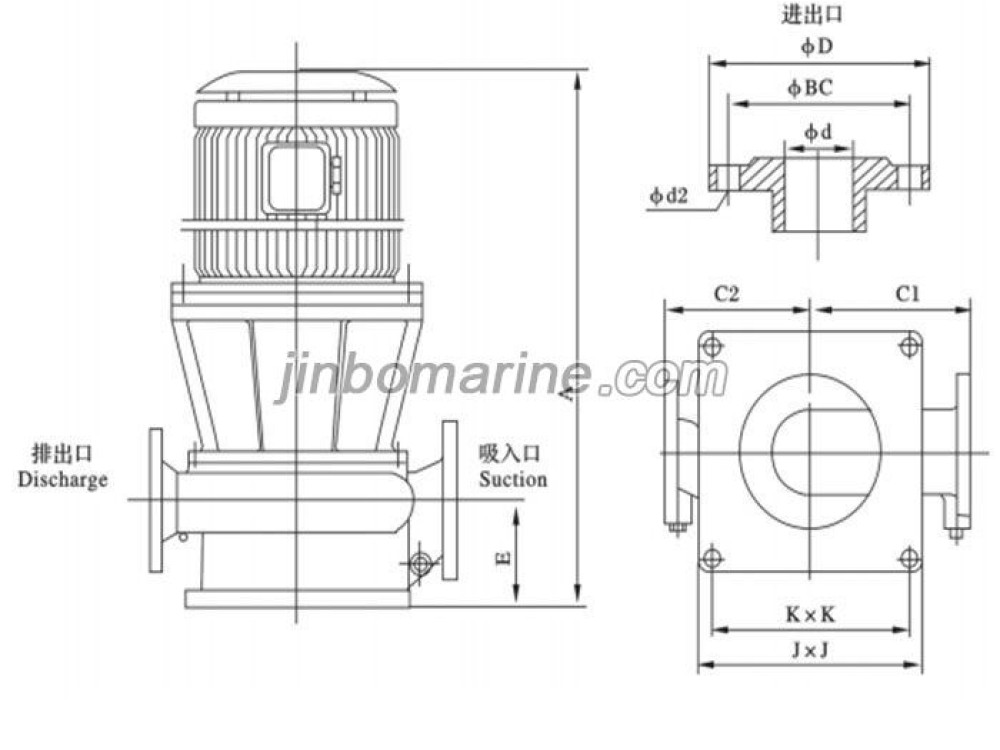

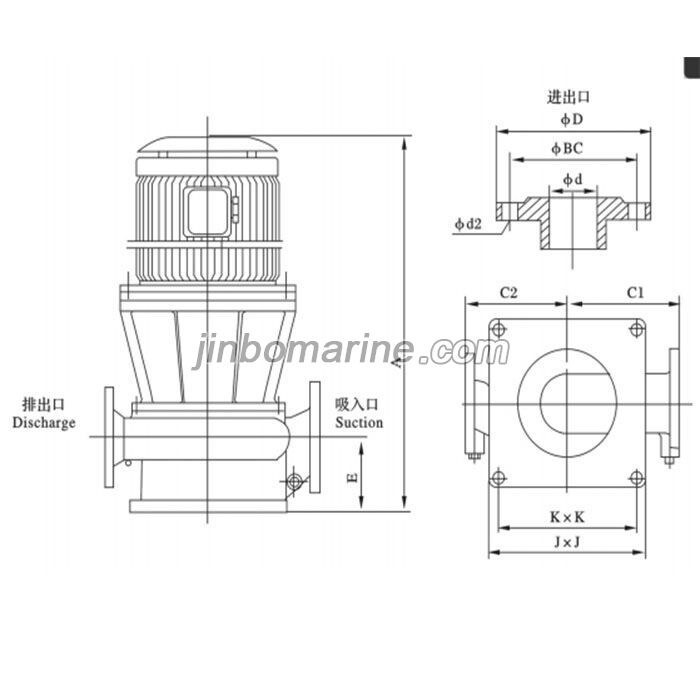

CLH series vertical centrifugal marine pumps
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CLH series vertical centrifugal marine pumps:
CLH series vertical centrifugal marine pump used in all kinds of shipping and warship for ballast pump, bilge pump, coolant pump, drainage pump and fire pump. It also used as necessary feed pump for seawater desalting device and various tank equipument,and the booster pump for petroleum and chemical industry pipelines, cold and hot water circulating system and high-rise building living water supply system.
| Type | Capacity | Head | NPSH | Speed |
| (m3/h) | (m) | (m) | (r/min) | |
| CLH25-25-6.5 | 3 | 8 | 4 | 2800 |
| CLH25-25-6.5A | 2.7 | 6.5 | 4 | |
| CLH40-32-2 | 5 | 45 | 4 | 2950 |
| CLH40-32-2.5 | 10 | 60 | 4 | 2950 |
| CLH40-32-3 | 10 | 45 | 4 | 2950 |
| CLH40-32-3.5 | 5 | 25 | 4 | 2950 |
| CLH40-32-5 | 10 | 25 | 4 | 2950 |
| CLH50-32-2 | 12.5 | 80 | 2.5 | 2950 |
| CLH50-32-2A | 11.7 | 70 | 2.5 | 2950 |
| CLH50-32-2B | 10.8 | 60 | 2.5 | 2950 |
| CLH50-32-3 | 12.5 | 65 | 2.3 | 2950 |
| CLH50-32-3.5 | 12.5 | 50 | 3.2 | 2950 |
| CLH50-32-3.5A | 10 | 45 | 3.5 | 2950 |
| CLH50-32-4.5 | 12.5 | 32 | 3 | 2950 |
| CLH50-32-4.5A | 10 | 28 | 3 | 2950 |
| CLH50-32-6.5 | 12.5 | 20 | 2.5 | 2950 |
| CLH50-40-7 | 20 | 25 | 4 | 2950 |
| CLH50-50-4.5 | 20 | 45 | 5 | 2950 |
| CLH50-50-4.5A | 18.6 | 38.5 | 5 | 2950 |
| CLH65-40-2.5 | 25 | 125 | 3 | 2950 |
| CLH65-40-2.5A | 23.9 | 114 | 3 | 2950 |
| Also have bigger pumps, pls contact us for more information. | ||||
