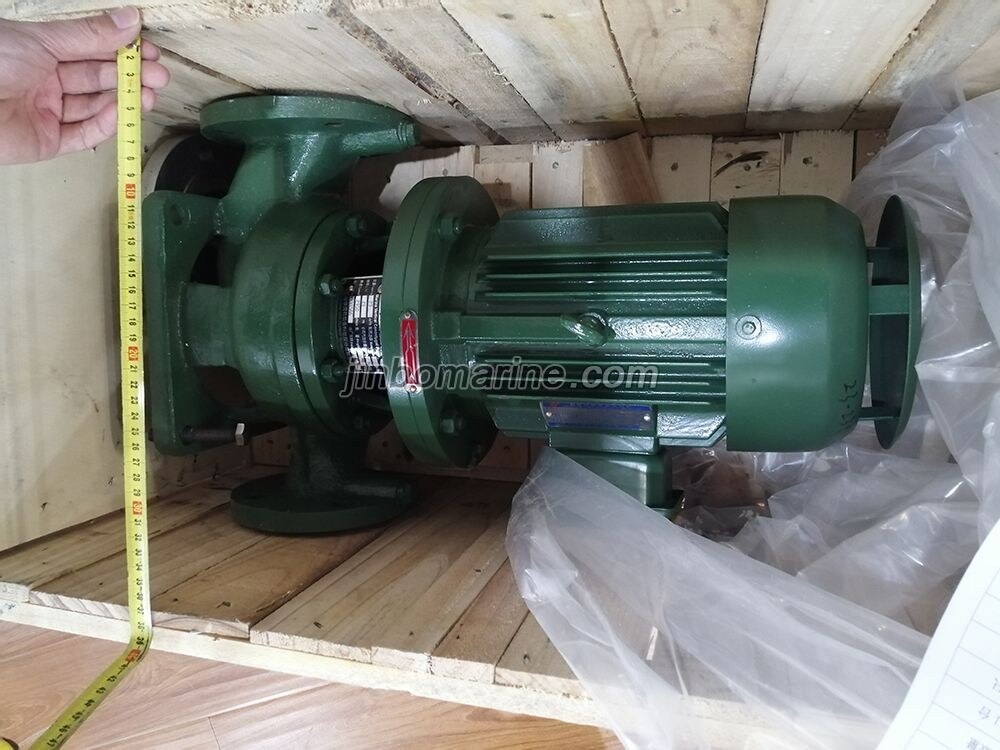

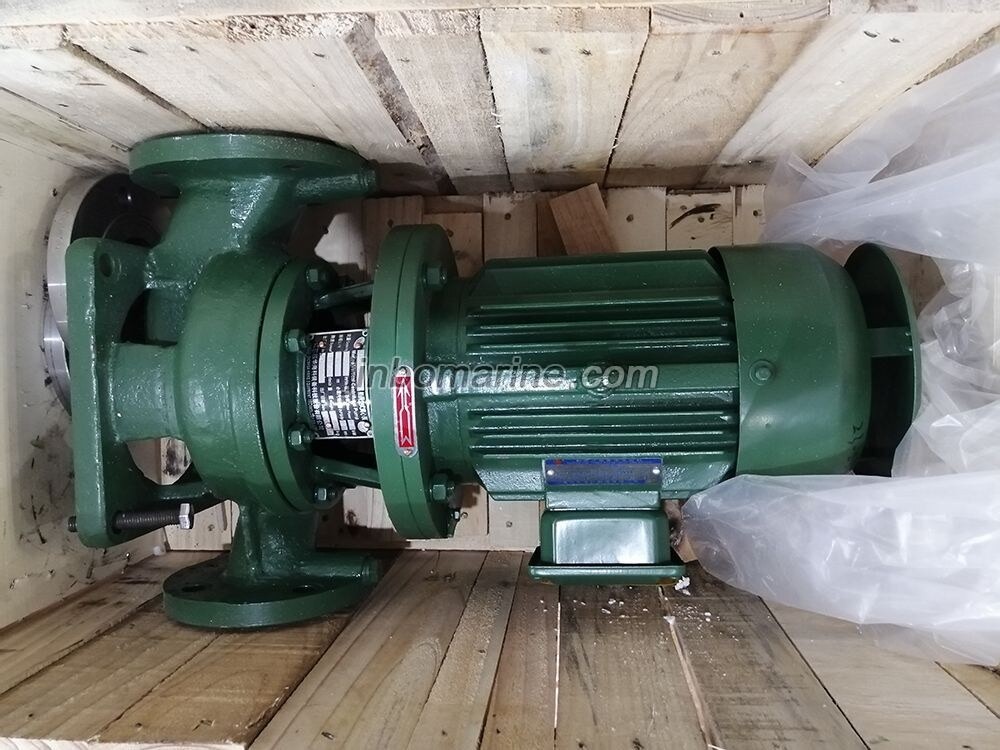

CLH65-50-9(Z) Marine Vertical Centrifugal Sea Water Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description

CLH65-50-9(Z)series marine vertical centrifugalsea water pump is a new type of centrifugal pump designed according to CB/T3523-93 Marine Vertical Sea Water Pump and relevant ISO international standards. It is applicable to all kinds of ships and warships as fire pumps, bilge pumps, ballast pumps, cooling pumps and drainage pumps, as well as seawater desalination devices and various water tank devices as supporting water supply pumps, as well as petrochemical pipelines, cold and hot water circulation systems and booster pumps for domestic water in high-rise buildings.

Specification

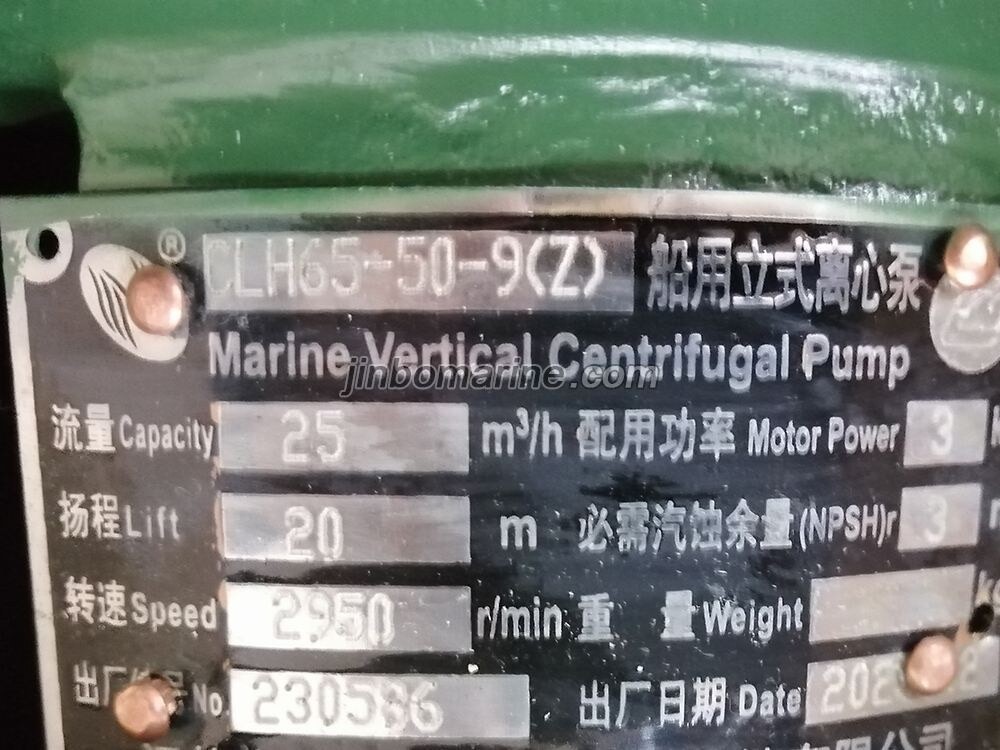

Capacity:25m3/h

Motor power 3kw

Lift 20m

NPSH 3m

Speed 2950r/min

Weight 75kgs
