CLLS Marine Water Chilling Unit

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

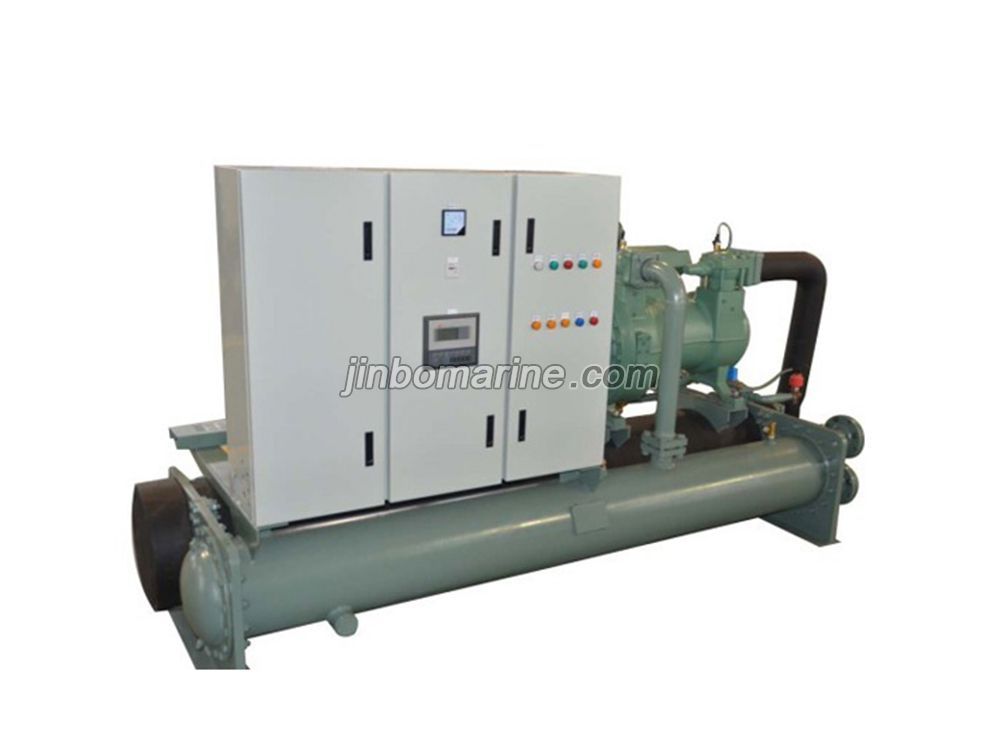

CLLS marine water chilling unit mainly consists of refrigeration compressor, marine high-efficient condenser, liquid supply solenoid valve, thermostatic expansion valve , dry-type evaporator, electrical control cabinet, instrument and valves, etc.

All components of this unit are already assembled by the manufacturer, also pressure test and vacuum test for cooling system are already done, sufficient amount of R404A gas is filled in.

Technical Data:

Model CLLS-100 CLLS-130 CLLS-150 CLLS-250 CLLS-300
Cooling capacity 116 151 175 290 340
Coopressor motor power 32 37 39 75 90
Fresh Water Flow 20 26 30 50 60
Cooling water flow 32 37 39 75 90
Cooling water press. Drop ≤70 ≤70 ≤70 ≤70 ≤70
Fresh water temp. 12℃water in/7℃water out
Cooling water medium ≤32℃ sea water 36℃ fresh water
Protection HV.LV.oil pressure. Water pressure.
fresh water flow, overload .safety valve. Power supply faults
Power AC380V 3PH 50HZ/ AC440V 3PH 60HZ
Regenerating medium R22(R134A. R404A.R407C.)
Adjustable Range 0-25%-50%-75%-100%
Weight 1200 1500 1700 2000 2500
Model CLLS-220s CLLS-60sS CLLS-330S CLLS-440S CLLS-530S
Cooling capacity 256 302 383 512 616
Coopressor motor power 64 74 78 114 150
Fresh Water Flow 44 52 66 83 106
Cooling water flow 64 74 78 114 150
Cooling water press. Drop ≤70 ≤70 ≤70 ≤70 ≤70
Fresh water temp. 12℃water in/7℃water out
Cooling water medium ≤32℃ sea water 36℃ fresh water
Protection HV.LV.oil pressure. Water pressure.
fresh water flow, overload .safety valve. Power supply faults
Power AC380V 3PH 50HZ/ AC440V 3PH 60HZ
Regenerating medium R22(R134A. R404A.R407C.)
Adjustable Range 0-25%-50%-75%-100%
Weight 2100 2400 2600 3300 3800

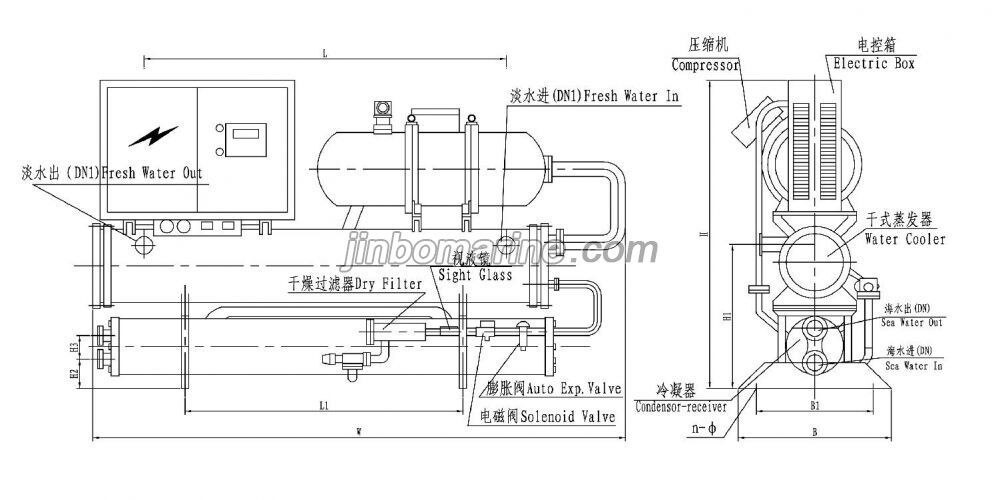

Dimension:

Model L L1 W B B1 H H1 H2 H3 N-Φ DN DN1
CLLS-100 1290 1200 2200 700 600 1300 742 150 164 4-Φ20 80 80
CLLS-130 1590 1500 2350 700 600 1300 742 150 164 4-Φ22 80 80
CLLS-150 1590 1500 2500 900 800 1600 842 150 164 4-Φ25 80 80
CLLS-250 1790 1700 2700 900 800 1600 842 163 200 4-Φ30 80 80
CLLS-300 1790 1700 2700 900 800 1600 842 163 200 4-Φ32 100 100

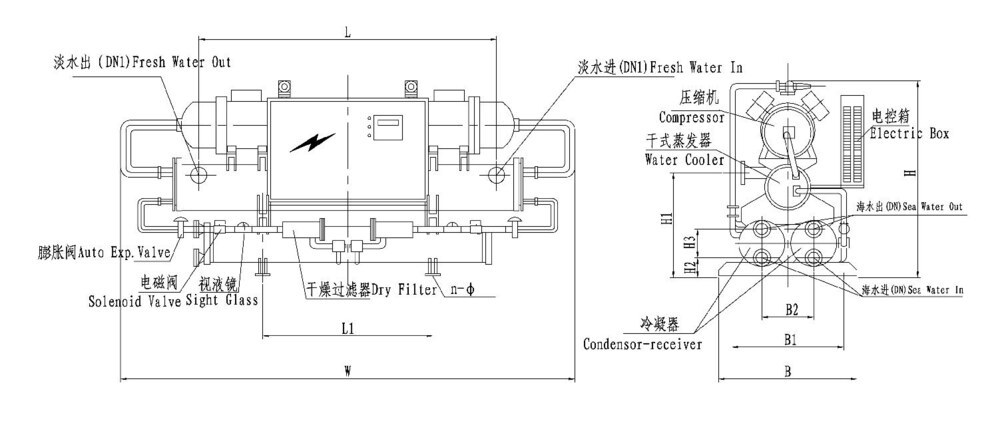

Model L L1 W B B1 H H1 H2 H3 N-Φ DN DN1
CLLS-220S 1290 1290 2200 980 880 450 865 150 164 4-Φ25 80 80
CLLS-260S 1350 1350 2350 980 600 450 742 150 164 4-Φ25 100 80
CLLS-330S 1500 1500 2500 980 800 450 842 150 164 4-Φ25 125 125
CLLS-440S 1500 1500 2500 1100 1100 500 842 163 200 4-Φ32 125 125
CLLS-530S 1500 1500 2500 1100 1200 500 842 163 200 4-Φ32 125 125
