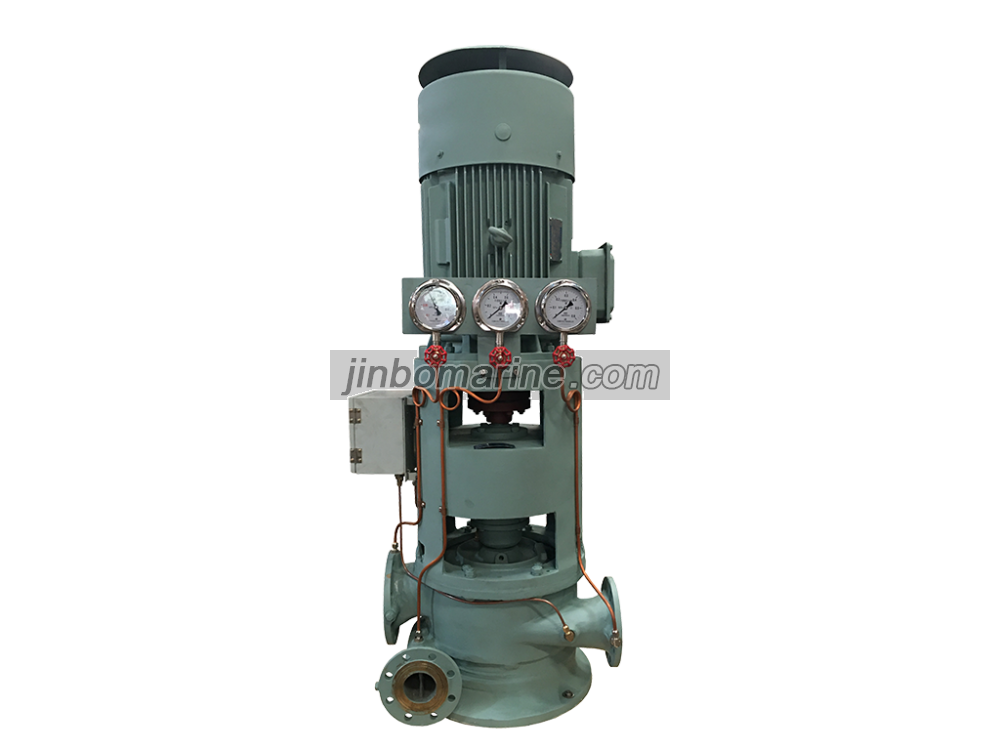

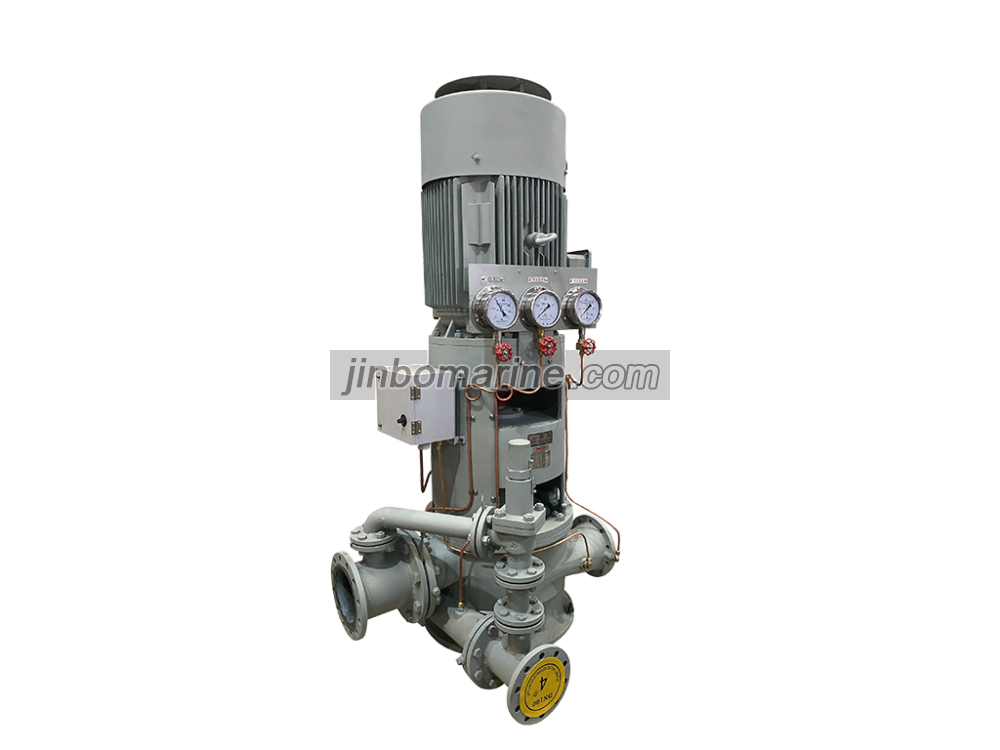

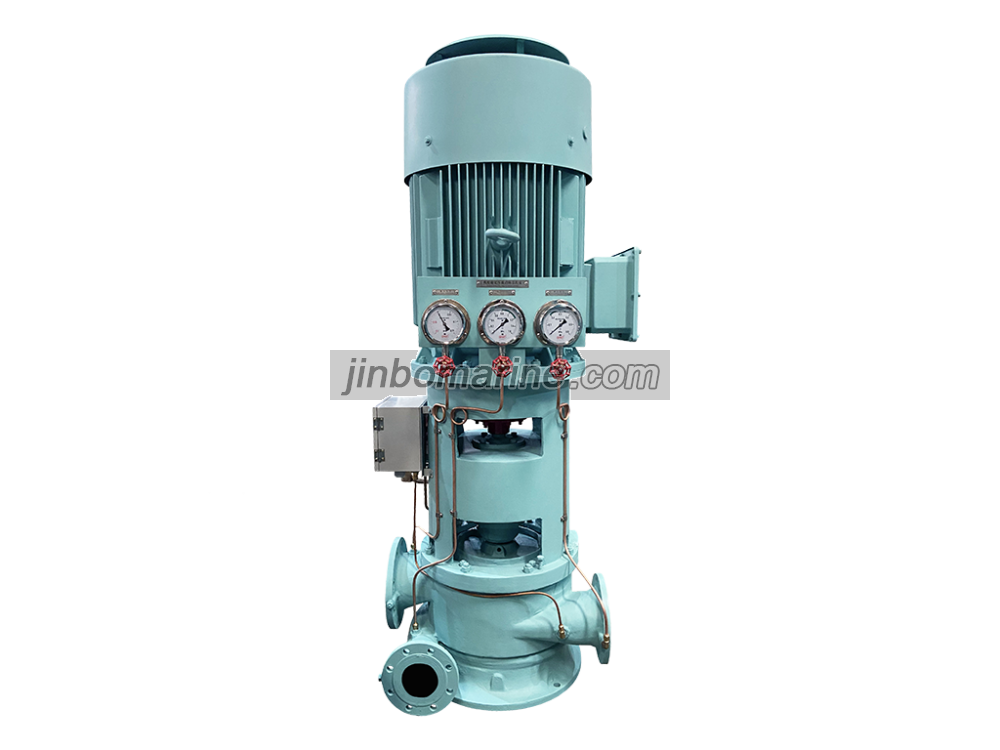

CLN100-380/2A marine vertical double-stage double-outlet centrifugal pump
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
CLN Series marine vertical double-stage double-outlet centrifugal pump is used to deliver fresh water and seawater, widely used for cooling, fire control, chamber loading and other general water
drainage. It can be used as the alkali liquid pump and distilling pump in seawater desalination. It can also be used for industrial and urban water supply. The temperature of delivery medium shall not be over 80℃.
CLN Series marine vertical double-stage double-outlet centrifugal pump has two stage, different with common double-stage pumps. Except the outlet at the second stage, there is also manifold outlet at the first stage. As a kind of general pump, it is most appropriate for shipsgenerally.
Technical data:
Main technical parameter(50Hz 3φ380V):
Type | (50Hz 3φ380V)Main technical parameter |
Motor Power kW |
Weight kg |
|||
Capacity m³/h |
Head m |
Speed r/min |
NPSHR m |
|||
CLN80-340/2A | 51/51 | 29.5/65 | 1480 | 2.8 | Y180L-4H22 | 510 |
CLN80-340/2C | 116/58 | 24/61 | 1480 | 3.4 | Y200L-4H30 | 525 |
CLN80-340/2D | 112/54 | 15/51.5 | 1480 | 4.3 | Y180M-4H 18.5 | 520 |
CLN80-340/2E | 141/62 | 25.5/59 | 480 | 4.2 | Y200L-4H30 | 530 |
CLN100-380/2A | 95/91 | 36.5/86 | 1480 | 4.1 | Y225M-4H45 | 786 |
CLN100-380/2C | 149/95 | 27.5/77 | 1480 | 3.7 | Y225M-4H45 | 781 |
CLN100-380/2D | 141/95 | 16.5/60.5 | 1480 | 3.6 | Y225S-4H37 | 740 |
CLN100-380/2E | 199/99 | 23.5/69.5 | 480 | 4.2 | Y225M-4H45 | 775 |
CLN125-380/2A | 124/120 | 33.5/77 | 1480 | 4 | Y250M-4H55 | 915 |
CLN125-380/2C | 215/120 | 23.5/65 | 1480 | 4.2 | Y225M-4H45 | 828 |
CLN125-380/2D | 199/108 | 17/60.5 | 1480 | 4.2 | Y225S-4H37 | 795 |
CLN125-380/2E | 257/124 | 24/68.5 | 480 | 3.5 | Y250M-4H55 | 925 |
CLN125-380/2F | 190/80 | 40/80 | 1480 | 4.2 | Y280S-4H75 | |
CLN150-380/2A | 199/182 | 33/79 | 1480 | 5.1 | Y280S-4H75 | 1082 |
CLN150-380/2C | 348/174 | 22/71.5 | 1480 | 4.9 | Y280S-4H75 | 1078 |
CLN150-380/2D | 265/166 | 14.5/62 | 480 | 4.2 | Y250M-4H55 | 902 |
CLN150-380/2E | 389/182 | 22/70 | 1480 | 4.6 | Y280S-4H75 | 1080 |
Main technical parameter(60Hz3φ440V):
Type | Main technical parameter(60Hz3φ440V) |
Motor power kW |
Weight kg |
|||
Capacity m3/h |
Head m |
Speed r/min |
NPSHR m |
|||
CLN80-340/2A | 60/62 | 43/95 | 1780 | 3.2 | Y225S-4H37 | 710 |
CLN80-340/2C | 140/70 | 35/89 | 1780 | 4 | Y225S-4H37 | 710 |
CLN80-340/2D | 135/65 | 22/75 | 1780 | 5.3 | Y200L-4H30 | 640 |
CLN80-340/2E | 170/75 | 37/86 | 1780 | 5.2 | Y225S-4H37 | 710 |
CLN100-380/2A | 115/110 | 53/125 | 1780 | 5.1 | Y280S-4H75 | 970 |
CLN100-380/2C | 180/115 | 40/112 | 1780 | 4.5 | Y280S-4H75 | 970 |
CLN100-380/2D | 170/115 | 24/88 | 1780 | 4.4 | Y250M-4H55 | 885 |
CLN100-380/2E | 240/120 | 34/101 | 1780 | 5.2 | Y280S-4H75 | 970 |
CLN125-380/2A | 150/145 | 49/112 | 1780 | 5 | Y280M-4H90 | 1050 |
CLN125-380/2C | 260/145 | 34/95 | 1780 | 5.2 | Y280S-4H75 | 1010 |
CLN125-380/2D | 240/130 | 25/88 | 1780 | 5.2 | 75Y280S-4H | 1010 |
CLN125-380/2E | 310/150 | 35/100 | 1780 | 4.2 | Y280M-4H90 | 1050 |
CLN150-380/2A | 240/220 | 48/115 | 1780 | 6.6 | Y315M-4H132 | 1050 |
CLN150-380/2C | 420/210 | 32/104 | 1780 | 6.2 | Y315M-4H132 | 1050 |
CLN150-380/2D | 320/200 | 21/90 | 1780 | 6 | Y280M-4H90 | 1130 |
CLN150-380/2E | 470/220 | 32/102 | 1780 | 5.8 | Y315S-4H110 | 1050 |
