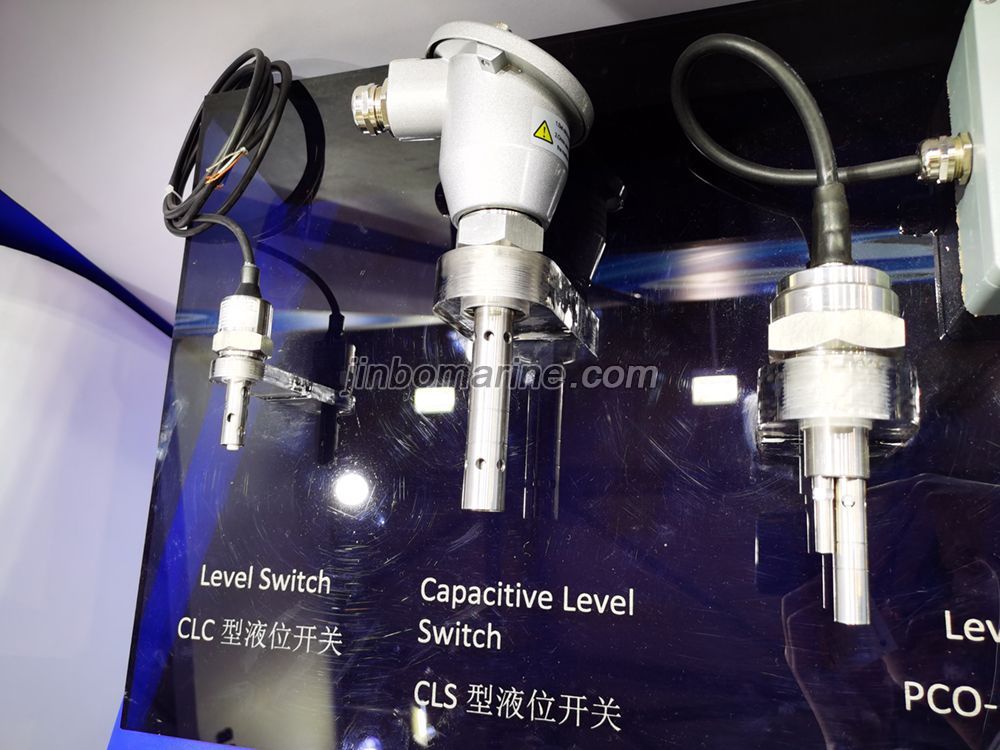

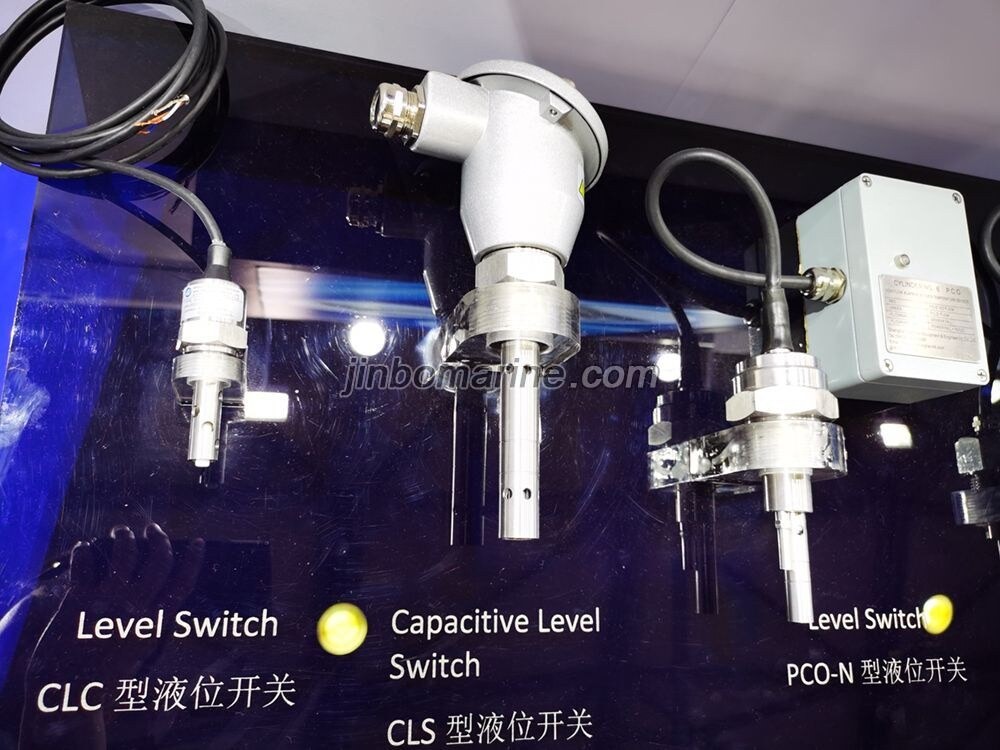

CLS-01 Capacitive Level Switch

Request a Quote Not what you need, please send your RFQs via Email.

Details

Features:

No moving parts

Easy installation

Wetted parts in AISI 316 and PTFE(Teflon)

Built in temperature sensor(Pt100)-OPTIONAL

Connection box can be rotated 300

Description:

CLS-01 is a high quality level switch with capacitive element, and CLS-02 withtemperature sensor built in.

Liquid or non-liquid between the inner sensor and the detection pipe has been detectedas a change in the electrostatic

capacity. The variations of the capacitance will occurwhen the probe immersed into the fluid or exposed to the air.

It is possible to install on a close distance from the outside wall etc., because of doublepipe structure of the inner sensor and

the detection pipe.

Technical specifications:

Power supply: 24VDC/0.6W MAX.

Normal current consumption: Approximately 25mA

Maximum current consumption: Approximately 40mA

Relay alarm output: 2 potential free contacts 125 VAC/0.3 A or 30VDC/1 A

Operating ambient temperature: MAX.70C

Medium temperature: MAX.160C

Working pressure: 1.6MPa

Test pressure: 3.2MPa

Connection size: ISO228-G1/2 0RISO228-G3/4 or other

Minimum distance from sensor tip: 10mm

Material sensor tip, wetted part: AISI 316 and Teflon

Cable gland connection:M24 X1.5(8-14 mm)
