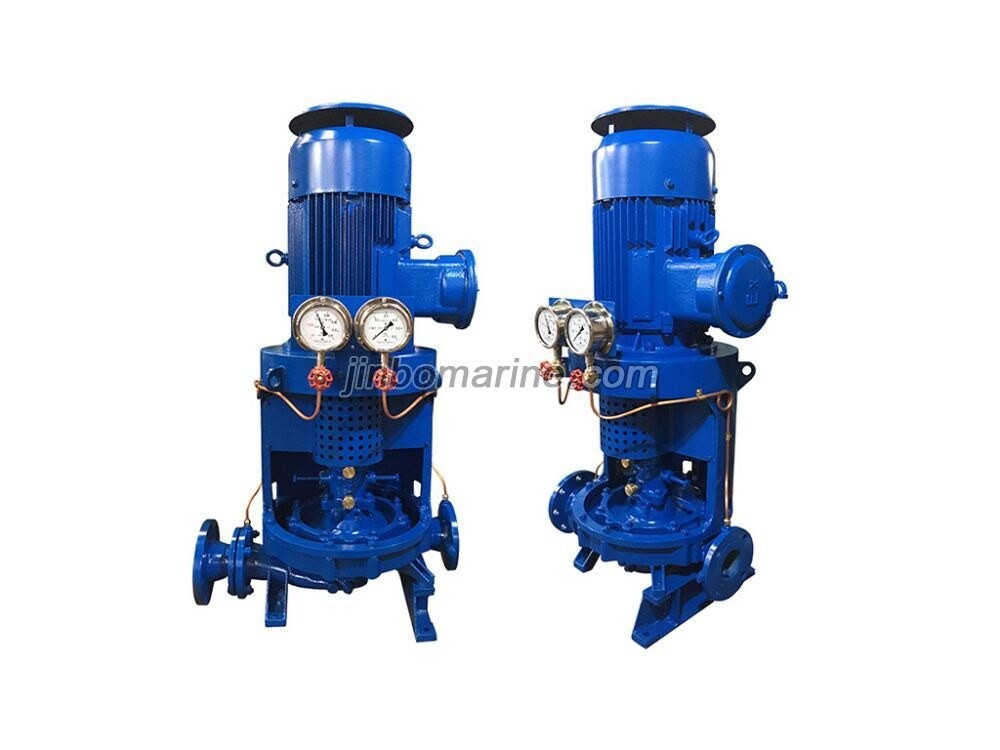

CLV65-280A marine vertical centrifugal pump
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:
CLV series vertical centrifugal pump is our newly developed product driven by a marine motor. It is widely used for transporting fresh water, seawater, condensate, oils and saline water. The
transported medium shall not contain any abrasive materials and any other chemicals corrosive on the pump. It widely serves as fresh water and seawater cooling pump, burr pump, ballast pump and general pump, and used for seawater desalting device and marine pressure cabinet. The transported medium temperature shall not exceed 80℃. AELC self-priming device can be assembled according to users’ order with additional cost, to achieve self-priming function.
Viewing from the motor end downward, this series pump rotates clockwise.
Data sheet:
(50Hz 3φ380V) main technical parameter
Type | (50Hz 3φ380V) main technical parameter |
Motor type & power kW |
Weight kg |
||||
Capacity m3/h |
Head m |
Speed r/min |
NPSHR m |
Shaft power kW |
|||
CLV65-200A | 27 | 14.5 | 1450 | 2.5 | 1.8 | Y100L1-4H 2.2 | 170 |
CLV65-280A | 30 | 21 | 1450 | 2.5 | 3.1 | Y112M-4H 4 | 184 |
CLV65-300A | 30 | 28 | 1450 | 2.5 | 4.4 | Y132S-4H 5.5 | 227 |
CLV65-350A | 25 | 41 | 1450 | 2.5 | 6.1 | Y132M-4H 7.5 | 235 |
CLV80-200A | 48 | 14.5 | 1450 | 2.5 | 2.8 | Y112M-4H 4 | 186 |
CLV80-220A | 45 | 62 | 2950 | 4 | 12 | Y160M2-2H 15 | 370 |
CLV80-220B1 | 45 | 48 | 2950 | 4 | 9.8 | Y160M1-2H 11 | 335 |
CLV80-280A | 54 | 21.5 | 1450 | 3 | 4.5 | Y132S-4H 5.5 | 215 |
CLV80-300A | 46 | 28 | 1450 | 2.8 | 5.8 | Y132M-4H 7.5 | 235 |
CLV80-350A | 54 | 41 | 1480 | 3 | 10.5 | Y160L-4H 15 | 422 |
CLV80-350B | 40 | 35 | 1480 | 2.5 | 6.9 | Y160M-4H 11 | 389 |
CLV80-350 B2 | 42 | 41 | 1480 | 2.5 | 8.4 | Y160M-4H 11 | 323 |
CLV100-200A | 83 | 14.5 | 1450 | 3 | 4.6 | Y132S-4H 5.5 | 215 |
CLV100-220A | 95 | 68.5 | 2950 | 4.5 | 24.2 | Y200L1-2H 30 | 470 |
CLV100-220 B | 87 | 55 | 2950 | 4.5 | 18.5 | Y180M-2H 22 | 435 |
CLV100-280A | 83 | 21 | 1450 | 3 | 6.4 | Y132M-4H 7.5 | 265 |
CLV100-300A | 83 | 28 | 1480 | 2.8 | 9.1 | Y160M-4H 11 | 293 |
CLV100-350A | 83 | 41 | 1480 | 3.2 | 14.2 | Y180M-4H 18.5 | 347 |
CLV125-200A | 116 | 14 | 1450 | 3.5 | 5.9 | Y132M-4H 7.5 | 265 |
CLV125-220A | 149 | 68.5 | 2950 | 5.5 | 36.9 | Y225M-2H 45 | 593 |
CLV125-220 B | 128 | 5 | 2950 | 5 | 26.7 | Y200L2-2H 37 | 510 |
CLV125-270A | 140 | 86 | 2950 | 5 | 44.7 | Y250M-2H 55 | 800 |
CLV125-280A | 125 | 21 | 1480 | 3.5 | 9.6 | Y160M-4H 11 | 300 |
CLV125-300A | 125 | 28 | 1480 | 3 | 14.3 | Y180M-4H 18.5 | 360 |
CLV125-350A | 125 | 41 | 1480 | 3.5 | 19.8 | Y200L-4H 30 | 470 |
CLV125-350 B | 116 | 34 | 1480 | 3.5 | 15.9 | Y180L-4H 22 | 423 |
CLV150-200A | 190 | 14 | 1480 | 3.5 | 9.5 | Y160M-4H 11 | 315 |
CLV150-220A | 273 | 62 | 2950 | 4.5 | 61.4 | Y280S-2H 75 | 935 |
CLV150-270A | 265 | 86 | 2950 | 4 | 82.1 | Y315S-2H 110 | 1280 |
CLV150-280A | 182 | 21 | 1480 | 3.5 | 13.4 | Y180M-4H 18.5 | 390 |
CLV150-300A | 182 | 27.5 | 1480 | 4 | 17.7 | Y180L-4H 22 | 430 |
CLV150-350A | 190 | 41 | 1480 | 3.5 | 29.1 | Y225S-4H 37 | 550 |
CLV150-350 B2 | 190 | 35 | 1480 | 3.5 | 25.6 | Y200L-4H 30 | 511 |
CLV200-200A | 332 | 13.7 | 1480 | 4 | 15.9 | Y180M-4H 18.5 | 410 |
CLV200-280A | 330 | 20.5 | 1480 | 4.5 | 23.4 | Y200L-4H 30 | 510 |
CLV200-280 B | 290 | 17 | 1480 | 4.5 | 17.3 | Y180L-4H 22 | 450 |
CLV200-280 B2 | 250 | 20.5 | 1480 | 4 | 17.9 | Y180L-4H 22 | 450 |
CLV200-300A | 325 | 27.5 | 1480 | 4.5 | 30.3 | Y225S-4H 37 | 571 |
CLV200-350 A | 330 | 41 | 1480 | 4.5 | 46.5 | Y250M-4H55 | 820 |
CLV250-280 A | 500 | 20.5 | 1480 | 4.5 | 34.8 | Y225M-4H45 | 895 |
CLV250-280 B | 415 | 17 | 1480 | 4.2 | 24.4 | Y200L-4H30 | 800 |
CLV250-300 B, | 415 | 27 | 1480 | 4.5 | 38.9 | Y225M-4H45 | 905 |
CLV250-350 A | 500 | 34 | 1480 | 5 | 56.8 | Y280S-4H75 | 1150 |
CLV250-360 A | 500 | 14 | 980 | 4 | 23.5 | Y225M-6H30 | 725 |
CLV250-360 B | 400 | 14 | 980 | 3.5 | 19.4 | Y200L2-6H22 | 675 |
CLV250-450A | 500 | 60 | 1480 | 5 | 107.5 | Y315M-4H132 | 1600 |
CLV250-450B | 500 | 50 | 1480 | 5 | 85.1 | Y315S-4H110 | 1500 |
CLV300-300 A | 705 | 27.5 | 1480 | 4.5 | 64.7 | Y280S-4H75 | 1520 |
CLV300-360 A | 660 | 14 | 980 | 4.5 | 31.8 | Y250M-6H37 | 800 |
CLV350-280 A | 830 | 20.5 | 1480 | 4.8 | 57.6 | Y280S-4H75 | 1520 |
CLV350-280 B2 | 620 | 20.5 | 1480 | 4.5 | 44.1 | Y250M-4H55 | 1390 |
CLV350-360 A | 829 | 14 | 980 | 3.8 | 39.4 | Y280S-6H45 | 1500 |
CLV400-300A | 1400 | 20 | 1480 | 4 | 93 | Y315S-4H110 | 1500 |
(60Hz3φ 440V) main technical parameter
Type | (60Hz3φ 440V) main technical parameter |
Motor type & power kW |
||||
Capacity m3/h |
Head m |
Speed r/min |
NPSHR m |
Shaft pover kW |
||
CLV65-200A | 33 | 21.5 | 1750 | 2.8 | 3.2 | Y112M-4H4 |
CLV65-280A | 36 | 31 | 1750 | 3.2 | 5.2 | Y132M-4H7.5 |
CLV65-300A | 36 | 41 | 1780 | 3.2 | 7.4 | Y160M-4H11 |
CLV65-350A | 30 | 60 | 1780 | 2.8 | 10.6 | Y160L-4H15 |
CLV80-200A | 58 | 21.5 | 1750 | 3.2 | 4.9 | Y132S-4H5.5 |
CLV80-220A | 54 | 90 | 3580 | 5.5 | 21.4 | Y200L1-2H30 |
CLV80-220B; | 54 | 70 | 3550 | 4.8 | 17.5 | Y180M-2H22 |
CLV80-280A | 65 | 31 | 1780 | 3.8 | 7.8 | Y160M-4H11 |
CLV80-300A | 56 | 41 | 1780 | 3.5 | 10.1 | Y160M-4H11 |
CLV80-350A | 65 | 60 | 1780 | 3.8 | 18.6 | Y180L-4H22 |
CLV80-350B | 48 | 51 | 1780 | 3.5 | 11.8 | Y160L-4H15 |
CLV80-350 B2 | 50 | 60 | 1780 | 3.5 | 14.3 | Y180M-4H 18.5 |
CLV1100-200 A | 100 | 21 | 1780 | 4 | 7.8 | Y160M-4H11 |
CLV100-220A | 115 | 100 | 3580 | 5.8 | 40.8 | Y250M-2H55 |
CLV;100-220 B | 105 | 80 | 3580 | 5.8 | 32.5 | Y200L2-2H37 |
CLV100-280A | 100 | 31 | 1780 | 4 | 11.6 | Y160L-4H15 |
CLV100-300 A | 100 | 41 | 1780 | 3.8 | 15.6 | Y180M-4H 18.5 |
CLV100-350 A | 100 | 60 | 1780 | 4.2 | 24.7 | Y200L-4H30 |
CLV125-200 A | 140 | 20.5 | 1780 | 4.5 | 10.2 | Y160L-4H15 |
CLV125-220 B | 150 | 80 | 3580 | 6.8 | 45.2 | Y250M-2H55 |
CLV125-220 A | 180 | 100 | 3580 | 7.3 | 64.8 | Y280S-2H75 |
CLV125-270 A | 170 | 125 | 3580 | 6.8 | 81.7 | Y280M-2H90 |
CLV125-280A | 150 | 31 | 1780 | 4 | 16.8 | Y180L-4H22 |
CLV125-300 A | 150 | 41 | 1780 | 3.5 | 24.5 | Y200L-4H30 |
CLV125-350A | 150 | 60 | 1780 | 4.3 | 34.3 | Y225M-4H45 |
CLV125-350 B | 140 | 50 | 1780 | 4 | 27.9 | Y225S-4H37 |
CLV150-200 A | 230 | 20.5 | 1780 | 4.3 | l16.7 | Y180L-4H22 |
CLV150-220 A | 330 | 90 | 3580 | 6.8 | 105.5 | Y315M-2H 132 |
CLV150-270 A | 320 | 125 | 3580 | 5.3 | 143.6 | Y315L-2H 160 |
CLV150-280 A | 220 | 31 | 1780 | 4.5 | 24.7 | Y200L-4H30 |
CLV150-300 A | 220 | 40 | 1780 | 5.3 | 32.1 | Y225S-4H37 |
CLV1150-350 A | 230 | 60 | 1780 | 4.5 | 51.3 | Y280S-4H75 |
CLV1150-350 B; | 230 | 51 | 1780 | 4.8 | 44.7 | Y250M-4H55 |
CLV200-200 A | 400 | 20 | 1780 | 4.8 | 27.9 | Y200L-4H30 |
CLV200-280 A | 400 | 30 | 1780 | 6 | 41.2 | Y225M-4H 45 |
CLV200-280 B | 350 | 25 | 1780 | 5.8 | 31.4 | Y225S-4H37 |
CLV200-280 B | 300 | 30 | 1780 | 5.3 | 31.4 | Y225S-4H37 |
CLV200-300 A | 390 | 40 | 1780 | 5.8 | 53.4 | Y280S-4H75 |
CLV200-350 A | 400 | 60 | 1780 | 5.8 | 82 | Y280M-4H90 |
CLV250-280 A | 600 | 30 | 1780 | 5.8 | 61.1 | Y280S-4H75 |
CLV250-280 B | 500 | 25 | 1780 | 5.5 | 43.3 | Y250M-4H 55 |
CLV250-300 B | 500 | 40 | 1780 | 5.8 | 69.5 | Y280S-4H75 |
CLV250-350 A | 600 | 50 | 1780 | 6.5 | 100.2 | Y315M-4H 132 |
CLV250-360 A | 600 | 20 | 1190 | 4.8 | 40.3 | Y280S-6H45 |
CLV250-360 B2 | 480 | 20 | 1190 | 4.8 | 34.3 | Y250M-6H37 |
CLV250-450A | 600 | 86 | 1780 | 6.5 | 185 | Y315L,-4H 200 |
CLV250-450B | 600 | 72 | 1780 | 6.5 | 147 | Y315L1-4H 160 |
CLV300-300 A | 850 | 40 | 1780 | 5.8 | 113.5 | Y315M-4H 132 |
CLV300-360 A | 800 | 20 | 1190 | 5.8 | 55.1 | Y315S-6H75 |
CLV350-280 A | 1000 | 30 | 1780 | 6 | 101.6 | Y315S-4H110 |
CLV350-280 B2 | 750 | 30 | 1780 | 5.8 | 78.1 | Y280M-4H 90 |
CLV350-360 A | 1000 | 20 | 1190 | 4.8 | 67.9 | Y315S-6H75 |
CLV400-300A | 1680 | 28.8 | 1780 | 4.8 | 160 | Y315L2-4H 200 |
