CLZ Seires Marine Self-Priming Centrifugal Ballast And Bilge Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

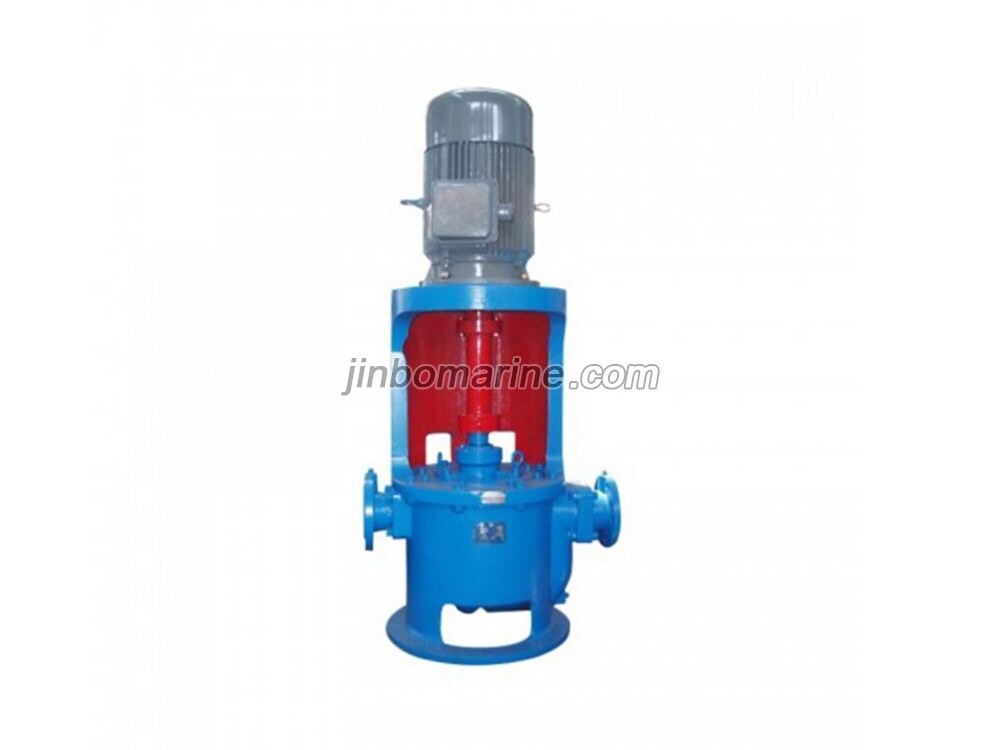

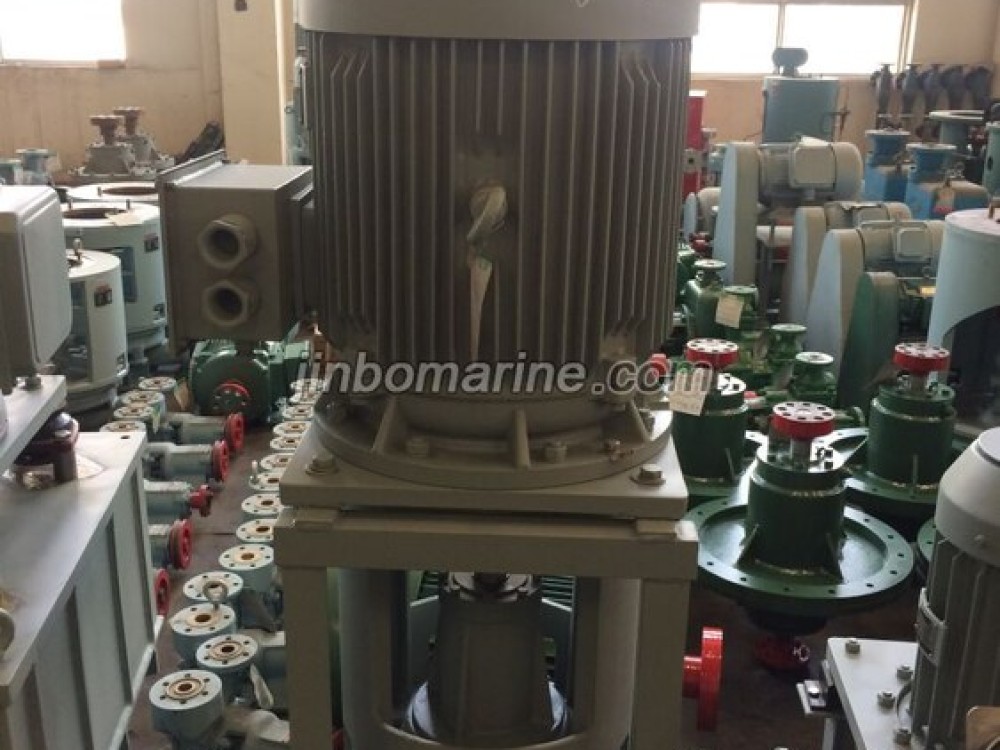

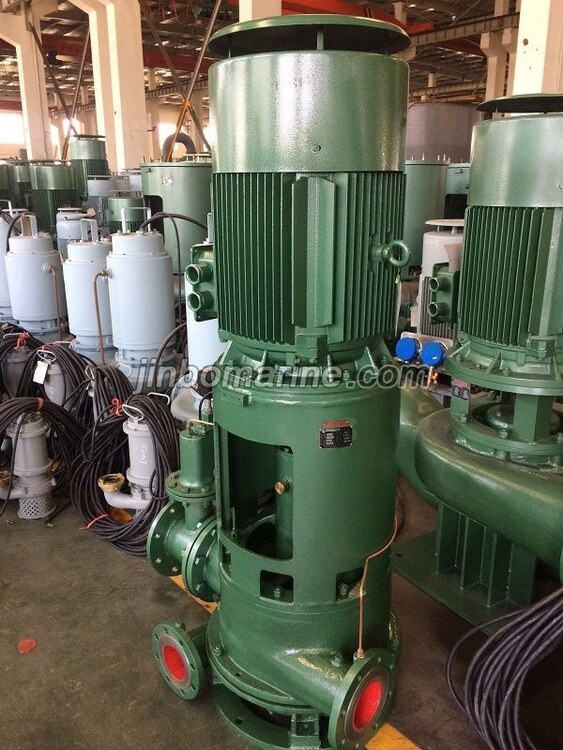

CLZ series vertical centrifugal self-priming marine pumps

CLZ series vertical centrifugal self-priming marine pumps are of small volumn, low weight and high function of self-priming.

The type of pump is suitable for ballast, fire control, cooling and so on the bilge in all kinds of ships and warships .But the mediums temperature should be lower than 80℃

Capacity: 5-600m3/h

Head:14.5-120m

Temperature:<80℃

Main Specification

Type Capacity Head Speed Shaft power Motor Power NPSHr Efficiency
(m3/h) (m) (r/min) (kw) (kw) (m) (%)
40CLZ-2 5 60 2900 4.3 Y132S1-2H5.5 3.5 19
40CLZ-2A 4 54 2900 3.1 Y132S1-2H5.5 3.5 19
40CLZ-2B 4 38 2900 2.2 Y112M-2H4 3.5 19
50CLZ-4.5 12.5 32 2900 2.7 Y112M-2H4 4 41
50CLZ-4.5A 11.2 26 2900 1.93 Y100L-2H3 4 41
50CLZ-4.5B 10 28 2900 1.86 Y100L-2H3 4 41
50CLZ-4.5C 10 20.5 2900 1.33 Y90L-2H2.2 4.5 42
50CLZ-6 20 32 2900 3.6 Y132S1-2H5.5 4 49
50CLZ-6A 17 28 2900 2.64 Y112M-2H4 4 49
50CLZ-9 27 14.5 2900 1.87 Y100L-2H3 4 57
50CLZ-9A 21 12 2900 1.25 Y90L-2H2.2 4 55
50CLZ-7 12.5 20 2900 1.33 Y90L-2H2.2 4 51
50CLZ-7A 10 17 2900 0.91 Y90S-2H1.5 4 51
50CLZ-7B 10 14 2900 0.76 Y90S-2H1.5 4 50
50CLZ-3 12.5 50 2900 4.9 Y132S2-2H7.5 4 35
50CLZ-3A 10 45 2900 3.5 Y132S1-2H5.5 4 35
50CLZ-3B 10 32 2900 2.5 Y112M-2H4 4 35
50CLZ-4 20 50 2900 6.5 Y132S2-2H7.5 4 42
50CLZ-4A 17 46 2900 5.1 Y132S2-2H7.5 4 42
50CLZ-4B 17 36 2900 4 Y132S1-2H5.5 4 42
65CLZ-9 25 20 2900 2.3 Y100L-2H3 4 61
65CLZ-9A 21 17 2900 1.62 Y90-2H2.2 4 60
65CLZ-6 25 32 2900 4.2 Y132S1-2H5.5 4 52
65CLZ-6A 23 27.1 2900 3.3 Y132S1-2H5.5 4 52
65CLZ-6B 21 28 2900 3.1 Y112M-2H4 4 52
65CLZ-5 25 45 2900 6.52 Y132S2-2H7.5 4 47
65CLZ-5A 22.5 36.5 2900 4.8 Y132S1-2H5.5 4 47
65CLZ-4.5 25 60 2900 9.3 Y160M1-2H11 4 44
65CLZ-4.5A 22 54 2900 7.35 Y160M1-2H11 4 44
65CLZ-4.5B 20 38 2900 4.7 Y132S2-2H7.5 4.3 44
65CLZ-3 25 80 2900 15.6 Y160L-2H18.5 4.2 35
65CLZ-3A 22 75 2900 12.83 Y160M2-2H15 4.2 35
65CLZ-3B 20 51 2900 7.94 Y160M2-2H15 4.5 35
65CLZ-8 35 32 2900 5.5 Y132S2-2H7.5 4 56
65CLZ-8A 32 28 2900 4.4 Y132S1-2H5.5 4 55
65CLZ-5.5 35 48 2900 8.6 Y160M2-2H15 4 53
65CLZ-5.5A 30 39 2900 6.33 Y132S2-2H7.5 4 52
80CLZ-13 45 21 2900 4.44 Y132S1-2H5.5 4 58
80CLZ-13A 40 18 2900 3.44 Y112M-2H4 5 57
80CLZ-9 50 32 2900 7.3 Y160M1-2H11 5 60
80CLZ-9A 45 26 2900 5.5 Y132S2-2H7.5 5 58
80CLZ-6 50 50 2900 11.7 Y160M2-2H15 5 58
80CLZ-6A 45 48 2900 10.3 Y160M2-2H15 5 57
80CLZ-6B 45 40 2900 8.6 Y160M1-2H11 5 57
80CLZ-7.5 60 50 2900 14.1 Y160L-2H18.5 4.5 58
80CLZ-7.5A 55 47 2900 12.35 Y160M2-2H15 4.5 57
80CLZ-5.5 45 62 2900 14.1 Y160L-2H18.5 4.5 54
80CLZ-5.5A 40 58 2900 12 Y160M2-2H15 4.5 53
80CLZ-5.5B 40 50 2900 10.3 Y160M2-2H15 4.5 53
80CLZ-5 60 80 2900 24.7 Y200L1-2H30 4.5 53
80CLZ-5A 57 72 2900 20.3 Y200L1-2H30 4.5 55
80CLZ-5B 54 65 2900 17.7 Y180M-2H22 4.5 54
80CLZ-3 50 120 2900 36.3 Y225M-2H45 4.5 45
80CLZ-3A 45 110 2900 30 Y200L2-2H37 4.5 45
80CLZ-3B 42.5 87 2900 22.37 Y200L1-2H30 4.5 45
100CLZ-17 80 20 2900 6.8 Y160M1-2H11 4.5 64
100CLZ-17A 72 18 2900 5.8 Y132S2-2H7.5 4.5 62
100CLZ-12 80 32 2900 10.75 Y160M2-2H15 4.8 65
100CLZ-12A 72 28 2900 8.6 Y160M1-2H11 4.8 64
100CLZ-8 80 50 2900 17.9 Y180M-2H22 4.8 61
100CLZ-8A 72 46 2900 15.3 Y160L-2H18.5 4.8 59
100CLZ-6 80 80 2900 32.9 Y200L2-2H37 5 53
100CLZ-6A 72 75 2900 28.8 Y200L2-2H37 5 51
100CLZ-18.5 100 20 2900 8.25 Y160M1-2H11 5 66
100CLZ-18.5A 95 18 2900 7.3 Y160M1-2H11 5 64
100CLZ-13 100 32 2900 12.5 Y160L-2H18.5 5 70
100CLZ-13A 95 28 2900 10.7 Y160M2-2H15 5 68
100CLZ-9 100 50 2900 22 Y200L1-2H30 5 62
100CLZ-9A 95 45 2900 19.4 Y200L1-2H30 5 60
100CLZ-6.5 100 80 2900 36.3 Y225M-2H45 5 60
100CLZ-6.5A 95 75 2900 33.44 Y225M-2H45 5 58
100CLZ-5 100 120 2900 65.33 Y280S-2H75 5 50
100CLZ-5A 95 110 2900 58.06 Y280S-2H75 5 49
100CLZ-5B 90 97 2900 48.5 Y250M-2H55 5 49
125CLZ-5 120 120 2900 67.6 Y280M-2H90 5 58
125CLZ-5A 114 108 2900 57.8 Y280S-2H75 5 58
125CLZ-5B 108 97 2900 50 Y280S-2H75 5 57
125CLZ-23 160 20 2900 14.1 Y160L-2H18.5 5 62
125CLZ-16.5 160 32 2900 21.1 Y200L1-2H30 5 66
125CLZ-16.5A 150 28 2900 17.9 Y180M-2H22 5 64
125CLZ-12 160 50 2900 30.7 Y225S-4H37 6 71
125CLZ-12A 150 46 2900 26.5 Y200L1-2H30 6 71
125CLZ-8 160 80 2900 58.1 Y280S-2H75 6 60
125CLZ-8A 150 75 2900 51 Y280S-2H75 6 60
125CLZ-8B 150 68 2900 47.1 Y250M-2H55 6 59
125CLZ-13 200 50 2900 38.34 Y225M-2H45 6 71
125CLZ-13A 185 45 2900 31.9 Y225S-4H37 6 71
125CLZ-9 200 80 2900 70.3 Y280M-2H90 6 62
125CLZ-9A 180 72 2900 57 Y280S-2H75 6 62
125CLZ-7 200 125 2900 109.77 Y315M-2H132 6 62
125CLZ-7A 190 112.8 2900 94.1 Y315S-2H110 6 62
125CLZ-7B 180.5 101.8 2900 82 Y315S-2H110 6 61
150CLZ-10 265 86 2900 100.1 Y315M-2H132 5.5 62
150CLZ-10A 251 77 2900 84.86 Y315S-2H110 5.5 62
200CLZ-11.5 300 32 1450 43.6 Y250M-4H55 5 60
200CLZ-11.5A 282 28.3 1450 36.8 Y225M-4H45 5 59
200CLZ-11.5B 264 24.8 1450 30.73 Y225S-4H37 5 58
200CLZ-24.5 450 15 1450 29.2 Y225S-4H37 6 63
200CLZ-24.5A 418 13 1450 23.86 Y200L-4H30 6 62
200CLZ-10 400 45 1450 75.4 Y280M-4H90 5.2 65
200CLZ-10A 380 41 1450 66.27 Y280M-4H90 5.2 64
200CLZ-10B 340 32.5 1450 47 Y250M-4H55 5.2 64
250CLZ-16 500 28 1450 63.5 Y280S-4H75 5.5 60
250CLZ-16A 475 25.3 1450 55.45 Y280S-4H75 5.5 59
40CLZ1-2 6 86.4 7.43 3500 Y160M1-2H11 18 4
40CLZ1-2A 4.8 77.76 5.36 3500 Y132S2-2H7.5 18 4
40CLZ1-2B 4.8 54.72 3.8 3500 Y132S1-2H5.5 18 4
50CLZ1-4.5 15 46.08 4.67 3500 Y132S1-2H5.5 40 4.4
50CLZ1-4.5A 13.44 37.44 3.34 3500 Y132S1-2H5.5 40 4.4
50CLZ1-4.5B 12 40.32 3.21 3500 Y112M-2H4 40 4.4
50CLZ1-4.5C 12 29.52 2.3 3500 Y100L-2H3 40 4.4
50CLZ1-6 24 46.08 6.22 3500 Y132S2-2H7.5 49 4.4
50CLZ1-6A 20.4 40.32 4.56 3500 Y132S1-2H5.5 49 4.4
50CLZ1-9 32.4 20.88 3.23 3500 Y132S1-2H5.5 57 4.4
50CLZ1-9A 25.2 17.28 2.16 3500 Y100L-2H3 55 4.4
50CLZ1-7 15 28.8 2.3 3500 Y112M-2H4 51 4.4
50CLZ1-7A 12 24.48 1.57 3500 Y90L-2H2.2 51 4.4
50CLZ1-7B 12 20.16 1.31 3500 Y90L-2H2.2 50 4.4
50CLZ1-3 15 72 8.47 3500 Y160M1-2H11 35 4.4
50CLZ1-3A 12 64.8 6.05 3500 Y132S2-2H7.5 35 4.4
50CLZ1-3B 12 46.08 4.32 3500 Y132S1-2H5.5 35 4.4
50CLZ1-4 24 72 11.23 3500 Y160M2-2H15 42 4.4
50CLZ1-4A 20.4 66.24 8.81 3500 Y160M1-2H11 42 4.4
50CLZ1-4 20.4 51.84 6.91 3500 Y160M1-2H11 42 4.4
65CLZ1-9 30 28.8 3.97 3500 Y132S1-2H5.5 61 4.4
65CLZ1-9A 25.2 24.48 2.8 3500 Y112M-2H4 60 4.4
65CLZ1-6 30 46.08 7.26 3500 Y160M1-2H11 51 4.4
65CLZ1-6A 27.6 39.024 5.7 3500 Y132S2-2H7.5 51 4.5
65CLZ1-6B 25.2 40.32 5.36 3500 Y132S2-2H7.5 51 4.5
65CLZ1-5 30 64.8 11.27 3500 Y160M2-2H15 47 4.5
65CLZ1-5A 27 52.56 8.29 3500 Y160M1-2H11 47 4.5
65CLZ1-4.5 30 86.4 16.07 3500 Y180M-2H22 44 4.4
65CLZ1-4.5A 26.4 77.76 12.7 3500 Y160M2-2H15 44 4.4
65CLZ1-4.5B 24 54.72 8.12 3500 Y160M1-2H11 44 4.6
65CLZ1-3 30 115.2 26.96 3500 Y160M2-2H30 35 4.9
65CLZ1-3A 26.4 108 22.17 3500 Y200L1-2H30 35 4.9
65CLZ1-3B 24 73.44 13.72 3500 Y160L-2H18.5 35 4.9
65CLZ1-8 42 46.08 9.5 3500 Y160M1-2H11 55 5.5
65CLZ1-8A 38.4 40.32 7.6 3500 Y160M1-2H11 55 5.5
65CLZ1-5.5 42 69.12 14.86 3500 Y160L-2H18.5 53 4.9
65CLZ1-5.5A 36 56.16 10.94 3500 Y160M1-2H11 52 4.9
80CLZ1-13 54 30.24 7.67 3500 Y160M1-2H11 58 5.4
80CLZ1-13A 48 25.92 5.94 3500 Y132S2-2H7.5 57 5.4
80CLZ1-9 60 46.08 12.61 3500 Y160M2-2H15 60 5.5
80CLZ1-9A 54 37.44 9.5 3500 Y160M1-2H11 58 5.5
80CLZ1-6 60 72 20.22 3500 Y200L1-2H30 57 5.6
80CLZ1-6A 54 69.12 17.8 3500 Y180M-2H22 56 5.6
80CLZ1-6B 54 57.6 14.86 3500 Y160L-2H18.5 56 5.6
80CLZ1-7.5 72 72 24.36 3500 Y200L1-2H30 57 4.9
80CLZ1-7.5A 66 67.68 21.34 3500 Y200L1-2H30 56 4.9
80CLZ1-5.5 54 89.28 24.36 3500 Y200L1-2H30 53 4.9
80CLZ1-5.5A 48 83.52 20.74 3500 Y200L1-2H30 53 4.9
80CLZ1-5.5B 48 72 17.8 3500 Y180M-2H22 53 4.9
80CLZ1-5 72 115.2 42.68 3500 Y250M-2H55 53 5.2
80CLZ1-5A 68.4 103.68 35.08 3500 Y225M-2H45 54 5.2
80CLZ1-5B 64.8 93.6 30.59 3500 Y200L2-2H37 53 5.2
80CLZ1-3 60 172.8 62.73 3500 45 4.9
80CLZ1-3A 54 158.4 51.84 3500 Y280S-2H75 45 4.9
80CLZ1-3B 51 125.28 38.66 3500 Y225M-2H45 45 4.9
100CLZ1-17 96 28.8 11.75 3500 Y160M2-2H15 64 4.5
100CLZ1-17A 86.4 25.92 10.02 3500 Y160M2-2H15 62 4.5
100CLZ1-12 96 46.08 18.58 3500 Y180M-2H22 65 4.8
100CLZ1-12A 86.4 40.32 14.86 3500 Y160L-2H18.5 64 4.8
100CLZ1-8 96 72 30.93 3500 Y200L2-2H37 59 5.2
100CLZ1-8A 86.4 66.24 26.44 3500 Y200L2-2H37 58 5.2
100CLZ1-6 96 115.2 56.85 3500 Y280S-2H75 53 5
100CLZ1-6A 86.4 108 49.77 3500 Y250M-2H55 51 5
100CLZ1-18.5 120 28.8 14.26 3500 Y160L-2H18.5 66 5
100CLZ1-18.5A 114 25.92 12.61 3500 Y160M2-2H15 64 5
100CLZ1-13 120 46.08 21.6 3500 Y200L1-2H30 70 5
100CLZ1-13A 114 40.32 18.49 3500 Y180M-2H22 68 5
100CLZ1-9 120 72 38.02 3500 Y200L2-2H37 62 5.7
100CLZ1-9A 114 64.8 33.52 3500 Y200L2-2H37 60 5.7
100CLZ1-6.5 120 115.2 62.73 3500 Y280S-2H75 60 5
100CLZ1-6.5A 114 108 57.78 3500 Y280S-2H75 58 5
100CLZ1-5 120 172.8 112.89 3500 Y315M-2H132 50 5
100CLZ1-5A 114 158.4 100.33 3500 Y315S-2H110 50 5
100CLZ1-5B 108 139.68 83.81 3500 Y315S-2H110 49 5
125CLZ1-5 144 172.8 116.81 3500 Y315L1-2H160 58 5.5
125CLZ1-5A 136.8 155.52 99.88 3500 Y315M-2H132 58 5.5
125CLZ1-5B 129.6 139.68 86.4 3500 Y315S-2H110 57 5.5
125CLZ1-23 192 28.8 24.36 3500 Y200L1-2H30 62 5.2
125CLZ1-16.5 192 46.08 36.46 3500 Y225M-2H45 66 5.2
125CLZ1-16.5A 180 40.32 30.93 3500 Y200L2-2H37 64 5.2
125CLZ1-12 192 72 53.05 3500 Y280S-2H75 71 6
125CLZ1-12A 180 66.24 45.79 3500 Y250M-2H55 70 6
125CLZ1-8 192 115.2 100.4 3500 Y315M-2H132 60 6.2
125CLZ1-8A 180 108 88.13 3500 Y315S-2H110 60 6.2
125CLZ1-8B 180 97.92 81.39 3500 Y315S-2H110 59 6.2
125CLZ1-13 240 72 66.25 3500 Y280S-2H75 71 6
125CLZ1-13A 222 64.8 55.12 3500 Y280S-2H75 71 6
125CLZ1-9 240 115.2 121.48 3500 Y315L1-2H160 61 6.4
125CLZ1-9A 216 103.68 98.5 3500 Y315M-2H132 61 6.4
125CLZ1-7 240 180 189.68 3500 Y355M-2H250 62 6
125CLZ1-7A 228 162.432 162.6 3500 Y315L2-2H200 62 6
125CLZ1-7B 216.6 146.592 141.7 3500 Y315L1-2H160 61 6
150CLZ1-10 318 123.84 172.97 3500 Y315L2-2H200 62 5.5
150CLZ1-10A 301.2 110.88 146.64 3500 Y315L2-2H200 62 5.5
200CLZ1-11.5 360 46.08 75.34 1750 Y280M-4H90 60 5
200CLZ1-11.5A 338.4 40.752 63.59 1750 Y280S-4H75 59 5
200CLZ1-11.5B 316.8 35.712 53.1 1750 Y280S-4H75 58 5
200CLZ1-24.5 540 21.6 50.46 1750 Y280S-4H75 63 6
200CLZ1-24.5A 501.6 18.72 41.23 1750 Y250M-4H55 62 6
200CLZ1-10 480 64.8 130.29 1750 Y315L1-4H 65 5.2
200CLZ1-10A 456 59.04 114.51 1750 Y315M-4132 64 5.2
200CLZ1-10B 408 46.8 81.22 1750 Y315S-4H110 64 5.2
250CLZ1-16 600 40.32 109.73 1750 Y315M-4132 60 5.5
250CLZ1-16A 570 36.432 95.82 1750 Y315S-4H110 59 5.5
