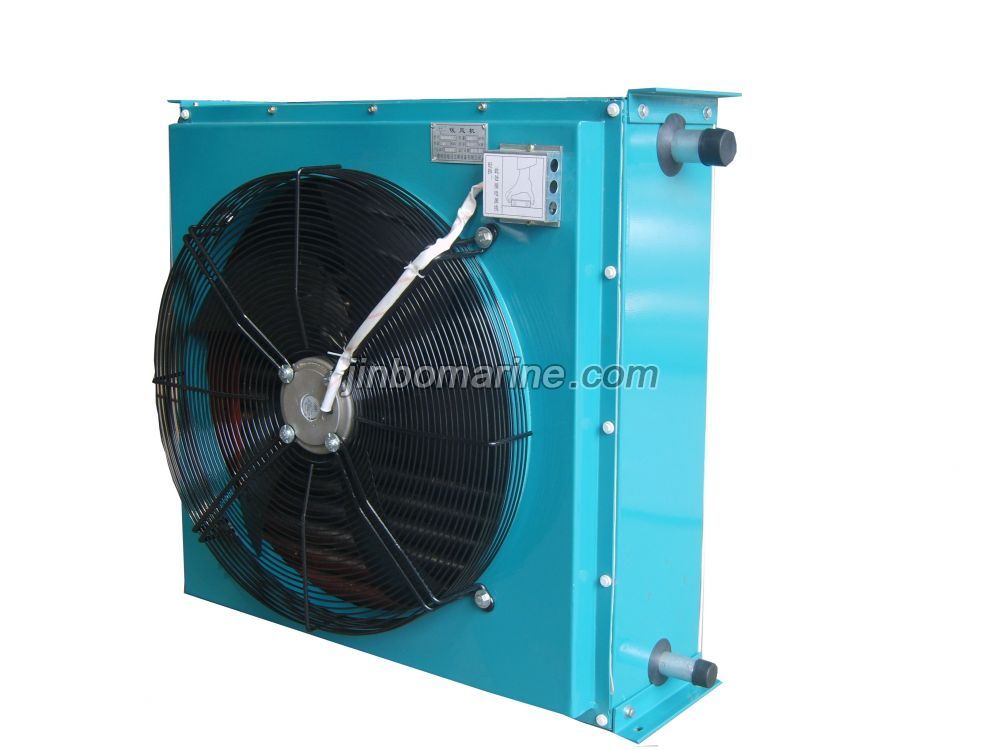

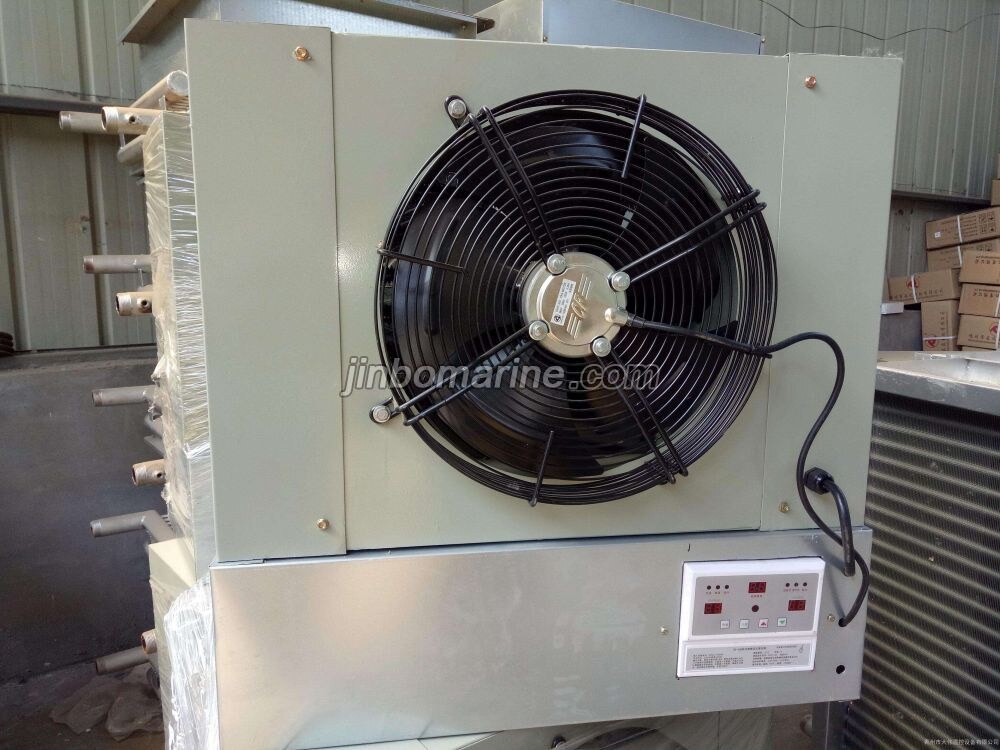

CNF/D Marine Electric Heating Air Fan Unit

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

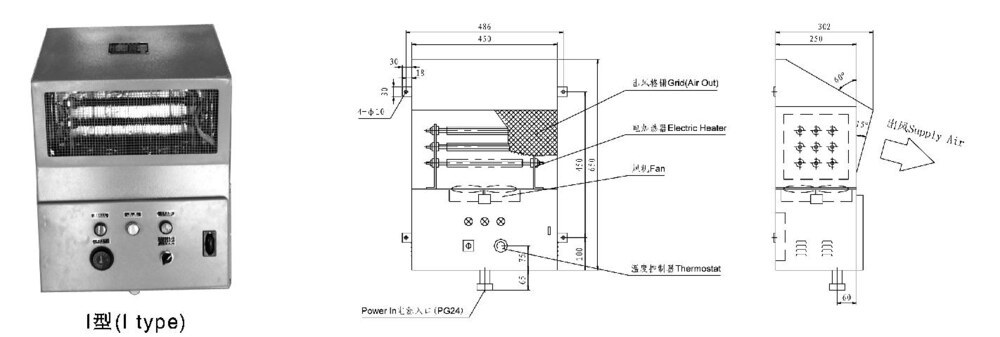

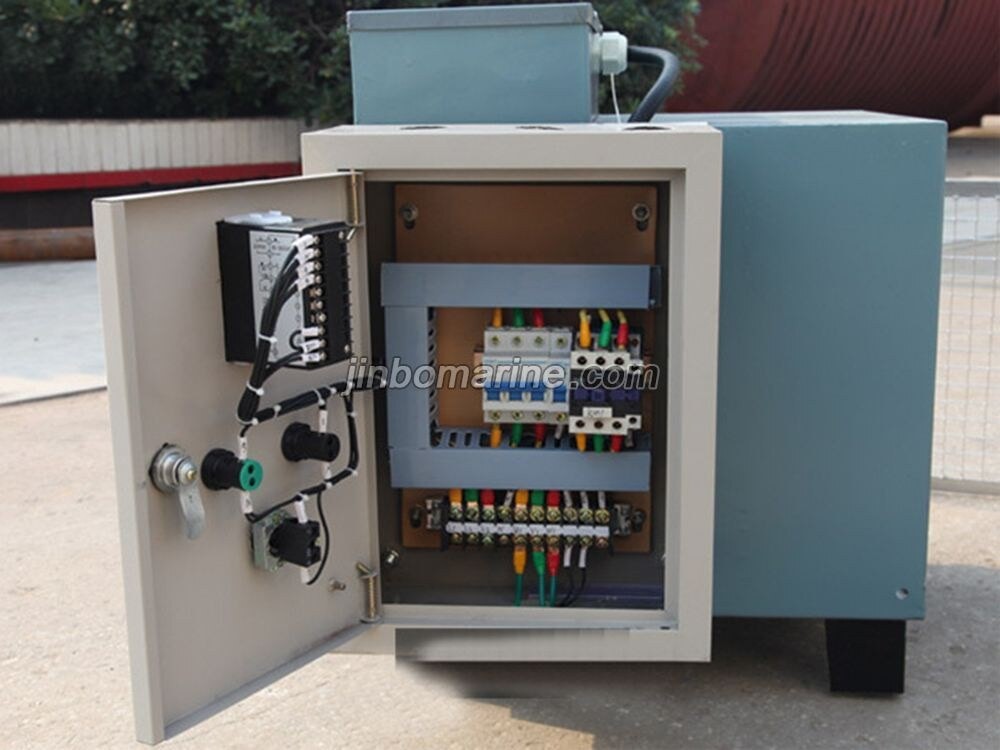

CNF/D Marine electric heating unit is composed of electric heater, fan, thermostat and control box:

Type CNF/D-2(I) CNF/D-3(I) CNF/D-4(I) CNF/D-5(I) CNF/D-6(I)
Electric heating capacity KW 2 3 4 5 6
Air flow m3/h 300 400 600 700 800
External pressure Pa 5～10 5～10 5～10 5～10 5～10
Fan motor power KW 0.03 0.04 0.05 0.06 0.07
Noise dB(A) 48 49 50 51 55
Weight Kg 40 42 43 45 50
Power supply AC380V/440V 3P 50/60Hz AC220V/230V 1P 50/60Hz

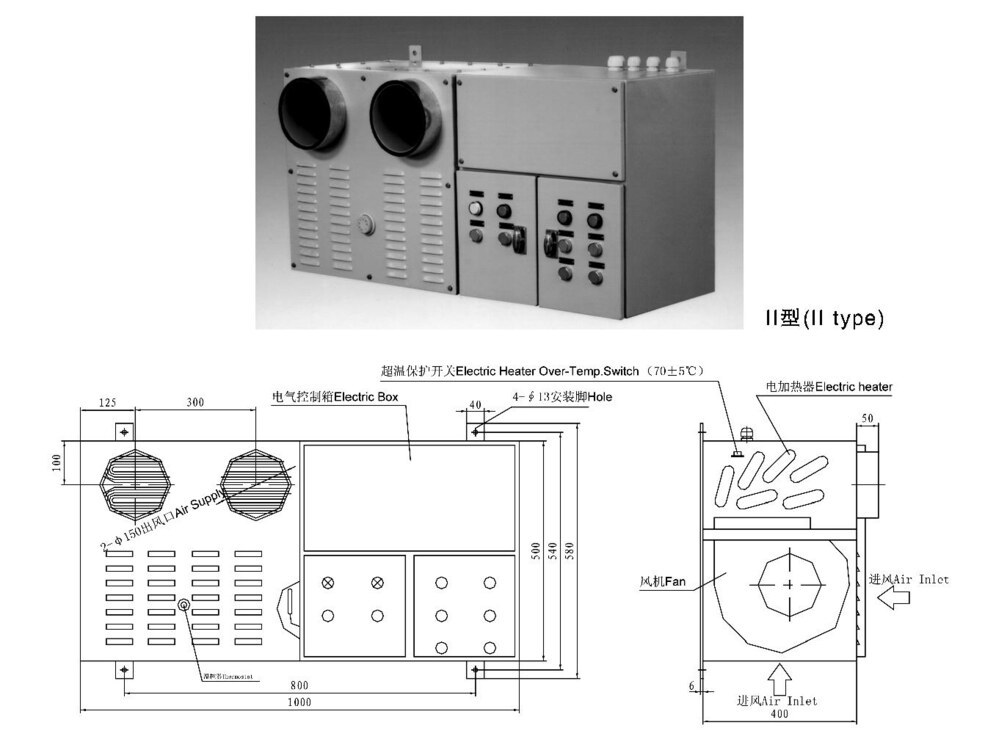

Type CNF/D-2(II) CNF/D-3(II) CNF/D-4(II) CNF/D-5(II) CNF/D-6(II)
Electric heating capacity KW 2 3 4 5 6
Air flow m3/h 600 700 800 900 1000
External pressure Pa 100～150 100～150 100～150 100～150 100～150
Fan motor power KW 0.18 0.18 0.25 0.25 0.32
Noise dB(A) 48 49 50 51 55
Weight Kg 40 42 43 45 50
Power supply AC380V/440V 3P 50/60Hz AC220V/230V 1P 50/60Hz
