CNFZ Marine Steam Heating Air Fan Unit

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

The heating unit, with 0.3Mpa saturated steam as the heating medium, is a critical equipment in main engine room, auxiliary machinery compartment and other compartments. When the ship is pulled in and the ambient temperature is close to 0℃, the unit must be started to keep the temperature in each compartment above 0℃to avoid the damage of the equipment and pipelines inside due to low temperature and facilitate the preparation for next voyage of the ship.

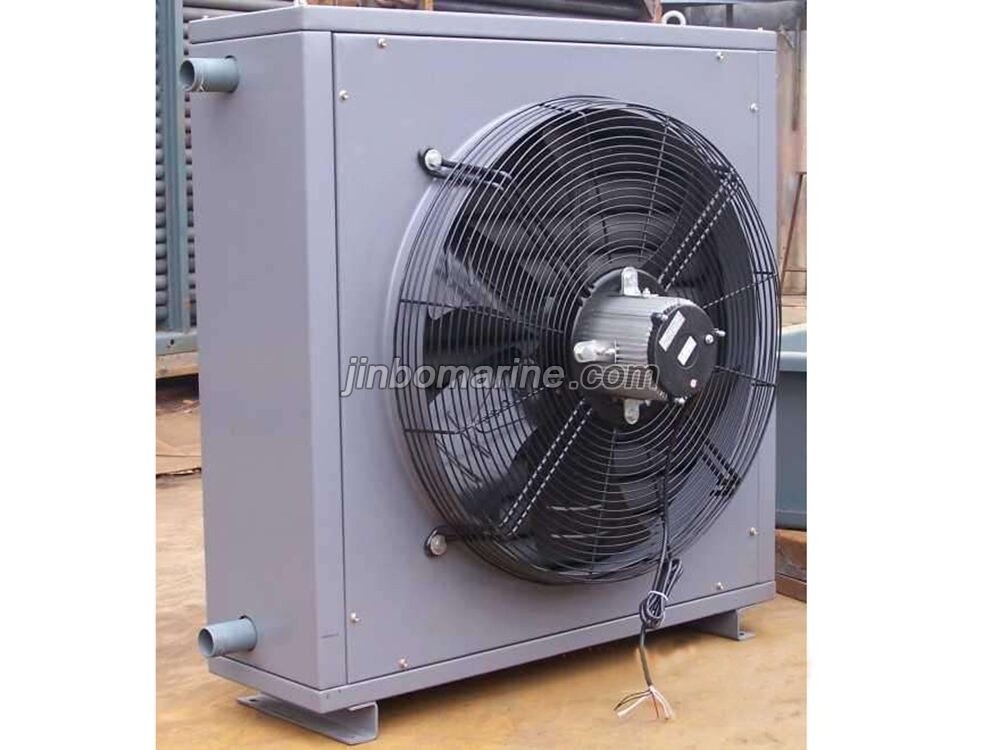

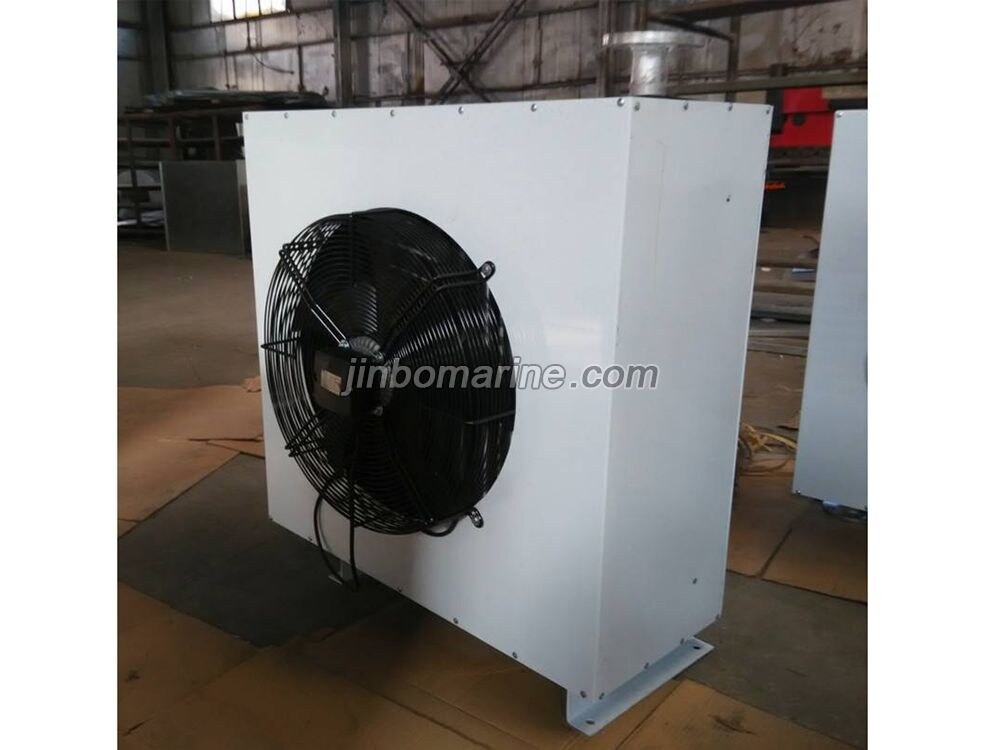

This equipment is composed of heat radiation coil pipe and axial fan.

Technical Data:

Type 4CNFZ2 9CNFZ2 11CNFZ2 13CNFZ2 15CNFZ2 18CNFZ2 21CNFZ2 29CNFZ2 35CNFZ2
Heating Capacity KW 4.8 10.4 12.9 14.7 17.8 21.2 24.6 33.4 41.2
Steam pressure Mpa 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4
Steam consumption Kg/h 8.3 17.9 22.2 25.3 30.2 36.5 42.3 57.4 70.8
Air flow m3/h 400 900 1100 1300 1500 1800 2100 2900 3500
Fan motor power kw 0.06 0.12 0.12 0.12 0.12 0.18 0.25 0.37 0.37
Noise dB(A) ≤54 ≤59 ≤62 ≤62 ≤66 ≤68 ≤70 ≤73 ≤73
Weight Kg 43 45 47 49 55 57 59 75 77

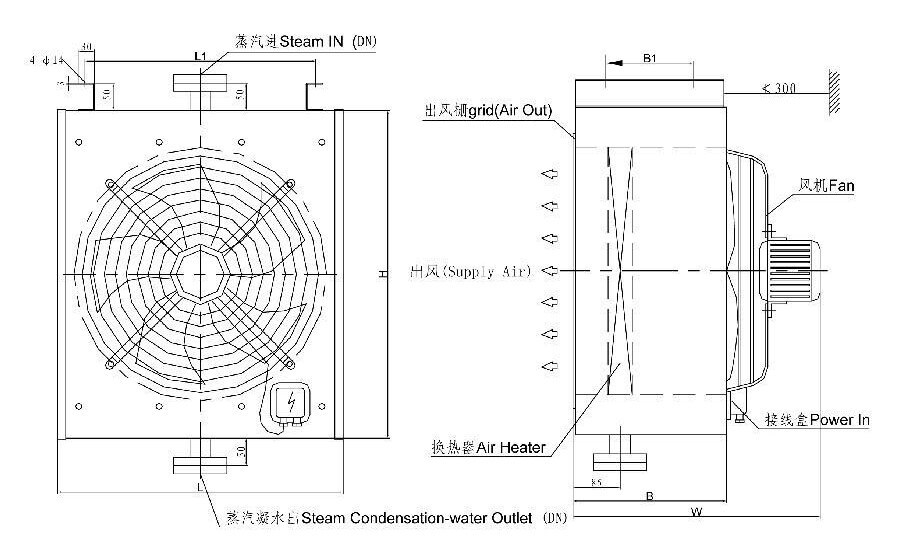

Dimension L(mm) 520 520 520 520 520 520 520 630 630
L1(mm) 420 420 420 420 420 420 420 520 520
H(mm) 450 450 450 450 595 595 450 700 700
W(mm) 350 350 350 350 450 450 350 550 550
B(mm) 225 225 225 225 280 280 225 340 340
B1(mm) 160 160 160 160 160 160 160 260 260
DN(mm) 25 25 25 25 25 25 32 32 40
Power Supply AC380V/440V 3P 50/60Hz AC220/230V 1P 50/60Hz
