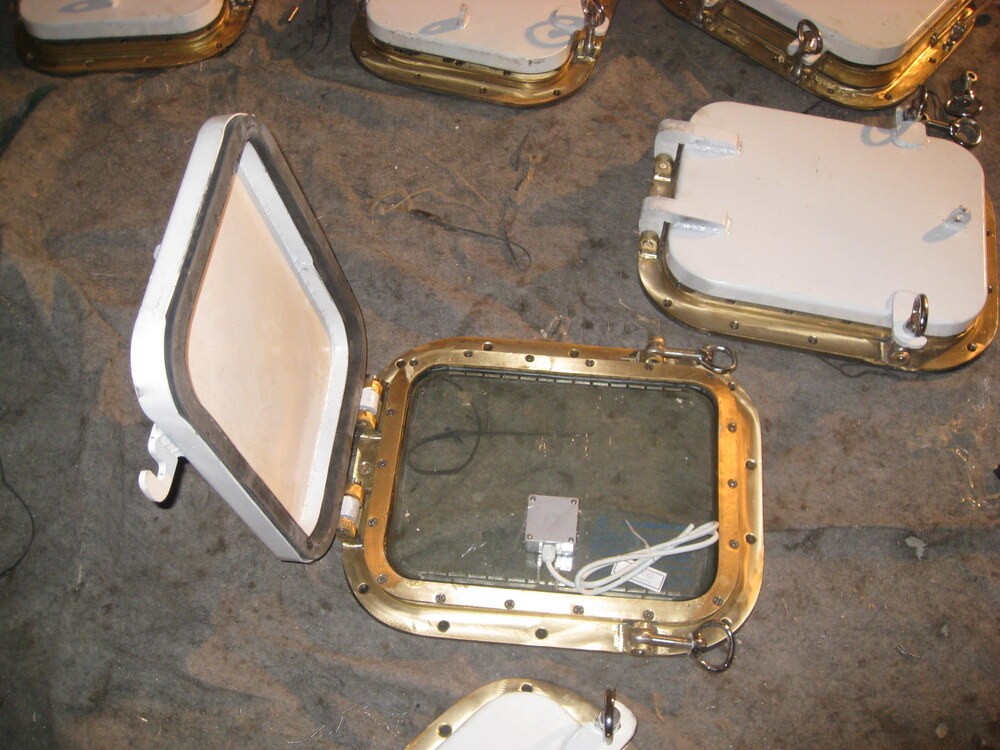

Copper Bolted Rectangular Window with electrically heated glass and deadlight
- Category:Marine Window
- Material:Copper
- Standards:GB/T5746-2001, ISO3903-1993
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Marine Ordinary Rectangular Window Details:
Standard: GB/T5746-2001, ISO3903-1993
Ship’s ordinary rectangular window is used on the supperstructure above freeboard deck or deck house of marine ships and naval ships and in the relative spaces of marine structure. It can be used as rectangular windows of inland ships. This product meets the regulations of SOLAS.
Series:
|
N |
Ordinary |
Common rectangular windows with toughened safety glass |
|
P |
Fireproof |
Rectangular windows used in “B” class fireproof division |
|
H |
Heating |
Rectangular windows with an electric heated glass |
Type:
E-heavy type rectangular window
F-light type rectangular window
Nominal Size Code:
|
Code |
Nominal Size(mm) |
|
1 |
300x425 |
|
2 |
355x500 |
|
3 |
400x560 |
|
4 |
450x630 |
|
5 |
500x710 |
|
6 |
560x800 |
|
7 |
900x630 |
|
8 |
1000x710 |
|
9 |
1100x800 |
Characteristic of Model:
|
Opening Type |
Opening Direction |
Installment Type |
Opening |
Suitable Code (Nominal Size) |
||||
|
Bolted Type |
Welded Type |
E |
F |
|||||
|
Opening Type |
Inwards opening “I” |
Side-hinged |
Left opening (L) |
B |
- |
ILB |
1~6 |
1~6 |
|
- |
W |
ILW |
||||||
|
Right opening(R) |
B |
- |
IRB |
|||||
|
- |
W |
IRW |
||||||
|
Top-hinged (T) |
B |
- |
ITB |
4~8 |
4~9 |
|||
|
- |
W |
ITW |
||||||
|
Outwards opening “O” |
Side-hinged |
Left opening (L) |
B |
- |
OLB |
1~6 |
1~6 |
|
|
- |
W |
OLW |
||||||
|
Right opening(R) |
B |
- |
ORB |
|||||
|
- |
W |
ORW |
||||||
|
Top-hinged (T) |
B |
- |
OTB |
4~8 |
4~8 |
|||
|
- |
W |
OTW |
||||||
|
Fixed Type |
- |
B |
- |
NOB |
1~8 |
1~9 |
||
|
- |
W |
NOW |
||||||
Glass Thickness:
|
Rectangular Window |
Thickness of clear glass (Y1) The thickness in the brackets is that of thefrosted glass (Y2) |
||||||||||||||||||
|
Series |
Type |
Nominal Size Code of Window |
|||||||||||||||||
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|||||||||||
|
N |
E |
10 |
(15) |
10 |
(15) |
12 |
(19) |
12 |
(19) |
15 |
- |
15 |
- |
19 |
- |
19 |
- |
- |
- |
|
F |
8 |
(12) |
8 |
(12) |
8 |
(12) |
8 |
(12) |
10 |
(15) |
10 |
(15) |
12 |
(19) |
12 |
(19) |
15 |
- |
|
|
P |
E |
According to ISO5797-1 (glass fireproof class B-0,B-15) |
|||||||||||||||||
|
F |
|||||||||||||||||||
|
H |
E |
According to ISO3434 |
|||||||||||||||||
|
F |
|||||||||||||||||||
Material Code Number:
|
Type |
Installment Type |
Material |
Material Code number |
||
|
Main Frame |
Glass holder |
Glass Clamp |
|||
|
Opening Type |
Bolted Type |
Copper(1) |
Copper(1) |
Copper(1) |
111 |
|
Steel(2) |
Steel(2) |
Steel(2) |
222 |
||
|
Aluminum(3) |
Aluminum(3) |
Aluminum(3) |
333 |
||
|
Welded Type |
Steel(2) |
Copper(1) |
Copper(1) |
211 |
|
|
Steel(2) |
Steel(2) |
Copper(1) |
221 |
||
|
Steel(2) |
Steel(2) |
Steel(2) |
222 |
||
|
Steel(2) |
Aluminum(3) |
Aluminum(3) |
233 |
||
|
Fixed Type |
Bolted Type |
Copper(1) |
Nothing (0) |
Copper(1) |
101 |
|
Steel(2) |
Nothing (0) |
Steel(2) |
202 |
||
|
Aluminum(3) |
Nothing (0) |
Aluminum(3) |
303 |
||
|
Welded Type |
Steel(2) |
Nothing (0) |
Copper(1) |
201 |
|
|
Steel(2) |
Nothing (0) |
Steel(2) |
202 |
||
|
Steel(2) |
Nothing (0) |
Aluminum(3) |
203 |
||
|
Aluminum(3) |
Nothing (0) |
Aluminum(3) |
303 |
||
Glass Code of “H” Type:
|
Electrical Supply |
Overheating protection device |
Minimum power loading w/dw2 |
||||
|
Current |
Voltage (V) |
Frequency (HZ) |
7 |
12 |
17 |
|
|
Code |
||||||
|
DC |
24 |
- |
G |
7G01 |
12G01 |
17G01 |
|
S |
7S01 |
12S01 |
17S01 |
|||
|
110 |
- |
G |
7G02 |
12G02 |
17G02 |
|
|
S |
7S02 |
12S02 |
17S02 |
|||
|
220 |
- |
G |
7G03 |
12G03 |
17G03 |
|
|
S |
7S03 |
12S03 |
17S03 |
|||
|
AC, 1phase |
115 |
50 |
G |
7G11 |
12G11 |
17G11 |
|
S |
7S11 |
12S11 |
17S11 |
|||
|
60 |
G |
7G12 |
12G12 |
17G12 |
||
|
S |
7S12 |
12S12 |
17S12 |
|||
|
220 |
50 |
G |
7G13 |
12G13 |
17G13 |
|
|
S |
7S13 |
12S13 |
17S13 |
|||
|
60 |
G |
7G14 |
12G14 |
17G14 |
||
|
S |
7S14 |
12S14 |
17S14 |
|||
|
AC, 3phase |
115 |
50 |
G |
7G31 |
12G31 |
17G31 |
|
S |
7S31 |
12S31 |
17S31 |
|||
|
60 |
G |
7G32 |
12G32 |
17G32 |
||
|
S |
7S32 |
12S32 |
17S32 |
|||
|
220 |
50 |
G |
7G33 |
12G33 |
17G33 |
|
|
S |
7S33 |
12S33 |
17S33 |
|||
|
60 |
G |
7G34 |
12G34 |
17G34 |
||
|
S |
7S34 |
12S34 |
17S34 |
|||
|
220/380 |
50 |
G |
7G35 |
12G35 |
17G35 |
|
|
S |
7S35 |
12S35 |
17S35 |
|||
|
60 |
G |
7G36 |
12G36 |
17G36 |
||
|
S |
7S36 |
12S36 |
17S36 |
|||
|
440 |
50 |
G |
7G37 |
12G37 |
17G37 |
|
|
S |
7S37 |
12S37 |
17S37 |
|||
|
60 |
G |
7G38 |
12G38 |
17G38 |
||
|
S |
7S38 |
12S38 |
17S38 |
|||
|
G---group regulator, S---single regulator, pls see 5.4 of ISO3434-1992 |
||||||
|
If a higher heating power is required for navigation in polar regions, the customer should consult with the window manufacturer or the heated glass manufacturer. |
||||||
Main Size List(mm):
|
Series |
Type |
Code |
Nominal Size |
Opening Size |
Frame |
Opening |
||
|
wxh |
W1xh1 |
r |
W2xh2 |
W3xh3 |
||||
|
N, P, H |
E,F |
1 |
300x425 |
352x477 |
76 |
348x473 |
430x555 |
ILB,ILW,IRB,IRW,ITB,ITW,OLB, OLW,ORB,ORW,OTB,OTW,NOB,NOW |
|
2 |
355x500 |
407x552 |
76 |
403x548 |
485x630 |
|||
|
3 |
400x560 |
452x612 |
76 |
448x608 |
530x690 |
|||
|
4 |
450x630 |
502x682 |
126 |
498x678 |
580x760 |
|||
|
5 |
500x710 |
552x762 |
126 |
548x758 |
630x840 |
|||
|
6 |
560x800 |
612x852 |
126 |
608x848 |
690x930 |
|||
|
7 |
900x630 |
952x682 |
126 |
948x678 |
1030x760 |
|||
|
8 |
1000x710 |
1052x762 |
126 |
1048x758 |
1130x840 |
|||
|
9 |
1100x800 |
1152x852 |
126 |
1148x848 |
1230x930 |
|||
