CP Series Marine Injection Pump
- Category:Other Marine Pump
- Material:Cast steel,Stainless steel
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
CP series marine injection pump
General description
The pump suction flange axis perpendicular to the pump body axis,convenient installation. Has a self-priming performance, can work continuously steadily. No moving parts, long service life. Hydrophobic system is mainly used in ships, also can be used for environmental protection, chemical industry, water conservancy, building materials, etc, for sea water, mixed liquid, river dredging, conveying powder, etc。

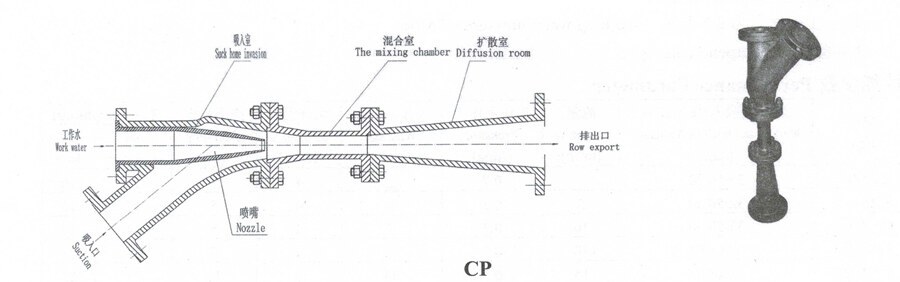

Structural Specifications
Performance prarmeter
| Type | Capacity | Delivery | suc'head | working pressure | water consumption | weight |
| m3/h | m | m | mpa | m3/h | kg | |
| CP5-0.7 | 5 | 8 | 4 | 0.7 | 3.6 | 14 |
| CP5-0.3 | 5 | 5 | 4 | 0.3 | 6 | 17.2 |
| CP10-0.7 | 10 | 8 | 4 | 0.7 | 7 | 20 |
| CP10-0.7K | 10 | 8 | 4 | 0.7 | 7 | 20 |
| CP10-0.3 | 10 | 5 | 4 | 0.3 | 12 | 20.5 |
| CP15-0.5 | 15 | 11 | 7 | 0.5 | 24 | 26 |
| CP15-0.3 | 15 | 5 | 4 | 0.3 | 19 | 25.8 |
| CP20-0.7 | 20 | 8 | 4 | 0.7 | 14 | 28.5 |
| CP20-0.7K | 20 | 8 | 4 | 0.7 | 14 | 28.5 |
| CP20-0.3 | 20 | 5 | 4 | 0.3 | 24 | 26 |
| CP30-0.7 | 30 | 8 | 4 | 0.7 | 21 | 32 |
| CP30-0.3 | 30 | 5 | 4 | 0.3 | 36 | 50 |
| CP40-0.3 | 40 | 5 | 4 | 0.3 | 47 | 49.5 |
| CP50-0.7 | 50 | 8 | 4 | 0.7 | 35 | 48 |
| CP50-0.3 | 50 | 6 | 3 | 0.3 | 35 | 56 |
| CP100-0.7 | 100 | 9 | 2 | 0.7 | 60 | 71.5 |
| CP100-0.3 | 100 | 6 | 3 | 0.3 | 110 | 73 |
| CP200-0.7 | 200 | 9 | 2 | 0.7 | 120 |
