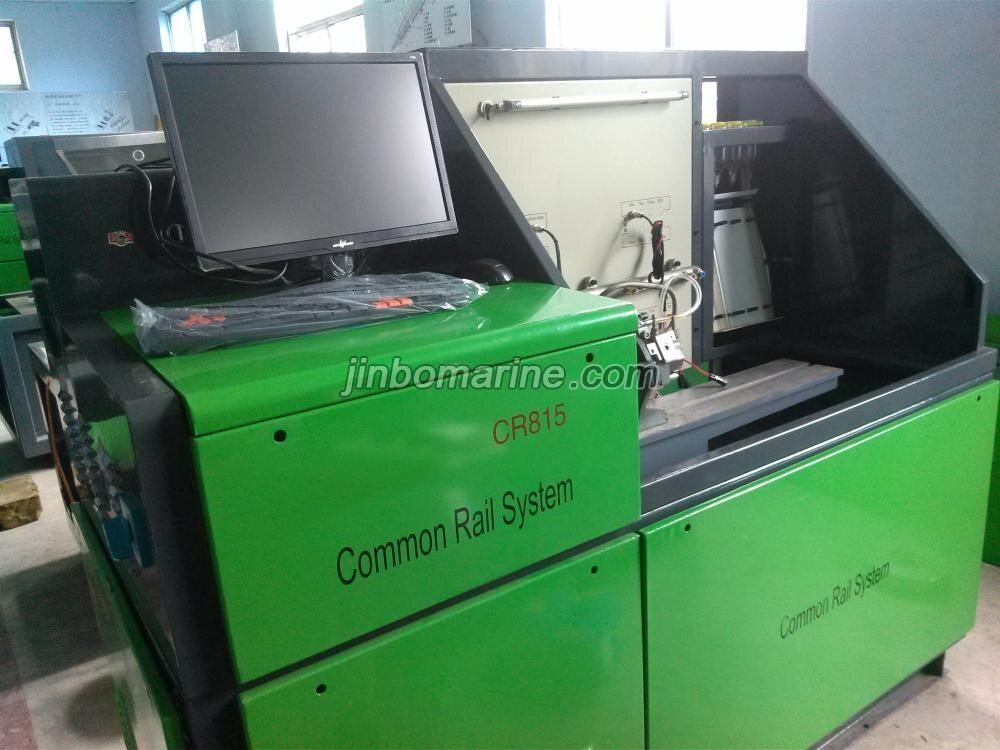

CR815 Common Rail Test Bench

CR815 COMMON RAIL TEST BENCH is mainly test for common rail pump and injector.Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured values.

• Main motor speed: 0-4000 r / min can be adjustable.
• Motor power: 11KW, 15KW optional.
• Fuel Injector open voltage Control range: 12V, 80V, 150V Control accuracy: phase adjustment.
• Injector opening frequency Control: 0-1000HZ Control accuracy: 1HZ.
• Fuel Injector Hold Time Control: 0-65535us.
• Delivery Oil Count Control: 0-1000 times Control accuracy: 1 times.
• Fuel pressure contrlol Control: 0-2000bar Control accuracy: 1bar.
• Electronic power: 3 PHASE 380V or 3 PHASE 220V optional
