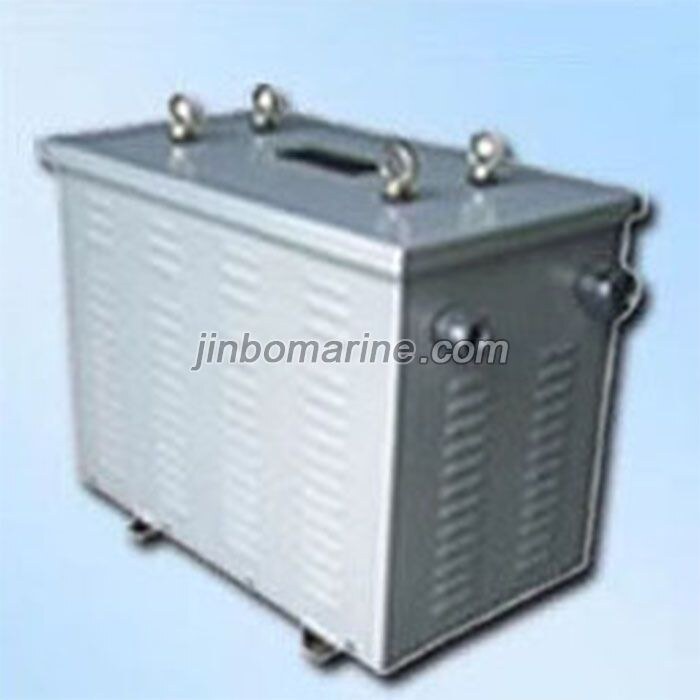

China CSD Marine Transformer Ship Transformer Made In China:

This series of transformer core is heart type structure, with high quality cold rolling steel sheet pile into the system, the windings can be firmly fixed, and the seismic performance is strong. Coil is enameled wire winding and become, the insulation class is B. Transformer box made of high qualified steel plate, the structure not only fully consider the air circulation, and can effectively prevent water and prevent the rats and mice and other small animals into the box, box body protection grade for IP22.

Spec Capacity (kVA) Primary rated voltage(V) Voltage combination Link set label
50Hz 60Hz 50Hz 60Hz
CSD-5 5 400 450 400 230 115 400 230 115 Yy0 Yy11 Dd0
CSD-10 10
CSD-16 16
CSD-20 20
CSD-25 25
CSD-30 30
CSD-40 40
CSD-50 50
CSD-63 63
CSD-80 80
CSD-100 100
