CUHD-AⅡ/302Ⅱ-2 Marine AC Uninterruptible Power Supply
- Category:Lifeboat And Rescue Boat Accessories
- Standards:CCS GD22-2015、IEC62040、IEC61000、IEC60068-2
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

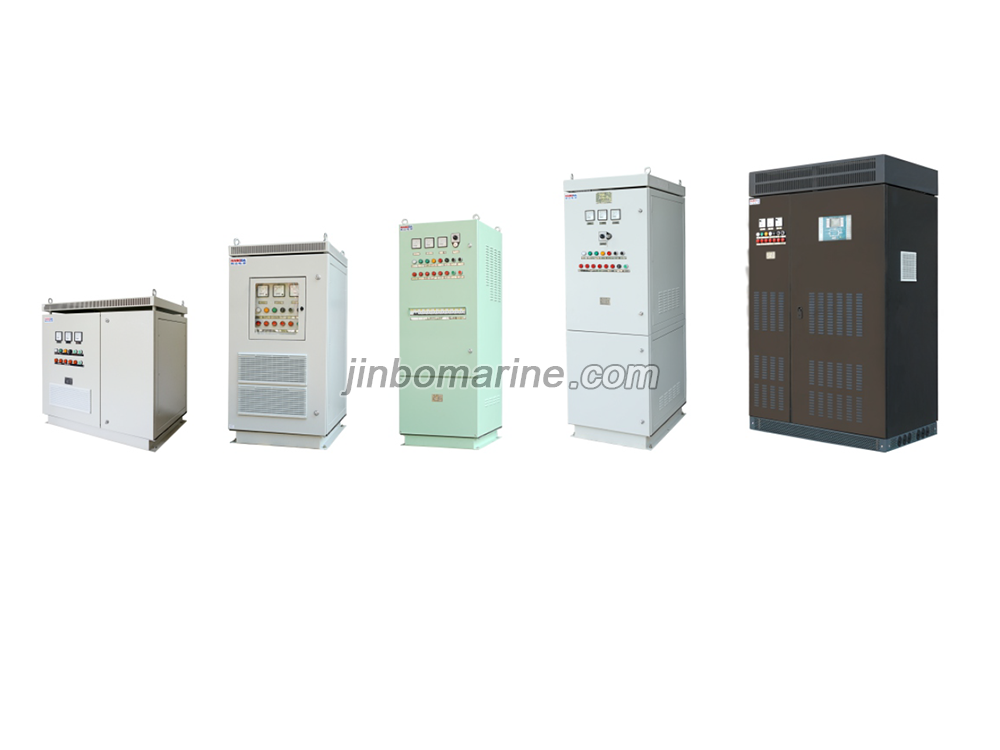

CUHD-AⅡ/302Ⅱ-2 Marine AC uninterruptible power supply:
This series of products comply with the specifications and standards of domestic and international marine industry related electrical equipment.
On-line double conversion design provides the best power supply quality and protection for the load.
1. Adopt DSP digital control technology, fast control response and high reliability.
2. Built-in isolation transformer design, strong shock resistance, can effectively suppress high frequency noise and ensure reliable operation of the load; isolate dangerous voltages to ensure personnel safety
3. The structure adopts the forward wind and the wind, and the front maintenance design makes testing and maintenance more convenient.
4. Intelligent heat dissipation design: The fan automatically matches the speed with the load, effectively reducing noise and extending the life of the fan.
5. Multiple passive dry contact outputs can monitor all states that may occur during UPS operation.
6. All-round protection function: with input overvoltage and undervoltage, phase loss, output overload, short circuit, battery overvoltage, overtemperature and other protection functions.
7. Rich intelligent communication interface: RS232, RS485, SNMP intelligent slot.
8. This series of products can provide all elements of function, size and installation.
9. All series of AC UPS power supplies have been approved by China Classification Society.
Technical data:
Model | 1KVA | 2KVA | 3KVA | 6KVA | 10KVA | 15KVA | 20KVA | 25KVA | 30KVA | |
Operation mode | Double conversion online | |||||||||
Isolation method | Transformer isolation | |||||||||
Capacity (KW) | 0.8 | 1.6 | 2.4 | 4.8 | 8 | 12 | 16 | 20 | 24 | |
Input | Rated voltage | (110VAC/220VAC/380VAC/440VAC Can choose)±20% | ||||||||
Rated frequency | 50HZ/60HZ | |||||||||
Phase | Single-Phase | |||||||||
Bypass | Conversion method | Automatic and manual switching | ||||||||
Output | Phase | Single-Phase | ||||||||
Power factor | 0.8 | |||||||||
Voltage accuracy | (110VAC/220VAC/380VAC/440VAC可以选择)±2% | |||||||||
Rated frequency | 105%~150%时 30S To bypass mode, >150%时 300ms Bypass and alarm | |||||||||
Rated frequency | 50HZ/60HZ | |||||||||
Output waveform | Pure sine wave | |||||||||
Peak load ratio | 3:1% | |||||||||
Switching time |
Bypass cut
inverter:≤4ms Boat cut battery:0ms |
0ms | ||||||||
Harmonic distortion | (Linear load≤3%;Non-linear load≤5% | |||||||||
Features | Protection |
Input under-voltage,
input over-current, input over-temperature, input over-current, input short-circuit protection |
||||||||
Communication | Standard RS232, optional RS485 | |||||||||
Dry contact |
Main power supply,
battery discharge, bypass power supply, low battery, low insulation, ESD battery trip, UPS system failure, maintenance bypass, public alarm |
|||||||||
Meter | Output voltage, output current, output insulation meter | |||||||||
Instruction | Operating status indication, sound and light alarm, mute | |||||||||
Charge | Charging mode | Constant current first, then constant voltage | ||||||||
Recharging current | 0.1C~0.15C(Adjust according to battery capacity setting) | |||||||||
Charging time | ≤10 Hours | |||||||||
Battery | Type of battery | Sealed lead-acid surface maintenance battery | ||||||||
Battery voltage | 24VDC | 48VDC | 72VDC | 192VDC | 216VDC | |||||
Battery capacity | 2x60AH | 4x50AH | 6x50AH | 16x38AH | Based on customer's needs | |||||
Backup time | ≥30 Minutes(Can be customized) | |||||||||
Structure |
Box size (WxDxH)mm |
550x320x550 | 600x600x1600 | 500x250x650 | 800x700x2000 | 800x800x2000 | ||||
Weight (kg) | 81 | 210 | 246 | 495 | 325 | 446 | 468 | 539 | 586 | |
Installation method | Wall-mounted | Floor-standing | ||||||||
Protection class | IP22/IP23/(IP44 Can be customized) | |||||||||
Cabinet color | RAL7035(Other colors can be customized) | |||||||||
Environmental parameters | Operating ambient temperature | ‐0℃~+50℃ | ||||||||
Operating environment humidity | 0~95%(Non-condensing) | |||||||||
Cooling method | Forced air cooling | |||||||||
Standards and certifications | Standard | CCS GD22-2015、IEC62040、IEC61000、IEC60068-2 | ||||||||
Certification | CCS Type approval |
Model | 6KVA | 10KVA | 15KVA | 20KVA | 25KVA | 30KVA | 40KVA | |
Operation mode | Double conversion online | |||||||
Isolation method | Transformer isolation | |||||||
Capacity (KW) | 4.8 | 8 | 12 | 16 | 20 | 24 | 32 | |
Input | Rated voltage | (110VAC/220VAC/380VAC/440VAC Can choose)±20% | ||||||
Rated frequency | 50HZ/60HZ | |||||||
Phase | Single-Phase | |||||||
Bypass | Conversion method | Automatic and manual switching | ||||||
Output | Phase | Single-Phase | ||||||
Power factor | 0.8 | |||||||
Voltage accuracy | (110VAC/220VAC/380VAC/440VAC Can choose)±2% | |||||||
Rated frequency | 105%~150%时 30S To bypass mode, >150%时 300ms Bypass and alarm | |||||||
Rated frequency | 50HZ/60HZ | |||||||
Output waveform | Pure sine wave | |||||||
Peak load ratio | 3:1% | |||||||
Switching time | 0ms | |||||||
Harmonic distortion | (Linear load≤3%;Non-linear load≤5% | |||||||
Features | Protection |
Input under-voltage,
input over-current, input over-temperature, input over-current, input short-circuit protection |
||||||
Communication | Standard RS232, optional RS485, SNMP card | |||||||
Dry contact | Main power supply, battery discharge, bypass power supply, low battery, low insulation, ESD battery trip, UPS system failure, maintenance bypass, public alarm | |||||||
Meter | Output voltage, output current, output insulation meter | |||||||
Instruction | Operating status indication, sound and light alarm, mute | |||||||
Charge | Charging mode | Constant current first, then constant voltage | ||||||
Recharging current | 0.1C~0.15C(Adjust according to battery capacity setting) | |||||||
Charging time | ≤10 hours | |||||||
Battery | Type of battery | Sealed lead-acid surface maintenance battery | ||||||
Battery voltage | 192VDC | 216VDC | ||||||
Backup time | ≥30 Minutes(Can be customized) | |||||||
Structure |
Box size (WxDxH)mm |
650x700x2000 | 800x700x2000 | 800x800x2000 | ||||
Weight (kg) | 501 | 331 | 452 | 474 | 545 | 595 | 706 | |
Installation method | Floor-standing | |||||||
Protection class | IP22/IP23/(IP44 Can be customized) | |||||||
Cabinet color | RAL7035(Other colors can be customized) | |||||||
Environmental parameters | Operating ambient temperature | ‐0℃~+50℃ | ||||||
Operating environment humidity | 0~95%(Non-condensing) | |||||||
Cooling method | Forced air cooling | |||||||
Standards and certifications | Standard | CCS GD22-2015、IEC62040、IEC61000、IEC60068-2 | ||||||
Certification | CCS Type approval |
