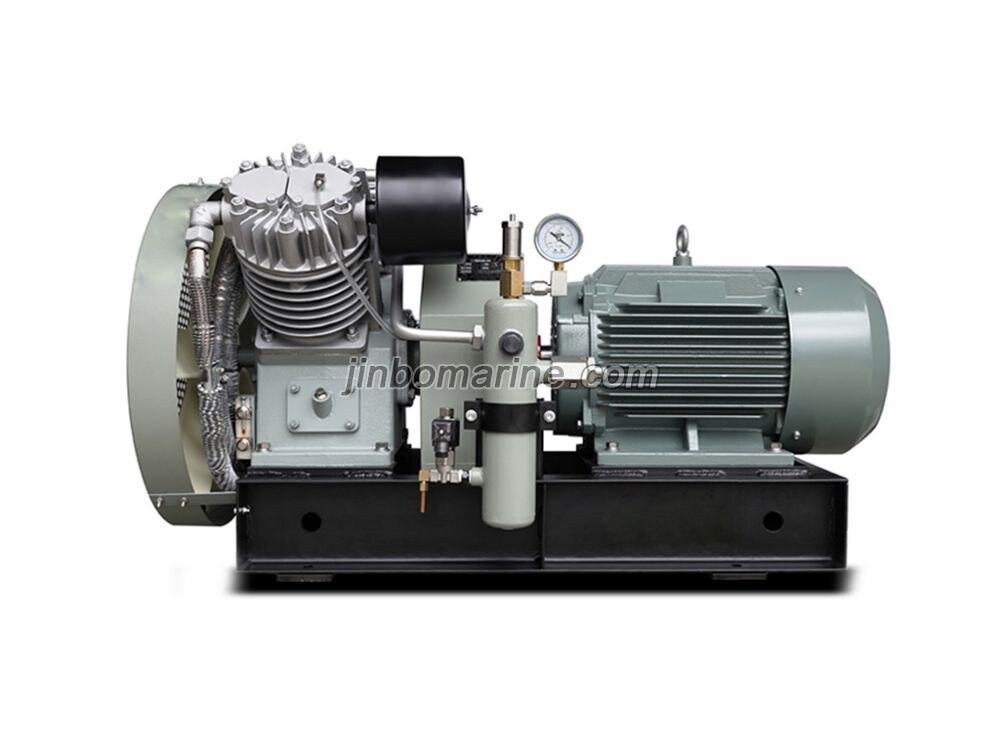

CV-40/30F Middle Pressure Air Cooling Direct Connect Marine Air Compressor

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

1. Air-cooled unit, the compressor head is V-shaped distribution, small volume, low noise,

2. Automatic control, automatic start and stop of high and low pressure, automatic discharge of sewage;

3. Provide the certification of classification society

4. Through air cooling, the cooling effect is good, and the work is stable and reliable.

5. Stable exhaust pressure, low maintenance cost and long service life.

6. Main air compressor for ships

7. The operation is simple, just read the manual to operate.

Technical data:

No. Model Volume flow m3/min Exhaust pressure MPa Power kW Frequency HZ Rated speed r/min Weight kg L x W x H mm
1 CV-30/30F 30 3 7.5 50 970 260 1100x610x640
2 CV-36/30F 36 3 11 60 1170 260 1100x610x640
3 CV-40/30F 40 3 11 50 970 270 1140x610x640
4 CV-45/30F 45 3 11 60 1170 270 1140x610x640
