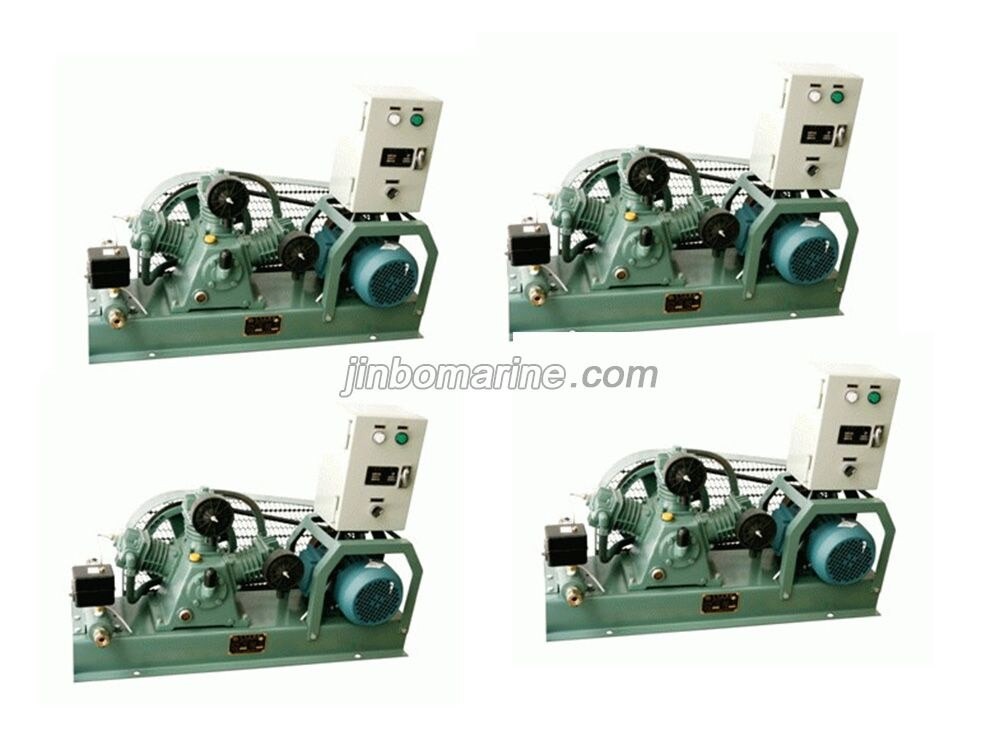

CWF-15/1 Type Marine Low Pressure Air Compressor
- Category:Low Pressure Air Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CWF-15/1 Type Marine Low Pressure Air Compressor:
Models: CWF-15/1
Type: W, air cooled, two stage compression piston
Displacement: 15 m3 / h
The rated pressure: 1.0 MPa
Product features
Type has a single row, V, W, the secondary compression piston.
Low energy consumption, low noise, long service life.
Products with manual/automatic stop, start, and unloading relief function.
Apply to ship whistle, oil and gas stove and ancillary equipment required for air.
Easy to maintenance.
Specification
| Model | Displacement Capacity（m3/h） | Specified | Rotating | Motor Power | Dimension（L×W×H）mm | Weight（kg） | |
| Pressure（MPa） | Speed（r/min） | kW | HP | ||||
| CZF—15/1 | 15 | 1.0 | 1000 | 2.2 | 3 |
900×400×650 |
100 |
