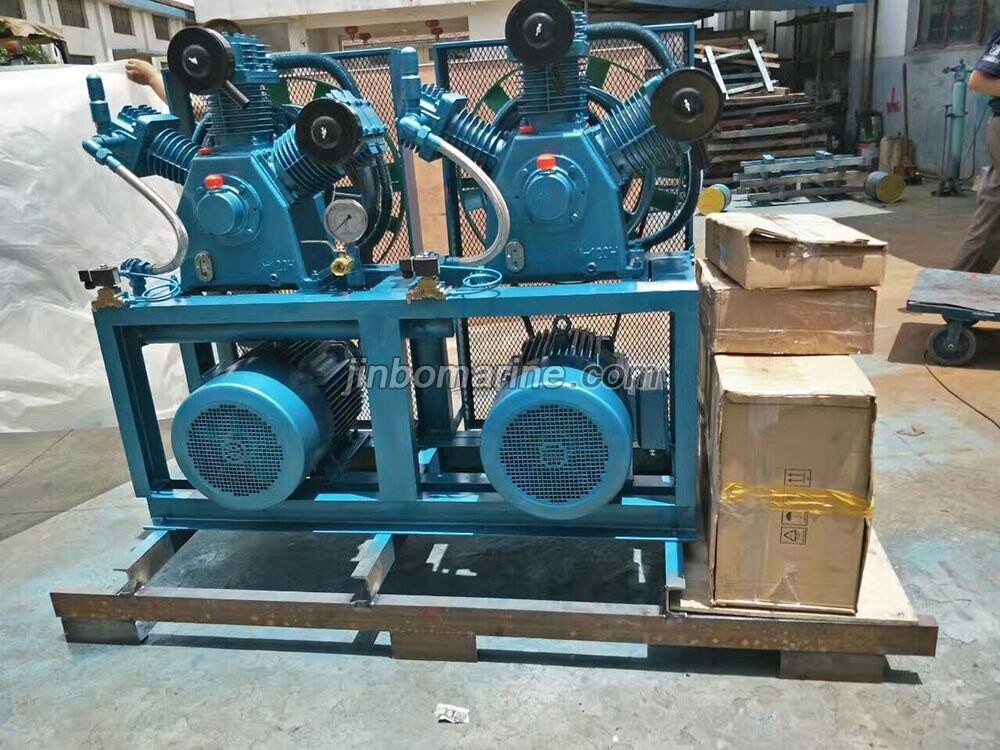

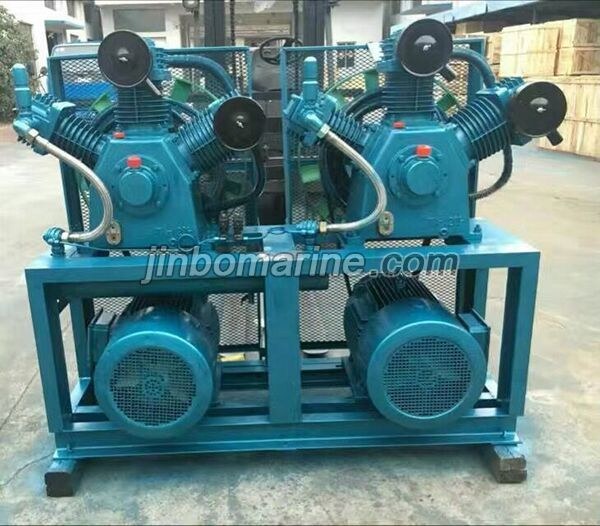

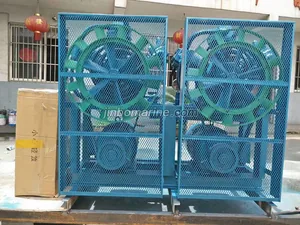

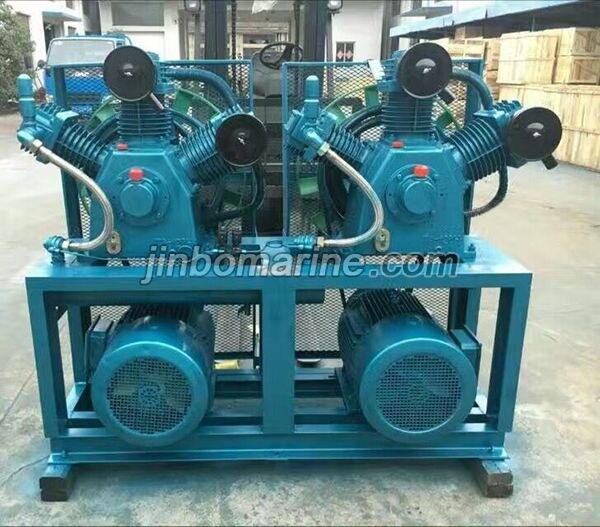

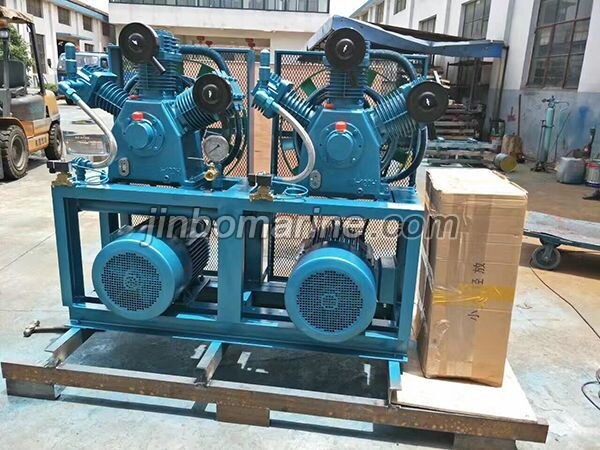

CWF-180/30 Piston Type Medium Pressure Marine Air Compressor

The common base is equipped with an air water separator, a pressure controller, and a battery discharge valve.
It can be equipped with temperature control device, shock absorber outlet and exhaust hose.

The fully controlled unit is equipped with wall hanging electronic control box, which can realize automatic unloading, automatic start, automatic stop, overload of motor, automatic alarm, high temperature and stop function.

Model	Type	Displacement capacity		Rated pressure	Rotate speed	Motor power	Weight	Overall size
		m3/h	m3/min	Mpa	r/min	KW	Kg	mm
CWF-180/30	Three cylinders.	180	3.0	3.0	770	18.5	750	1850x850x1350
	Air-cooled
	Second stage compression.
