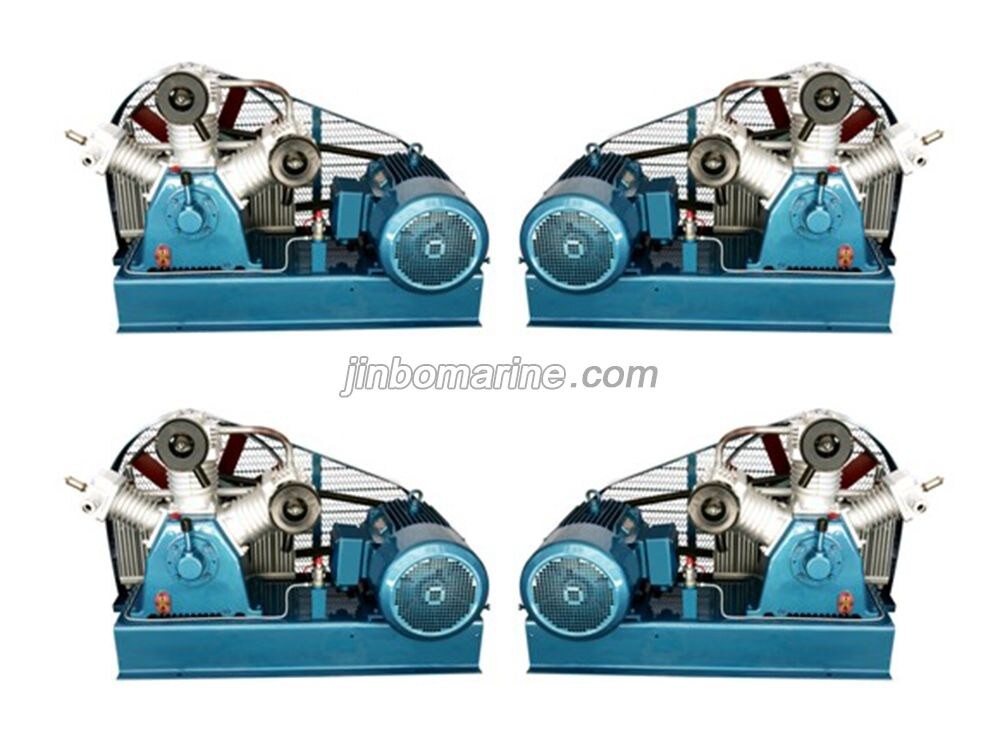

CWF-6030 Medium Pressure Marine air compressor
- Category:
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China CWF-6030 Medium Pressure Marine air compressor:
Model: CWF-60/30 Medium Pressure Marine air
compressor
Type: W, air cooled, two stage compression piston
Displacement: 60 m3 / h
The rated pressure: 3.0 MPa
Product features
With highly efficient, low noise, smooth operation
Apply to ship host and all kinds of Marine diesel engine start, can also be used to start or braking of hydropower equipment, blow molding and rubber products, pressure vessel inspection, hyperbaric oxygen chamber, etc.
It can also be for traffic construction and other industries to provide medium voltage source.
According to the needs of users of products can provide the following functions: two main for the functions of each control, temperature control, inlet pressure controller, exhaust outlet high pressure hose.
Specification
Model | Displacement | Specified Pressure | Rotating Speed | Motor Power | Dimension(L×W×H) | Weight | ||
m3/h | m3/ min | MPa | r/min | kW | HP | mm | kg | |
CWF-60/30 | 60 | 1 | 3.0 | 650 | 15 | 20 | 1310×714×810 | 366 |
